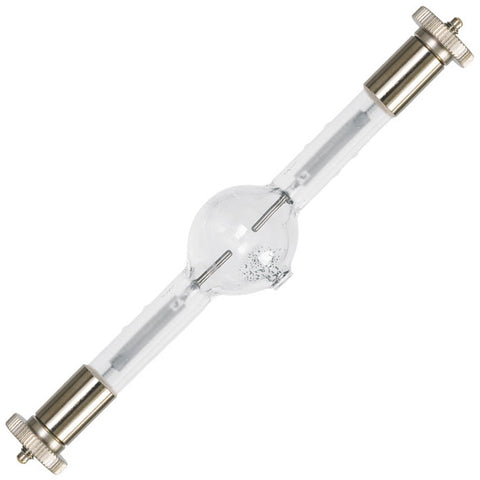

Osram 54268 HTI 1200W/D7/60 SHARXS - 1200W Metal Halide - 6000K - SFc10-4 Base

1,200 watt, metal halide, double ended, 6000K, SharXS lamp series

OSRAM HTI lamps are short arc lamps that provide bright light with high efficiency. They are available in single end, reflector, and double end designs. The SHARXS HTI lamps are special double end lamps that include eXtreme Seal (XS) technology allowing temperatures up to 450°C at the pinch seal. SHARXS lamps are also standardized in both length and base type. The standard SHARXS lamps utilize the SFc-10-4 base and are standardized at a 136mm overall length.

Product features and benefits

• SHARXS lamp family provides consistent lengths and bases for simplified fixture designs
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Consistent lumen output over the life of the lamp
• Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency

Areas of application

• Concert lighting
• Club & Disco
• Stage and theatre
• Studio, TV and film
• Architecture & Architainment

Product Notes

Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.

Lamp is part of the SharXS HTI lamp series. All SharXS HTI lamps are identical in terms of their shape, size, and bases.

Base has notch for pre-alignment.

Lamp bases need to be forced cooled.

Cross Reference Part Numbers

• PHILIPS MSR GOLD 1200 SA/DE 0035862 287144

Equipment Used In

• Chauvet Professional Followspot 1200
• Claypaky Stage Color
• Claypaky Stage Profile
• Claypaky Stage Zoom
• Coemar i-Spot 1200 / 1200 EB
• Coemar ShowColor 1200 EB
• Controlite (Amptown) PML Zoom
• Deliya X-7
• FAL Three-Sixty 1200 Pro
• Fine Art FINE 2000 Spot
• Fine Art FINE 2000 Wash
• Fine Art FINE 3000
• Fine Art V-2002, 2008, 2009
• FutureLight (Steinigke) 1200
• Geni OBY-2000 OUTLINE MOVING HEAD HTI
• Geni OBY-2000 WASH MOVING HEAD HTI
• Geni Stratos
• GLP (German Light Products) Patend Light 1200
• Griven Acrobat PE 1200
• JB Lighting Varycolor 7 1200HMI
• JB Lighting Varyscan 7 1200HMI
• Lampo / Sagitter Sagitter Moving Spot 1200
• Lampo / Sagitter Sagitter Moving Wash 1200
• Lycian Stage Lighting 1275 SUPERSTAR 1.2
• Lycian Stage Lighting M2 1200
• Martin Professional MAC 2000 Beam
• Martin Professional MAC 2000 Profile
• Martin Professional MAC 2000 Wash
• Meteor PROMOVER 1200 CYM
• Pearl River Pilot 1200 Spot
• Pearl River Pilot 1200 Wash
• Proel 1200
• Studio Due Excess XS 1200
• Vari-Lite VL3000 Spot
• Vari-Lite VL3000Q Spot
• Vari-Lite VL3500 Spot
• Vari-Lite VL3500Q Spot
