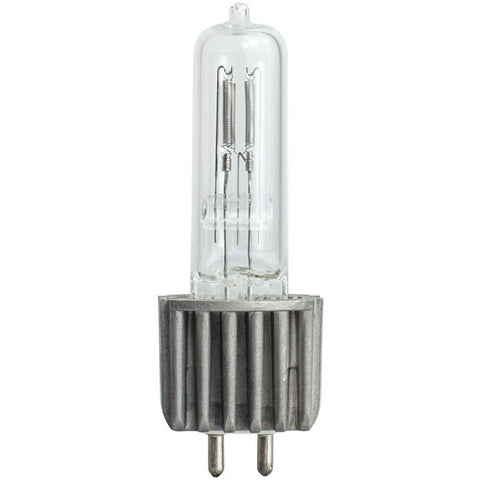

Osram 54703 HPL 575/240/X (UCF) - HPL Series Halogen - 575W - 240V - 11780 Lumens - Long Life
575 watt, tungsten halogen, HPL series, long life
Features & Benefits
- Ultra compact filament design (UCF) for high lumen output
- Unique gas fill which improves light output and minimizes risk of arc-out
- Special heat sink base for maximum durability in high temperature applications
- Reinforced pinch seal for extra mechanical strength
- Foam packaging for easier handling and installation
- Optimum system performance with TP22H socket
Cross Reference Part Numbers
- Osram 54703 HPL 575/240/X (UCF)
- Ushio 1002234 HPL-575/240X+ / JS240V-575WXN
Equipment Used In
- ETC SOURCE FOUR PAR EA PAR64 575W 240V
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Bulb Shape | T6 |
|---|---|
| Color Temperature | 3050 |
| CRI | 100 |
| Diameter (in) | 0.748 |
| Distance (in) | 2.352 |
| Filament | 6-C8 |
| Lamp Type | SINGLE END |
| Length (in) | 4.1 |
| Length max. (in) | 4.1 |
| Light Center Length (in) | 2.352 |
| Lumens | 11780 |
| MOL (in) | 4.1 |
| Operating Position | Any |
| Rated Life Hours | 1500 |
| Type of Current | AC |
| Volts | 240 |
| Watts | 575 |
| Brand | Osram |
|---|---|
| Series | HPL |
| MPN | 54703 |
| Model | HPL 575/240/X (UCF) |
| UPC | 4008321174444 |
| HS Code | 853921 |
