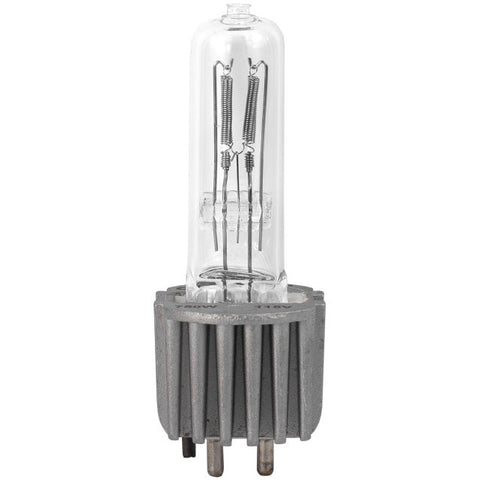

Osram 54704 HPL 750/240/X (UCF) - HPL Series Halogen - 750W - 240V - 15600 Lumens - Long Life
750 watt, tungsten halogen, HPL series, long life
Features & Benefits
- Ultra compact filament design (UCF) for high lumen output
- Unique gas fill which improves light output and minimizes risk of arc-out
- Special heat sink base for maximum durability in high temperature applications
- Reinforced pinch seal for extra mechanical strength
- Foam packaging for easier handling and installation
- Optimum system performance with TP22H socket
Cross Reference Part Numbers
- Osram 54704 HPL 750/240/X (UCF)
- Ushio 1003180 HPL-750/240X+ / JS240V-750WXN
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Bulb Shape | T6 |
|---|---|
| Color Temperature | 3050 |
| CRI | 100 |
| Diameter (in) | 0.748 |
| Distance (in) | 2.352 |
| Filament | 6-C8 |
| Lamp Type | SINGLE END |
| Length (in) | 4.1 |
| Length max. (in) | 4.1 |
| Light Center Length (in) | 2.352 |
| Lumens | 15600 |
| MOL (in) | 4.1 |
| Operating Position | Any |
| Rated Life Hours | 1500 |
| Type of Current | AC |
| Volts | 240 |
| Watts | 750 |
| Brand | Osram |
|---|---|
| Series | HPL |
| MPN | 54704 |
| Model | HPL 750/240/X (UCF) |
| UPC | 4052899246911 |
| HS Code | 853921 |
