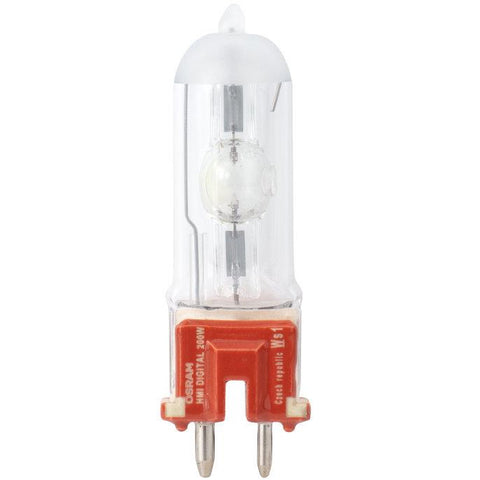

Osram 55072 HMI DIGITAL 200W | 200 Watt, Metal Halide, Gzy9.5 Base, Single End, 6000K, HMI, UVS, UV Stop Quartz
200 watt, metal halide, GZY9.5 base, single end, 6000K, HMI, UVS, UV stop quartz
HMI DIGITAL lamps provide daylight color and are designed to meet the high demands of today's film productions. Offering flicker-free operation on high frequency ballasts, the DIGITAL lamps series can also be used with traditional fixtures. All HMI DIGITAL lamps offer UV-stop technology for enhanced safety.
Product features and benefits
- Reduced flicker when used with high-speed electronic ballasts (up to 1000 Hz and higher)
- Suited for both analog and digital film productions
- High intensity light providing true color performance with a CRI>90
- Capable of hot restrike ignition
- High color stability with average changes in color temperature during lamp life only 1°K/hr
- Dimmable down to 40% with stable color using many electronic ballasts
- High energy efficiency providing up to 100 LPW
- Enhanced safety with UV-Stop (UVS) feature on all DIGITAL types
Areas of application
- Studio, TV and film
- Professional Photography
- Solar Simulation
Product Notes
Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.
UVS=UV-Stop. UVS technology reduces harmful UV-B and UV-C ultraviolet radiation emissions by 99%.
Designed to approximate daylight color temperature (5600K to 6200K) inside of a fixture. Note that color temperature will vary based on the ballast used and its operating frequency.
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Average Rated Life | 200 h |
|---|---|
| Base | GZY9.5 |
| Bulb Shape | T6 |
| Color Temperature | 6900 |
| Cooling | CONVECTION |
| Current (A) | 2.9 A |
| Diameter d (in) | 0.787 in |
| Electrode Gap - cold (mm) | 5 mm |
| Hot Restart | Yes |
| Lamp Type | Metal Halide |
| Maximum Base Temperature (C) | 350 C |
| Maximum Overall Length (in) | 3.15 in |
| Operating Position | Any |
| Volts | 69 |
| Watts | 200 |
| Brand | Osram |
|---|---|
| Series | HMI DIGITAL |
| MPN | 55072 |
| Model | HMI DIGITAL 200W |
| UPC | 4052899984110 |
| HS Code | 853941 |
