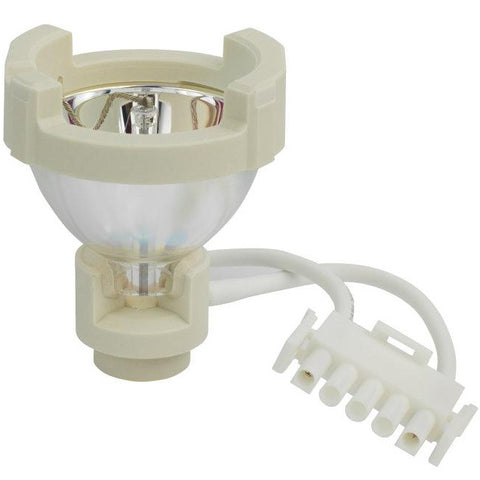

Osram 69120 HXP R 120W/45 C UV | 120W, Short Arc Mercury, w/ Reflector

Osram 69120 HXP R 120W/45 C UV | 120W, Short Arc Mercury, w/ Reflector

  • $588.95
Contact Us for current stock/lead time.

120 watts, short arc mercury, with reflector

OSRAM HBO R and HXP Mercury Short Arc Discharge Lamps (≤ 200W) are intense point sources that provide a broad spectrum through the visible and ultraviolet range. These lamps are optimal sources for fiber illumination devices for Medical, Scientific, and various Industrial areas. The broad spectrum makes these lamps ideal for microscopy applications.

Product Features and Benefits

  • High luminance / radiance with intense point source
  • Broad spectral distribution in the visible and ultraviolet range
  • Enhanced UV characteristics available on some types
  • High arc stability

Areas of Application

  • Microscopy
  • Laboratory & Analysis
  • UV Curing
  • Fiber Illumination
  • Microscopy
  • Solar Simulation

Safety Advice

Due to their high luminance, UV radiation, and high internal pressure in the hot state, HBO and HXP lamps may only be operated in enclosed lamp casings designed for their operation. Since mercury is released if the lamp breaks, special safety precautions must be taken.

Product Notes

p (Operating Position) = Horizontal

125 mm (front ring to plug) and 95 mm (rear cap to plug) silicon cables terminated with MATE-N-LOK plug no. 350809-1 with pins no. 926868-3 by AMP Inc.

It takes time for the mercury in the lamp to evaporate. Typically 95% of luminous output are generated after approximately 120 seconds. For quality inspection purposes allow for five minutes burning time.

Excessive airflow may lead to mercury condensation in the discharge lamp bulb and consequently to a performance drop.

Operation time after which either aperture lumens decrease to 50% of initial value or the lamp voltage reaches 115 V and the lamp cannot be ignited. Switching cycle: 210 minutes on / 30 minutes off.

Operational bulb wall temperatures lower than 850°C may lead to mercury condensation and prevent the lamp from reaching stable operation conditions; temperatures higher than 950°C may lead to premature failures of the lamp.

Output is understood as total energy in the range 320 to 500 nm focusereflector.

About Osram

Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.

Average Rated Life2000 h
Bulb ShapeT67
Current (A)1.4 A
Diameter d (in)2.638 in
Hot RestartYes
Lamp TypeShort Arc Mercury
Maximum Base Temperature (C)0 C
Operating Positionp 20
Volts85
Watts120

ProLampSales Order Code4369537990788
BrandOsram
SeriesHXP
MPN69120
ModelHXP R 120W/45C UV
UPC4050300666525
HS Code853941
