Osram 69818 TP22H 44IN/16GA/UL5359 | Tp22H Socket w/ 44 Inch, 16 AWG Leads - 20ct
($27.59 Each - Sold in Case of 20)

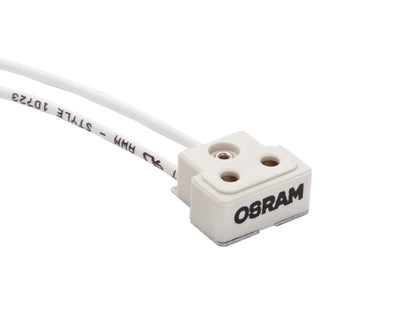

TP22H Socket with 44 inch, 16 AWG leads.
Features & Benefits
- Ceramic housings designed specifically for high temperature halogen and metal halide applications
- High quality contact materials for optimal mechanical and electrical properties
- UL recognized and CE certified
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Body Material | Ceramic Steatite |
|---|---|
| Certifications | RoHS |
| Contact Material | Silver Plated Nickel |

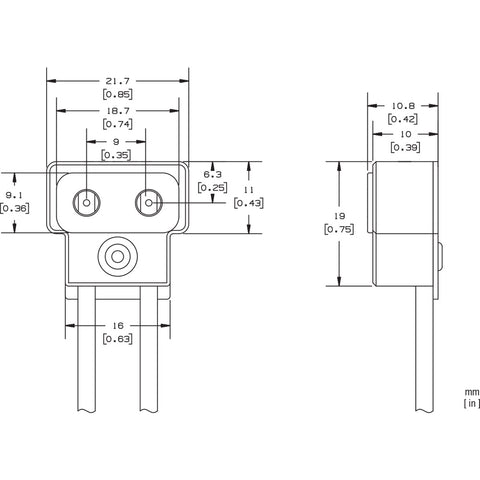

| Height (in) | 0.43 |
| Lamp Base Reference | G9.5, 2-Pin Medium Base |
| Lead Length (in) | 44.2 |
| Lead Strip Length (in) | 0.375 |
| Length (in) | 0.75 |
| Maximum Voltage (V) | 250 |
| Maximum Wattage (W) | 1000 |
| Width (in) | 0.85 |
| Wire Color(s) | White |
| Wire Gauge (AWG) | 16 AWG |
| Wire Insulation | MGT Mica/Glass Tape w/ Fiberglass Jacket |
| Wire Type | UL 5359 |
| Wire Type UL Standard | UL5359 |
| Brand | Osram |
|---|---|
| MPN | 69818 |
| Model | TP22H 44IN/16GA/UL5359 |
| UPC | 4052899184343 |
| HS Code | 853661 |
