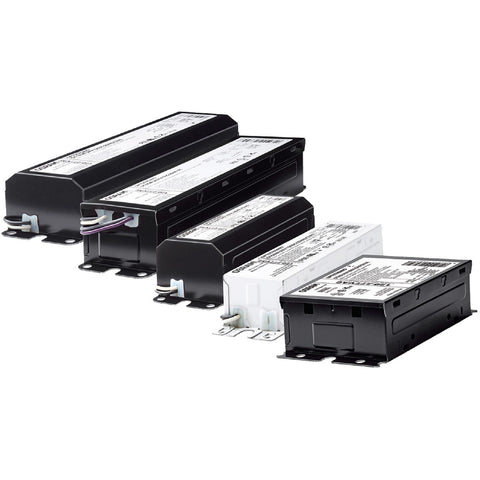

Osram Optotronic OTi50W/UNV/2100C/2DIMLT2/P6 Constant Current LED Driver - 120-277V - 15-55VDC Output Volts - 0-10V Dimming - Programmable

Osram Optotronic OTi50W/UNV/2100C/2DIMLT2/P6 Constant Current LED Driver - 120-277V - 15-55VDC Output Volts - 0-10V Dimming - Programmable

  • $103.95
Contact Us for Lead Time.

The OPTOTRONIC programmable dimmable family consists of highly efficient, constant current LED drivers for outdoor applications. One click programming through the OPTOTRONIC Programmer allows OEMs to configure the output current with 1mA resolution. Also fully customizable by the OEM are the proprietary OSRAM AstroDIM and LEDset features. AstroDIM is autonomous dimming for night-time power reduction based on an internal timer that can be set for an entire year. The LEDset feature automatically sets the output current based on the module that is connected.

These drivers are available in dimming to 1% with built-in 0-10V dimming, enables direct integration and operation with standard dimmers, sensors, as well as energy and light management systems.

DEXAL enables bi-directional communications between the driver and the fixture-integrated component. It provides exact luminaire-specific data, including diagnostics, to light management systems.

Features & Benefits

  • OEM programmable with 1mA resolution to perfectly match LED load and maximize performance
  • Integrated OEM programmable features: AstroDIM, LEDset, Constant lumen maintenance, LED thermal protection, AUX output
  • Programming doesn't requirepowering up or connecting the power supply to AC line voltage
  • High levels of line transient protection for outdoor applications (6kV)
  • 4kV EFT Protection for Industrial Applications
  • Universal Input Voltage 120-277VAC, 50/60Hz
  • UL Damp Rated
  • IP66 Rated
  • UL Class P Listed

Applications

  • Architectural building mounted
  • Bollards
  • Cobra heads
  • Decorative landscape lighting
  • High-mast
  • Industrial high bay
  • Mini wall packs
  • Roadway lighting
  • Shoe box

About Osram

Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.

CertificationscSAus, cULus, RoHS
Dimming0-10V
Driver TypeConstant Current
Input Frequency50/60 Hz
Location RatingDamp and Dry
Output Current Range1000-2100mA
Output Volts15-55 VDC
Volts120-277
Watts50

ProLampSales Order Code6809880723656
BrandOsram
SeriesOptotronic
MPN79278
ModelOTi50W/UNV/2100C/2DIMLT2/P6
UPC046135792786
HS Code854239
