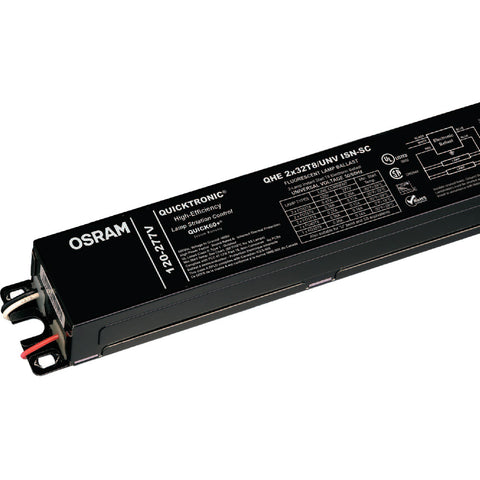

Osram QHE 3X32T8/UNV-ISN-SC-1-CC-B Quicktronic Electronic Instant Start Ballast - 120-277V - 10ct

This product is an Osram QHE 3X32T8/UNV-ISN-SC-1-CC-B Quicktronic electronic instant start ballast. It has an input frequency of 50/60 Hz and a universal 120-277V voltage.

QUICKTRONIC High Efficiency, (QHE) Type CC energy saving electronic T8 ballasts offer major advantages:

Same Light, Less Power! Up to 6% in energy savings compared to standard T8 low power electronic ballasts without compromising light output. Maximum energy savings when compared to F40T12 magnetically ballasted systems

UL Type CC compliant: ballasts utilize a micro-controller based circuit to reduce arcing caused by loose connections or improper lamp pin to socket connections.

Lamp Striation Control (LSC): T8 energy saving lamps should beoperated above 60°F, but under certain conditions the lamps may striate. LSC circuitry may minimize or eliminate this condition; however there are limited applications where LSC circuitry may not entirely mitigate lamp striations. (Please consult lamp manufacturersfor additional details.)

Features

• High Efficiency Systems over 90% efficient
• UL Type CC Rated (Commercial Cabinet)
• Lamp Striation Control (LSC)
• Min. Starting Temp: -20°F (-29°C) for T8 lamps, 60°F (16°C) for Energy Saving T8 lamps, 0°F (-18°C) for FO40T8 lamps
• Flexible De-Lamp Combinations
• QHE ballasts meet the most demanding utility rebate standards
• 30-50% energy savings
• RoHS compliant
• Lead-free solder and manufacturing process

Applications

QUICKTRONIC High Efficiency (QHE) ballasts are ideally suited for:

• UL Type CC
• Refrigerated cases
• Walk-in coolers
• Commercial cabinets
• Display cases
• Applications that could expose lamp and sockets to vibration and potential movement
• Lamp Striation Control (LSC)
• General lighting applications where energy saving T8 lamps may striate, particularly for the F25 energy saving T8 lamps.

T8 energy saving lamps should not be used in applications below 60°F lamp ambient.

System Information

QUICKTRONIC High Efficiency (QHE) System advantages:

• Operate from 120V through 277V
• Eliminates "wrong voltage" errors
• Reduces inventory by 50%
• Utilizes Instant Start operation for Highest System Efficacy
• Low temperature starting capability
• Parallel circuity - keeps remaining lamps lit if one or more go out
• Very low harmonic distortion (<10%) THD
• Operate at >42 kHz to reduce potential interference with infrared control systems
