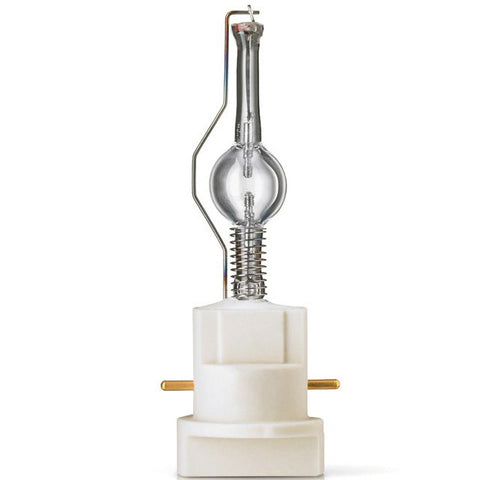

Philips 245977 800W MSR Platinum 35 - 800W Metal Halide - 7350K - PGJX36 Base
This Philips MSR Platinum 35 features over 56,000 lumens of output.
Today's stage designs call for lighting solutions which deliver high brightness and high-contrast beams to avoid shadow creation, as well as more compact luminaire and fixture designs to improve creative choice and design flexibility. Addressing this need, we have developed an incredibly powerful, brilliant and lightweight, compact system for the most amazing light experience – MSR Platinum 35.This lamp system provides a powerful and innovative tool to create intense lighting and delivers the same good light quality as other MSR lamps. The exceptionally short arc generates sparkling, bright light and this ultra-compact design makes the lamp suitable for smaller stage lighting fixtures.
Benefits
- High beam intensity, high brightness
- Freedom to create smaller and lighter fixtures
- High perceived brightness
- Easy and fast lamp replacement
- A long and reliable lifetime
Features
- Very short arc
- Compact system
- High Correlated color temperature
- Philips FastFit technology
- Philips Platinum technology
Applications
- Events
- Shows/Theater
- Touring/Stage
Warning & Safety
A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
Lamp contains mercury. Manage in Accord with Disposal Laws.
Equipment Used In
- Claypaky ALPHA PROFILE 800 ST
- Claypaky ALPHA SPOT 800 QWO
- Claypaky C61380
- Elation PLATINUM PROFILE 35 PRO
- Elation PLATINUM SPOT 35 PRO
- Fine Art FINE 800SF
- PR Lighting XR 800 SPOT
- ROBE Lighting MMX
- Terbly FS800M FOLLOWSPOT
- Terbly PT800P
- Terbly PT800S
- Triton Blue 35R-SPOT
- Vari-Lite VL880
About Philips Lighting
Philips Lighting is a global leader in lighting, known for innovative lighting products and new technology. The company is headquarted in Europe but operates worldwide, serving both business and consumer markets. Philips Lighting comprises all types of lighting products, including LED, automotive, specialty and conventional lighting, controls, electronics, luminaires, and more.
| Bulb Temperature (Max) | 950°C |
|---|---|
| Cap-Base | PGJX36 |
| Cap-Base Information | PGJX36 |
| Color Rendering Index (Nom) | 73 |
| Color Temperature (SO) (Max) | 8050K |
| Color Temperature (SO) (Min) | 6650K |
| Color Temperature (SO) (Nom) | 7350K |
| Dimmable | Yes |
| Ignition Supply Voltage (Min) | 220V |
| Ignition Time (Nom) | 10s |
| Lamp Current (Nom) | 12 |
| Life to 50% Failures (Nom) | 1000h |
| Luminous Efficacy (SO) (Min) | 38lm/W |
| Luminous Efficacy (SO) (Nom) | 42.5lm/W |
| Luminous Flux (Min) | 50760lm |
| Luminous Flux (Nom) | 56400lm |
| Luminous Flux (SO) (Min) | 31500lm |
| Luminous Flux (SO) (Nom) | 36500lm |
| Operating Position | UNIVERSAL |
| Pinch Temperature (Max) | 450°C |
| Power (Rated) (Nom) | 800W |
| Brand | Philips |
|---|---|
| MPN | 245977 |
| Model | MSR Platinum 35 |
| UPC | 8718291120063 |
| HS Code | 853932 |
