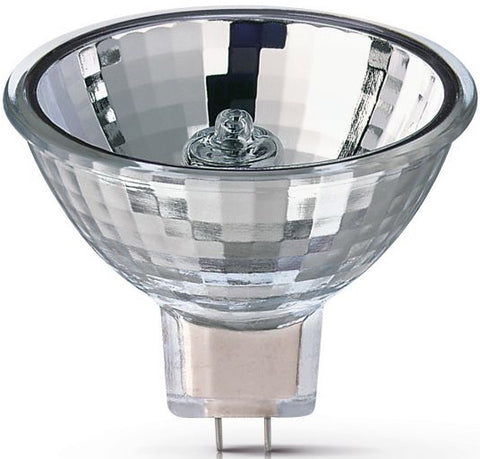

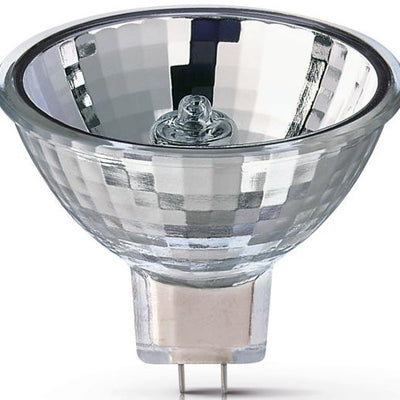

Philips 315093 DDL - 150W 20V Halogen - 6 Pack

Philips halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special blue-filter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.

Benefits

• Optimal light performance
• Remains within temperature limits
• No re-alignment necessary when lamp is replaced

Features

• Excellent distortion-free quartz bulb
• Dichroic coating ensures dissipation of approximately 75% of the generated heat backwards

Applications

• Medical endoscopy
• Industrial endoscopy
• Fiber optic illumination
• Dental curing
• Projection systems
• Microfiche
• Spectrography

Cross Reference Part Numbers

• 3M 78-8012-3601
• American Volpi 23500.014
• Bulbrite 761028 DDL
• Burton Medical 0006004
• Eiko 10146 DDL
• General Electric 43537 DDL
• Grainger 6VM01
• Green Energy Lighting (GELCO) 62010-GEL DDL
• Heine Y-96.11.103
• Kahoku Lighting Solutions (KLS) 62010-KLS DDL Japan
• Nikon 82931
• Olympus VS010
• Osram Sylvania 54660 DDL
• Philips 315093 DDL 13094 150W 20V
• Standard Products 11372 MR-16/150W/20V/2-PIN/GX5.3/DDL
• Sunlite 70010 DDL
• Ushio 1000173 DDL, JCR20V-150W

Equipment Used In

• 3M 70899
• 3M Model 800
• Agfa-Gevaert Select Scan
• Burton Cavatron Hand Held
• Burton Cool Spot Exam Light #0134100
• Burton Medical Bilirubin Blanket
• Dolan Jenner DDL Microscope
• Heine Endoscope 150W for fiber illumination endo, uno & multi
• Medical Illumination Centura
• Meteor Clubscan Barrell 150w
• Meteor Clubscan Flower 150w
• Meteor Probeam Hip 150w
• Micro Design II
• Micro Design Aperture Card Reader II
• Nikon Fiber Optic Illumination Source
• Ohmeda Biliblanket 6600-0680-200
• Ohmeda Spot Phototherapy
• Olympus 3000 Highlight
• Olympus External Stereo Illuminators
• TPR Enterprises DMX-64 (150 Watt)
• TPR Enterprises 150 Watt Fiber Optic Illuminator
• TPR Enterprises High Power (150 Watt)
• Volpe 23500-014
• Ohmeda Infant Warmer
• RH Burton 6004
• Nikon 82931
• Olympus VS-010
• Eastman Kodak Image Link Digital

Applications

• Fiber Optic Illuminator
• Graphic Arts
• Medical Surgical Light
• Microfilm Projector
• Microscope Illuminator
• Phototherapy
• Projector
