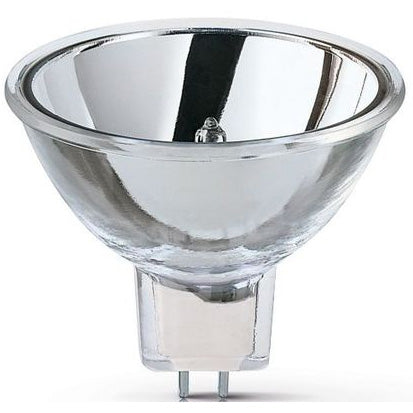

Philips 315929 13629 - Halogen MR16 - 150W - 21V - GX5.3 Base - 24ct
This product is a Philips 410733. It is a 13629 150W GX5.3 21V 1CT/24.
Philips halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special blue-filter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.
Benefits
- Optimal light performance
- Remains within temperature limits
- No re-alignment necessary when lamp is replaced
Features
- Excellent distortion-free quartz bulb
- Dichroic coating ensures dissipation of approximately 75% of the generated heat backwards
Applications
- Medical endoscopy
- Industrial endoscopy
- Fiber optic illumination
- Dental curing
- Projection systems
- Microfiche
- Spectrography
Cross Reference Part Numbers
- ACMI/Circon EKE
- Bausch & Lomb 31-31-52
- Burton Medical 0007006
- Cuda SY0027
- EFOS 3027
- Eiko 10275 EKE
- General Electric 35200 EKE
- Grainger 6VM56
- Green Energy Lighting (GELCO) 62036-GEL EKE
- Imported Lamp Code 143615
- Kahoku Lighting Solutions (KLS) 62036-KLS EKE Japan
- Leitz 902-058
- Nikon 66221
- Norman Lamps EKE 21V 150W
- Osram Sylvania 54842 EKE 93638
- Philips 315929 13629 EKE 150W 21V
- Sci Can LZ EKE
- Sunlite 70110 EKE
- Ushio 1000306 EKE, JCR21V-150W
- Wallaby EKE EKE
Equipment Used In
- ACMI/Circon Model 95
- A-dec Cascade Lite
- Bausch & Lomb Stereozoom Fiber Optic Illuminator (31-30-50-01 thru 31-30-50-05)
- Baxter / V. Mueller 150 Medical
- Burton 244322
- Burton Coolspot
- Burton Coolspot II
- Cole-Parmer 41500-50
- Cuda MT-150
- Den-Mat 3904 Visar II
- Den-Mat Marathon
- Dentsply / Caulk 3027
- Dentsply / Caulk Triad TCU-2
- Dolan Jenner Fiber-Lite 180
- Dolan Jenner Fiber-Lite 181
- Dolan Jenner Fiber-Lite 181-1
- Dolan Jenner Fiber-Lite 360-1 RL
- Dolan Jenner Fiber-Lite A-241
- Dolan Jenner Fiber-Lite A-242
- Dolan Jenner Fiber-Lite DC950H
- Dolan Jenner Fiber-Lite MI-150
- Dolan Jenner Fiber-Lite MI-150R
- Dolan Jenner Fiber-Lite MI-150RA
- Dolan Jenner Fiber-Lite MI-150RB
- Dolan Jenner Fiber-Lite MI-150RC
- Dolan Jenner Fiber-Lite MI-150RD
- Dolan Jenner Fiber-Lite MI-150RG
- Dolan Jenner Fiber-Lite MI-150RL
- Dolan Jenner Fiber-Lite MI-150RU
- Dolan Jenner Fiber-Lite MI-150V
- Dolan Jenner Fiber-Lite MI-152
- EFOS 3027 Dental
- Health Science Pro HSP Fiber Optic
- Karl Suss 605MS031
- Kinetic Instruments Sunlite II
- LaBelle Industries Tutor 16
- Leitz 902-058
- Leitz Fiberoptic Light Source
- Micro Information Systems 301
- Micro Information Systems 303
- Midmark-Ritter 354 Minor Surgery Light
- Nikon 66221
- Nikon 76223
- Ohmeda Blanket
- Penn-Med 200L Wand Medical
- Respironics Wallaby 3
- Sci Can LZ Dual Lux 2
- Sci Can LZ Dual Lux 3
- Sci Can LZ Dual Lux 2 Illuminator
- Sci Can LZ Dual Lux 3 Illuminator
- Technicolor 1000
- Technicolor 1000A
- Technicolor 1000B
- Technicolor 1100
- Technicolor 1300
- Technicolor 1400
- Techniquip FOI-150
- Techniquip Mille Luce
- Techniquip Model 21 AC
- Techniquip Model 21 DC
- Techniquip Technibeam 1000
- Trojan R&D Ultraeye
- Varian 2300CP
- Varian 36749981800
- Wallaby Fiberoptic
- Wallach CH-101
- Zytron NM1-90
- Bausch & Lomb 31-31-52
- National Pizza Corporation REAR-SCREEN-SUPER-8
- Burton Medical 0007006 CoolSpot II
- RH Burton 7006
- Leitz 902058
Applications
- 8mm Movie Projector
- Colposcope
- Dental Intraoral Imaging Systems
- Dental Photo Curing
- Fiber Optic Illuminator
- Fiber Optic Phototherapy (Bilirubin)
- Medical Surgical Light
- Microfilm Projector
- Microscope Illuminator
- Surgery Light
About Philips Lighting
Philips Lighting is a global leader in lighting, known for innovative lighting products and new technology. The company is headquarted in Europe but operates worldwide, serving both business and consumer markets. Philips Lighting comprises all types of lighting products, including LED, automotive, specialty and conventional lighting, controls, electronics, luminaires, and more.
| ANSI Code | EKE |
|---|---|
| Bulb Material | Quartz-UV Open |
| Bulb Temperature (Max) | 900°C |
| Cap-Base | GX5.3 |
| Color Rendering Index (Nom) | 100 |
| Dimmable | Yes |
| Life to 50% Failures (Nom) | 200h |
| Luminous Flux (Rated) (Nom) | 900lm |
| Main Application | Projection |
| Operating Position | Standing +/-90D or Base Down (BDH) |
| Philips Code | 13629 |
| Pinch Temperature (Max) | 400°C |
| Power (Rated) (Nom) | 150W |
| Reflector Finish | Smooth |
| Voltage (Nom) | 21V |
| Working Distance WD | 45mm |
| Brand | Philips |
|---|---|
| MPN | 315929 |
| Model | 13629 150W GX5.3 21V |
| UPC | 8711500410733 |
| HS Code | 853921 |
