Philips 244855 TUV 6W G6T5 - 6W - G5 Base - 9"- 25ct

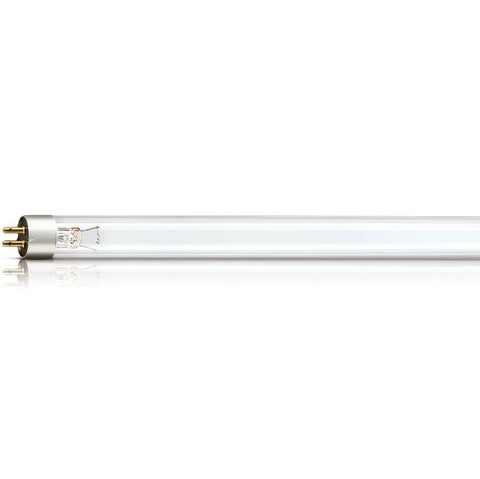

This is a Philips TUV 6W ultraviolet germicidal lamp.

TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.

Benefits

• Security of effective disinfection over the useful lifetime of the lamp
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Good environmental choice because of lowest amount of mercury

Features

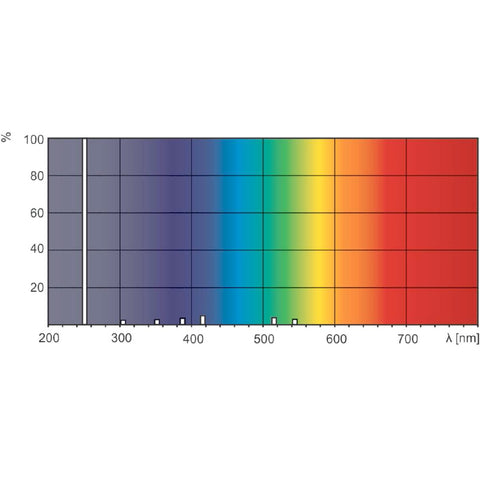

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• Warning sign on lamp indicates that the lamp radiates UVC

Applications

• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond water units
• In-duct air treatment units
• Stand alone air purifiers

Warning & Safety

A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

Lamp contains mercury. Manage in Accord with Disposal Laws.

DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.

Cross Reference Part Numbers

• American Ultraviolet GML195 G6T5
• Atlantic Ultraviolet 05-1109-R G6T5
• Eiko G6T5
• General Electric 15873 G6T5
• Hikari GL-G6T5 G6T5
• Light Sources LTC6T5
• LightTech LTC6T5
• Norman Lamps G4T5
• Norman Lamps G6T5
• Osram Sylvania 23399 G6T5/OF
• Philips 244855 TUV 6W
• Sankyo Denki G6T5
• Ushio 3000015 G6T5

Equipment Used In

• Aquanetics Systems Aquanetics 6
• Aquawinner UV S212T5
• Atlantic Ultraviolet Biolux 6 Watt Strip Fixture
• Atlantic Ultraviolet Biolux NO6G Handheld Fixture
• Atlantic Ultraviolet Biolux NO6GS Stand Fixture
• Champ Design CUV6
• Charm CUV6
• Cole-Parmer UX-09814-27
• Crystal Clear CQE-UV-00101
• Crystal Clear CQE-UV-03101
• Ionic Breeze Desktop Air Purifier w UV Protection
• Ionic Breeze Ionic Breeze Car Air Purifier Model GP
• Purely UV Products PUVLB506
• Sharper Image Desktop Air Purifier w UV Protection
• Sharper Image Ionic Breeze Car Air Purifier Model GP
• Spectroline BLE-6254S
• Spectroline EF-160C
• Spectronics BLE-6254S
• Tropical Marine Centre Pond Clear Advantage UV6
• UVC-Lighting D212T5
• UVC-Lighting S212T5
• UVC-Lighting UV1011
• Vecton UV Pond Clear Advantage UV6
• Ultraviolet Products (UVP LLC) UVAL-58 Mineralight Hand Held
