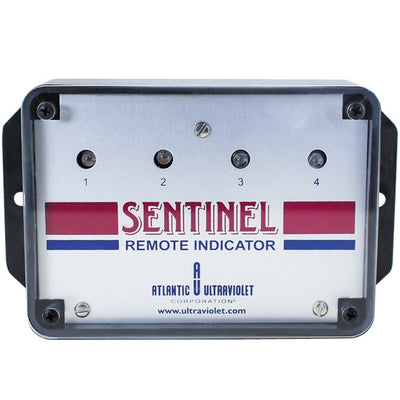

Atlantic UV Sentinel® Complete (4) Lamp Operation Indicator

This product is an Atlantic Ultraviolet 35-4502A4 Sentinel® Complete (4) Lamp Operation Indicator.

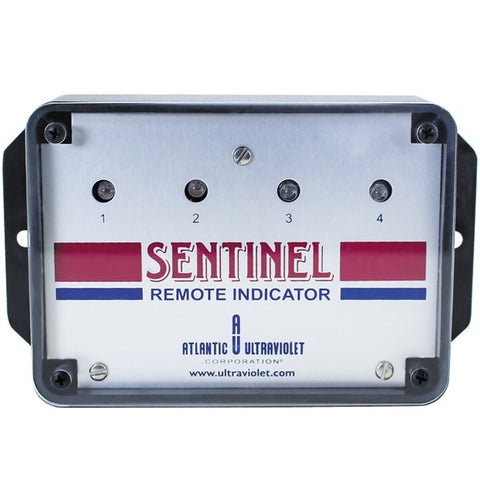

The SENTINEL® Lamp Operation Indicator monitors lamp operation of four lamp ultraviolet fixtures and is equipped with a 25-foot connector cord. Additional 25-foot extensions are available.

The Remote Lamp Indicator can be configured for use with a wide variety of germicidal ultraviolet fixtures and will operate either 120 Volt 56/60 Hertz or 220-240 Volt 50/60 Hertz fixtures using either magnetic or electronic ballasts. The Remote Lamp Indicator mounts on a surface within 25' of an ultraviolet unit. The wires and sensors of the SENTINEL® are connected to the fixtures through holes in the wall of the fixture. The sensors detect the flow of current from the lamps, activating the indicators on the face of the SENTINEL® . When a sensor does not detect a current, its corresponding indicator will not light. For use with various lines of air disinfection equipment.

PLEASE NOTE: Most AeroLogic® units come equipped with SENTINEL® outputs so on this equipment, SENTINEL® can be ordered at any time. For other ultraviolet air disinfection equipment, SENTINEL® must be ordered at the time the original equipment is purchased so that SENTINEL® output can be added.

Equipment Used In

• Atlantic Ultraviolet AeroLogic
• Atlantic Ultraviolet Nutripure
• Atlantic Ultraviolet SaniLight
• Atlantic Ultraviolet Sani-Ray
• Atlantic Ultraviolet Sanitaire
• Atlantic Ultraviolet Tank Master

About Atlantic Ultraviolet

Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
