Atlantic UV 05-1349-R G24T5VH - 25.6W - Single Pin - 538mm - Ozone
Atlantic UV Minimum Order Amount: $75.00

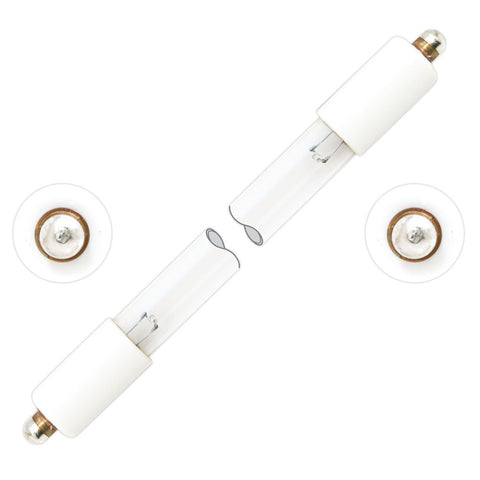

This product is an Atlantic Ultraviolet Instant Start Ultraviolet Lamp. It has a part number of 05-1349-R.
Instant Start germicidal lamps utilize a coil filament on each end which operates hot. Lamp life is governed by the life of the electrodes and is affected by the frequency of starting. Instant Start germicidal lamps are well-suited to applications requiring high ultraviolet intensity such as water sterilization, air purification, in duct systems, and conveyorized product disinfection.
Cross Reference Part Numbers
- Atlantic Ultraviolet Ster-L-Ray 05-1349-R G24T5VH
Equipment Used In
- Atlantic Ultraviolet Monozone Model 2-OZ
- Atlantic Ultraviolet Monozone Model 3-OZ
- Siemens LP4845
- Sunlight LP4845
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
| Base | Single Pin |
|---|---|
| Lamp Type | UV-C Germicidal |
| Length | 538 mm |
| Output | Standard |
| Ozone | Ozone Producing |
| Ozone Output | 2.3 g/hr |
| Qtz. OD | 15 mm |
| Rated Life Hours | 10000 |
| Spectrum | 254nm/185nm |
| Total UV Output | 8.5W |
| Warranty | 12 months |
| Watts | 25.6 |
| Wiring | Instant Start |
| Brand | Atlantic Ultraviolet |
|---|---|
| Series | Ster-L-Ray |
| MPN | 05-1349-R |
| Model | G24T5VH Ozone |
| HS Code | 853949 |
