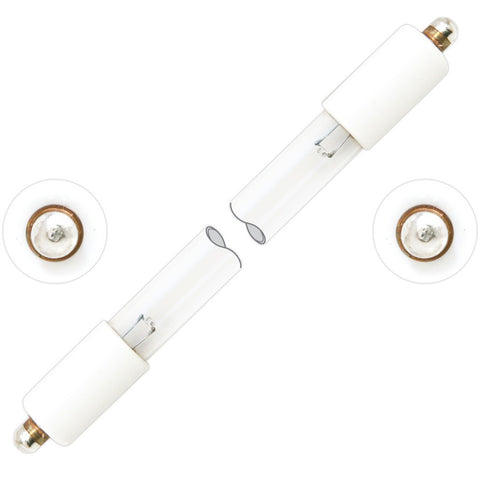

Atlantic UV 05-1343-RV G36T5L - 41W - Single Pin - 843mm - Validated
This product is an Atlantic Ultraviolet Instant Start Ultraviolet Lamp. It has a part number of 05-1343-RV.
Instant Start germicidal lamps utilize a coil filament on each end which operates hot. Lamp life is governed by the life of the electrodes and is affected by the frequency of starting. Instant Start germicidal lamps are well-suited to applications requiring high ultraviolet intensity such as water sterilization, air purification, in duct systems, and conveyorized product disinfection.
Equipment Used In
- Aqua Azul G36-16676
- Aqua Azul L-1-814
- Aquafine 16676 Validated
- Evoqua Water Technologies W2T153924
- Evoqua Water Technologies W2T836562
- Evoqua Water Technologies W2T836572
- UV Doctor 16676
- UV Doctor UVDRX-16676
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
| Base | Single Pin |
|---|---|
| Lamp Type | UV-C Germicidal |
| Length | 843 mm |
| Output | Standard |
| Ozone | Low Ozone |
| Qtz. OD | 15 mm |
| Rated Life Hours | 10000 |
| Spectrum | 254nm |
| Total UV Output | 15W |
| Warranty | 12 months |
| Watts | 41 |
| Wiring | Instant Start |
| Brand | Atlantic Ultraviolet |
|---|---|
| Series | Ster-L-Ray |
| MPN | 05-1343-RV |
| Model | G36T5L VALIDATED |
| HS Code | 853949 |
