Atlantic UV 05-0312 G40T10 - 40W - G13 Base - 48"

12 Month Warranty
  • $105.95
  • $116.75

Contact Us for Lead Time.

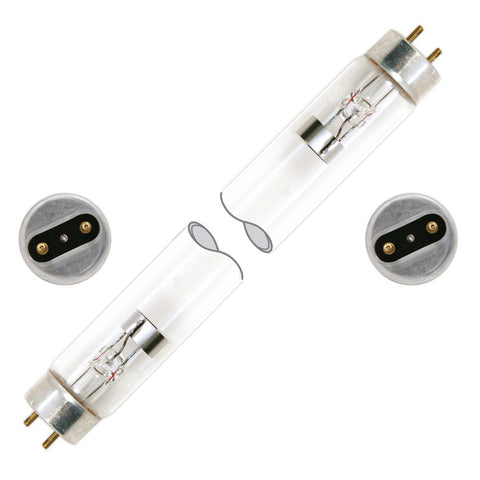

This product is an Atlantic Ultraviolet Hot Cathode Ultraviolet Lamp. It has a part number of 05-0312.

Instant Start germicidal lamps utilize a coil filament on each end which operates hot. Lamp life is governed by the life of the electrodes and is affected by the frequency of starting. Instant Start germicidal lamps are well-suited to applications requiring high ultraviolet intensity such as water sterilization, air purification, in duct systems, and conveyorized product disinfection.

Cross Reference Part Numbers

  • Atlantic Ultraviolet 05-0312 G40T10
  • Eiko G40T10
  • General Electric 15876 G40T10
  • General Electric 29532 G40T10
  • Hikari GL-G40T10 G40T10
  • Sankyo Denki G40T10
  • Ushio 3000315 G40T10 Germicidal UVC, 40W T10

About Atlantic Ultraviolet

Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.

BaseG13 Medium Bi-Pin
Lamp TypeUV-C Germicidal
Length1214 mm
OutputStandard
OzoneLow Ozone
Qtz. OD32.5 mm
Spectrum254nm
Warranty12 months
Watts40
WiringPreheat

BrandAtlantic Ultraviolet
SeriesSter-L-Ray
MPN05-0312
ModelG40T10
HS Code853949
