Atlantic UV 05-1366-R GPH287T5L/4 - 14W - 4-Pin - 287mm
Atlantic UV Minimum Order Amount: $75.00

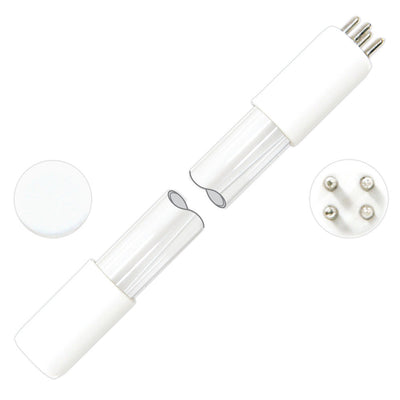

This product is an Atlantic Ultraviolet Preheat Ultraviolet Lamp. It has a part number of 05-1366-R.
Preheat germicidal lamps are operated by a preheat start circuit that employs a relatively compact and economical ballast. The preheat circuit requires four electrical connections per lamp and a slight-to-moderate delay is needed to start the lamp. Some modern electronic ballasts are capable of instant starting a Preheat lamp.
Equipment Used In
- Aero-Logic Aero-12
- Aqua Azul L-1-805
- Aqua Treatment Services ATS4-287
- Aqua Ultraviolet 15 Watt
- Aqua Ultraviolet A20015
- AquaPro Industrial UV1-L
- Atlantic Ultraviolet AeroLogic AERO-12
- Atlantic Ultraviolet Bio-Logic BIO-1.5
- Atlantic Ultraviolet Bio-Logic Pure Water Pack
- Atlantic Ultraviolet MINIPURE MIN-1.5
- Atlantic Ultraviolet MINIPURE MIN-3
- Atlantic Ultraviolet Tank Master TM16
- ATS ATS4-287
- Barnstead LMX13-UV
- Current-USA 15 Watt
- Current-USA UV1411
- Evoqua Water Technologies LF2 - Standard
- Evoqua Water Technologies W2T850794
- Gamma UV 15 Watt
- Gamma UV UV1411
- Glasco UV 1508
- Ideal Horizons 41003
- Ideal Horizons 42002
- Ideal Horizons LBR-4
- Ideal Horizons LBRE-4
- International Water-Guard Industries NPS-A6
- LabStrong LMP13
- Minipure MIN-1.5
- Minipure MIN-3
- Parker-Racor 33-5002
- Parker-Racor VMS-3
- Polaris Scientific UV GL14SE4P
- Polaris Scientific UV UV-2C
- Pureflow PF-LAB-DEO3
- Purely UV Products PUVLF285
- R-Can S1RL
- Siemens LP4130
- Sol-Air Systems ES-SolAire Two
- Sol-Air Systems ES-SolAire Two-2UV
- Sterilight S1RL
- Sunlight LP4130
- Tank Master TM16
- Thermo Fisher Scientific LMX13
- Trojan Technologies 600
- Trojan Technologies 602
- Trojan Technologies 622
- Trojan Technologies 650144
- Trojan Technologies UV 600
- Trojan Technologies UV 601
- Trojan Technologies UV 602
- Trojan Technologies UV 622
- Ultra Dynamics 7001-805
- Ultra Dynamics 8050 UD
- Ultra Dynamics 8101-PP.5
- Ultra Dynamics P1
- Ultra Dynamics S2
- Ultra Dynamics VP-1
- UV Doctor 1111
- UV Doctor UVDRX-1111
- UV Superstore GL287/4
- UV Superstore GPH287/4
- UVC-Lighting D287T5
- UVC-Lighting UV201
- UV-Guard 11018
- Village Marine Tech 33-5002
- Village Marine Tech VMS-3
- Watertec Enterprise LS287T5L
- Watertec Enterprise UV2A
- Watertec Enterprise UV-LS2A.RL
- Watts Water Technologies WUV2
- Watts Water Technologies WUVLAMP2
- Wedeco UV LBRE-4
- Xtra-Fresh Air ES-SolAire Two
- Zapp Pure UV ZP-5
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
| Base | Single Pin |
|---|---|
| Lamp Type | UV-C Germicidal |
| Length | 287 mm |
| Output | Standard |
| Ozone | Low Ozone |
| Qtz. OD | 15 mm |
| Rated Life Hours | 10000 |

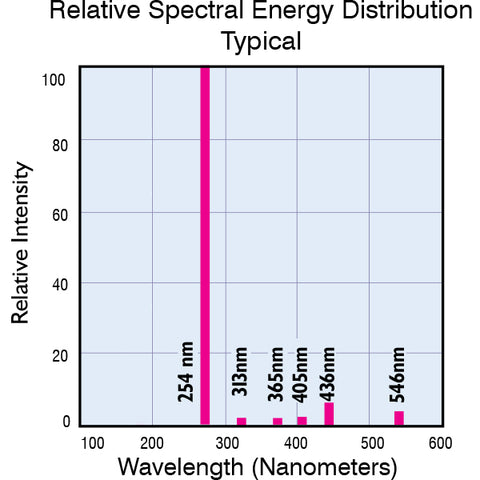

| Spectrum | 254nm |
| Total UV Output | 4W |
| Warranty | 12 months |
| Watts | 14 |
| Wires | 2 |
| Wiring | Preheat |
| Brand | Atlantic Ultraviolet |
|---|---|
| Series | Ster-L-Ray |
| MPN | 05-1366-R |
| Model | GPH287T5L/4 4 Pin |
| HS Code | 853949 |
Documents
There are currently no videos for this product.
Optional Parts & Accessories
Alternative Products
Categories: 4-Pin Base Bulbs, 4-Pin Base UVC Bulbs, Atlantic Ultraviolet
