Atlantic UV 05-0159-R GPH357T5VH - 17W - G5 Base - 357mm - Ozone
Atlantic UV Minimum Order Amount: $75.00

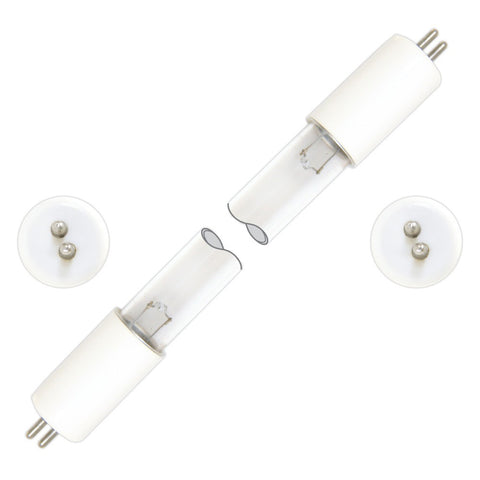

This product is an Atlantic Ultraviolet Preheat Ultraviolet Lamp. It has a part number of 05-0159-R.
Preheat germicidal lamps are operated by a preheat start circuit that employs a relatively compact and economical ballast. The preheat circuit requires four electrical connections per lamp and a slight-to-moderate delay is needed to start the lamp. Some modern electronic ballasts are capable of instant starting a Preheat lamp.
Equipment Used In
- Ideal Horizons 22006
- Ideal Horizons 22023
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
| Base | G5 Mini Bi-Pin |
|---|---|
| Lamp Type | UV-C Germicidal |
| Length | 357 mm |
| Output | Standard |
| Ozone | Ozone Producing |
| Ozone Output | 1.25 g/hr |
| Qtz. OD | 15 mm |
| Rated Life Hours | 10000 |

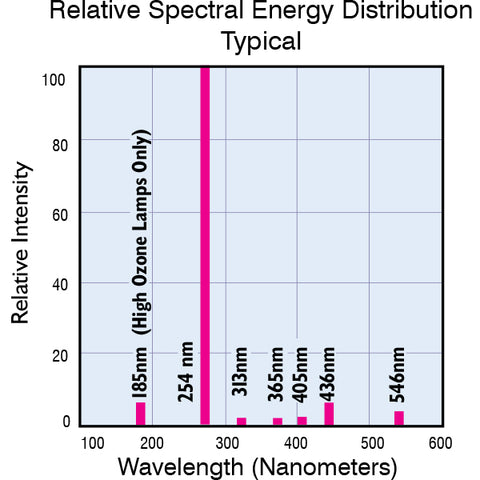

| Spectrum | 254nm/185nm |
| Total UV Output | 5.7W |
| Warranty | 12 months |
| Watts | 17 |
| Wiring | Preheat |
| Brand | Atlantic Ultraviolet |
|---|---|
| Series | Ster-L-Ray |
| MPN | 05-0159-R |
| Model | GPH357T5VH Ozone UV Lamp |
| HS Code | 853949 |
