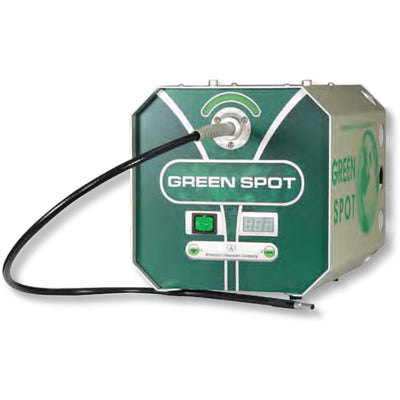

American Ultraviolet Green Spot

The attractive, all anodized aluminum Green Spot is the simple and reliable answer to today's solvent-free manufacturing environment. Assembled with state-of-the-art components, it provides reliable and powerful spot curing every time. Its flexible wand delivers dedicated, concentrated UV spot curing where it's needed, and its compact size (9.75" x 12.5") is ideal for R&D or other manual operations. And a unique "pop-off" lid allows this UV spot cure device to access the lamp reflector assembly, a big feature for intensive manufacturing line operations where downtime maintenance must be kept to a minimum. This feature allows the user to change lamp reflector assemblies in less than a minute.

The Green Spot UV curing system uses an industry standard super-pressure mercury 100-watt lamp, mounted vertically, in a dichroic-coated elliptical reflector to generate an intense, consistent, 5mm spot of light in the UVA, UVB, UVC and visible ranges. Powered by a solid-state, power-regulated power board, the Green Spot maintains 100 watts of continuous power to the lamp. It also features a gravity-close shutter system for safety to the operator and reduced risk of the shutter being stuck in the open position.

Standard Features

• Clean-room-ready (Class 100)
• Total weight under 14 lbs.
• Digital shutter time with foot switch
• Dual-fan cooling system
• 5mm x 1m liquid-filled light guide

About American Ultraviolet

Founded in 1960, American Ultraviolet specializes in a wide range of ultraviolet systems and replacement parts. The company manufacturers UVC germicidal fixtures, UV curing systems, and ultraviolet coating solutions. American Ultraviolet is headquartered in Lebanon, Indiana, and has offices throughout the United States, and manufacturers its products in the USA.
