A1/182 240V LIF Code
A1/182 240V LIF is a T30 lamp with a G17q base operating at 150 watts and 240 volts. It has a color temperature of 2950 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF A1/182 240V lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 150 |
Photometrics | |
| Color Temperature | 2950 |
|---|---|
| Light Center Length (LCL) | 33.3 |
| Lumens | 2700 |
Physical Characteristics | |
| Base | G17q |
|---|---|
| Bulb Shape | T30 |
| Filament | CC-13 |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 76 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | A1/182 240V |
|---|---|
| Code Type | LIF |
| Specification Reference | Class A1 - Projection |
| Equivalents | CTD |

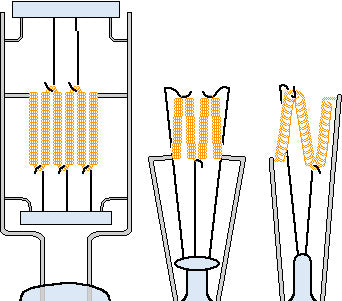

CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
Equipment Used In | ||
| Brand | Model | Type |
| Agfa-Gevaert | Diamator H-18 | |
| Agfa-Gevaert | Diamator H | |
| Leica | Pradix | Projector |
| Leitz | 098-588 | |
