CTD ANSI Code
CTD ANSI is a T10 lamp with a G17q-D24B base operating at 150 watts and 230 volts. It has a color temperature of 2950 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CTD lamps.

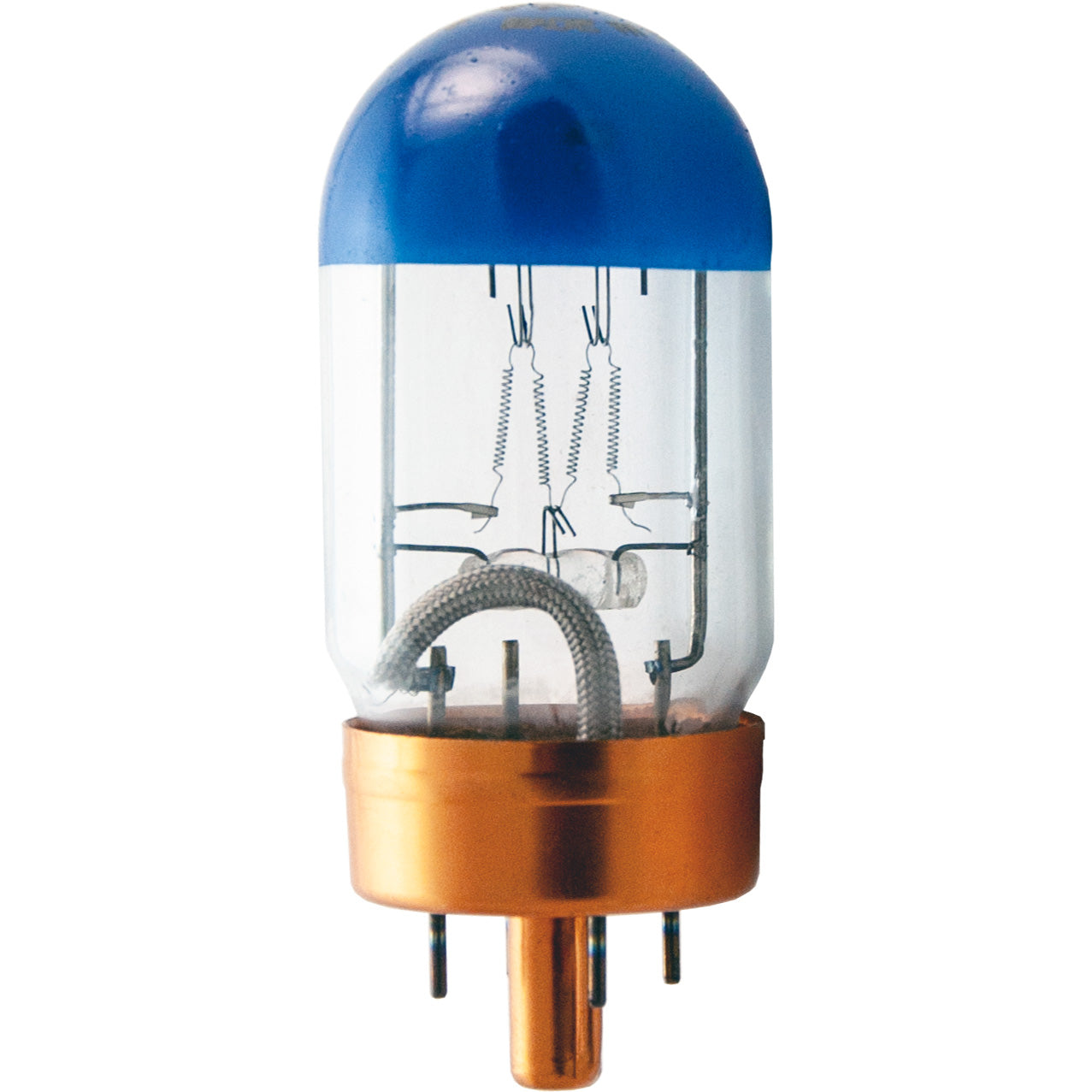

CTD Photograph |
 |
Electrical Specifications | |
| Amps | 0.652 |
|---|---|
| Volts | 230 |
| Watts | 150 |
Photometrics | |
| Candlepower | 250 |
|---|---|
| Color Temperature | 2950 |
| Light Center Length (LCL) | 1 5/16 |
| Lumens | 3200 |
Physical Characteristics | |
| Base | G17q-D24B |
|---|---|
| Bulb Shape | T10 |
| Filament | CC-13 |
| Finish | Obscured top |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CTD |
|---|---|
| Code Type | ANSI |
| Equivalents | A1/182 240V |
Substitution Notes | |
| For 115V Use | BEH/115V/150W |
|---|---|
| For 120V Use | BEH/120V/150W |
| For 125V Use | BEH/125V/150W |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 220-150-31D | ||
| Microlites | 230-150-31H | ||
| Canimpex | 220-150-31D | ||
| Canimpex | 230-150-31H | ||
| Orbitec | 130432 | H 88295 | |
Equipment Used In | ||
| Brand | Model | Type |
| Agfa-Gevaert | Diamator H-18 | |
| Agfa-Gevaert | Diamator H | |
| Leica | Pradix | Projector |
| Leitz | 098-588 | |
