CHK ANSI Code

CHK ANSI is a T8 lamp with a BA15s base operating at 150 watts and 120 volts. It has a color temperature of 2850 Kelvin. It has a Obscured top finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CHK lamps.

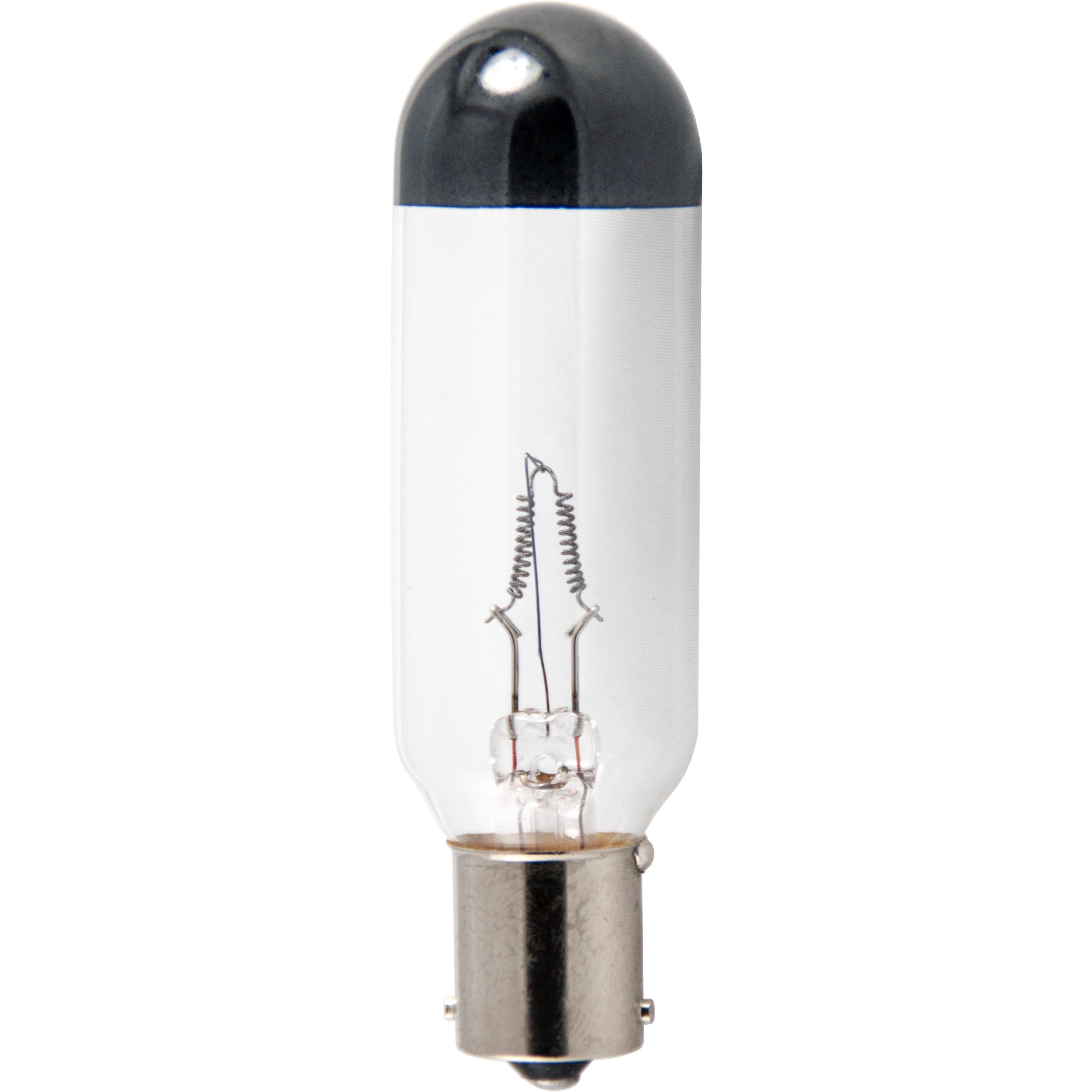

CHK Photograph

CHK

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Candlepower240
Color Temperature2850
Light Center Length (LCL)1 3/8
Lumens2995

Physical Characteristics

BaseBA15s
Bulb ShapeT8
Filament2CC-8
FinishObscured top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours500

General Information
Lamp CodeCHK
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Possible Substitution CEW
Possible Substitution CFC

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

2CC-8 Filament

2CC-8
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-150-04K
Canimpex120-150-04K

CHK may also be listed as:
00820 WIKO031293008206 EIKO1000136 USHIO150-T8-BA15S-120
150-T8-BA15S-120V150-T8-BA15S-C-120 WESTINGHOUSE150-T8-BA15S-C-120V WESTINGHOUSE150-T8-BA15S-CL-120 WESTINGHOUSE
150-T8-BA15S-CL-120V WESTINGHOUSE150-T8-SC-120150-T8-SC-120V150-T8-SC-C-120 WESTINGHOUSE
150-T8-SC-C-120V WESTINGHOUSE150-T8-SC-CL-120 WESTINGHOUSE150-T8-SC-CL-120V WESTINGHOUSE150T8-500BA15S SYLVANIA
150T8-500BA15S120 SYLVANIA150T8-500BA15S120V SYLVANIA150T8-500SC SYLVANIA150T8-500SC120 SYLVANIA
150T8-500SC120V SYLVANIA3129300820 WIKOCHK ANSICHK ASA
CHK BULB-DIRECTCHK EIKOCHK INTERLIGHTCHK SYLVANIA
CHK USHIOCHK WESTINGHOUSECHK WIKOCHK-120 ANSI
CHK-120 ASACHK-120V ANSICHK-120V ASACHK-120V-150W ANSI
CHK-120V-150W ASA
