CZA ANSI Code
CZA ANSI is a T10 lamp with a G17q-A2A base operating at 500 watts and 115 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CZA lamps.

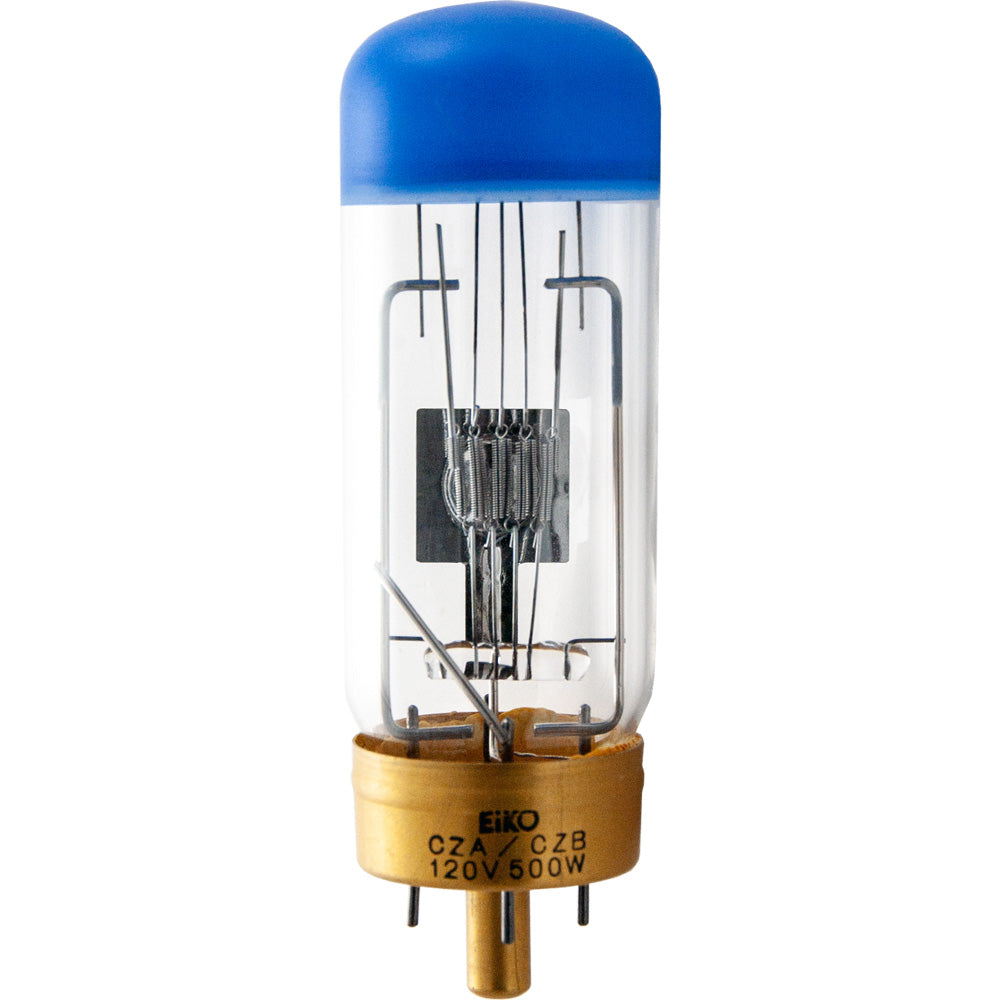

CZA Photograph |
 |
Electrical Specifications | |
| Amps | 4.35 |
|---|---|
| Volts | 115 |
| Watts | 500 |
Photometrics | |
| Candlepower | 910 |
|---|---|
| Color Temperature | 3250 |
| Light Center Length (LCL) | 1 9/16 |
| Lumens | 11900 |
Physical Characteristics | |
| Base | G17q-A2A |
|---|---|
| Bulb Shape | T10 |
| Filament | C-13D |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 4 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CZA |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | CZB |
Substitution Notes | |
| For 230V Use | CZG/230V/500W |
|---|---|
| For 240V Use | CZG/240V/500W |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| General Electric | 29664 | CZA/CZB | |
| Microlites | 120-500-31A | ||
| Canimpex | 120-500-31A | ||
Equipment Used In | ||
| Brand | Model | Type |
| 3M | 625-BGB | |
| 3M | Thermofax Overhead 43 | |
| Airequipt | 3000 Series | |
| Airequipt | Festival 230 | Slide Projector |
| Airequipt | Festival 50 | Slide Projector |
| Airequipt | Autostack 560 | Slide Projector |
| Airequipt | Avventura 380 | |
| Airequipt | Rochelle | Slide Projector |
| Airequipt | 600 Series | |
| Airequipt | 1670 | |
| Airequipt | Autostack 550 | Slide Projector |
| Airequipt | Avventura 360 | |
| Airequipt | Avventura 340 | |
| Airequipt | 1135 | |
| Airequipt | 400 Series | |
| Airequipt | Super Sonic Series A | Slide Projector |
| Airequipt | Sprite 30 | Slide Projector |
| Airequipt | 1635 | |
| Airequipt | Festival 250 | Slide Projector |
| Airequipt | 1660 | |
| Airequipt | 300 Series (newer model) | |
| Airequipt | 4000 Series | |
| Airequipt | 1150 | |
| Airequipt | 900 Series | |
| Airequipt | Sprite 35 | Slide Projector |
| Airequipt | Festival 30 | Slide Projector |
| Airequipt | Autostack 500 | Slide Projector |
| Aldis Brothers Limited | Tutor 500 | Projector |
| Anson Research Co. | Dunning Animatic A (New) | |
| Anson Research Co. | Dunning Animatic B (New) | |
| Apollo | Lumen Master V25 | |
| Apollo | VR-2551 | |
| Apollo | V-8331 | |
| Apollo | V-2551 | |
| Apollo | V-8531 | |
| Applied Sciences | Overview / Overviewer | Overhead Projector |
| Applied Sciences | Adaptalab | Overhead Projector |
| Applied Sciences | Adaptadesk | Overhead Projector |
| Argus | Automatic 538 | |
| Argus | Electromatic 558 | |
| Argus | Executive 580 | |
| Argus | 542-5 | |
| Argus | Electromatic 573 | |
| Argus | 909 | |
| Argus | Electromatic 572 | |
| Argus | Electromatic 543 | |
| Argus | Roundabout 912 | 8mm Projector Movie |
| Argus | Electromatic 541 | Enlarger / Photo Printer |
| Argus | Stack 558 | |
| Argus | Electromatic 570 | |
| Argus | Electromatic 542 | Enlarger / Photo Printer |
| Argus | Electromatic 550 | Enlarger / Photo Printer |
| Argus | Electromatic 538 | Projector Slide / Filmstrip |
| Argus | President 527 | |
| Argus | Roundabout 910 | |
| Argus | Automatic 545 | Microfilm Reader |
| Argus | Automatic 540 | Microfilm Reader |
| Argus | President 526 | |
| Argus | Electromatic 540 | |
| Argus | 910 | |
| Argus | 908 | |
| Argus | Stack 554 | |
| Argus | 523-5 | |
| Argus | 500 | Overhead Projector |
| Argus | 58 | |
| Argus | 524-5 | |
| Argus | Electromatic 560 | |
| Argus | Automatic 541 | |
| Argus | 912 | |
| Argus | Automatic 539 | Microfilm Reader |
| Argus | Holiday 505 | |
| Argus | Electromatic 555 | |
| Atlas Rand Corp. | K-770 | |
| Atlas Rand Corp. | K-900 | |
| Atlas Rand Corp. | K-990 | |
| Atlas Rand Corp. | K-880 | |
| Atlas Rand Corp. | K-660 | |
| Atlas Warner | 500 | |
| Atlas Warner | 500-XL | |
| Bausch & Lomb | Balomatic 676 | |
| Bausch & Lomb | Balomatic 656 | |
| Bausch & Lomb | Balomatic 705 | |
| Bausch & Lomb | Balomatic 767 | |
| Bausch & Lomb | Balomatic 605 | |
| Bausch & Lomb | Balomatic 755 | |
| Bausch & Lomb | Balomatic 655 | |
| Bell and Howell | Slidemaster 947-W | |
| Bell and Howell | 71-OP | |
| Bell and Howell | Filmosound Specialist 562 | |
| Bell and Howell | Autoload 726 | |
| Bell and Howell | Headliner 710-P | |
| Bell and Howell | Specialist Autoload 745-S | |
| Bell and Howell | Slidemaster 974-W | |
| Bell and Howell | Headliner Deluxe 710 | |
| Bell and Howell | Specialist Autoload 745 | |
| Bell and Howell | Headliner Duo 709 | |
| Bell and Howell | Auto | |
| Bell and Howell | Filmosound Specialist 561 | |
| Bell and Howell | Monterey Deluxe 253-RY | |
| Bell and Howell | Specialist Autoload 745A | |
| Bell and Howell | Autoload Filmchain 562-A | |
| Bell and Howell | Headliner Deluxe 710-EXP | |
| Bell and Howell | Specialist Autoload 745C | |
| Bell and Howell | Specialist Autoload 745B | |
| Bell and Howell | Autoload Filmchain 561-A | |
| Bell and Howell | Monterey Deluxe 253-RX | |
| Compco Corp. | Stereo 500 | |
| Eastman Kodak | 500B | |
| Eastman Kodak | Recordak MKG-1 | |
| Eastman Kodak | Supermatic 500 Model A | |
| Eastman Kodak | Brightlight Modules Model B | |
| Eastman Kodak | 500 Model 1 | |
| Eastman Kodak | 502 | |
| Eastman Kodak | Recordak PGR | |
| Eastman Kodak | 500 Model B | |
| Eastman Kodak | Readymatic 503 | |
| Eastman Kodak | Recordak MKG | |
| Eastman Kodak | Supermatic 500 AR | |
| Eastman Kodak | 502B | |
| Eastman Kodak | Brownie 500 Model A-5 | |
| Eastman Kodak | Brownie 500 Model C | |
| Eastman Kodak | 502BX | |
| Eastman Kodak | 500BX | |
| Eastman Kodak | Brightlight Modules 502B | |
| Eastman Kodak | Readymatic 500 | |
| Eastman Kodak | Supermatic 504 | |
| Eastman Kodak | Supermatic 500 | |
| Eastman Kodak | Brightlight Modules 501B | |
| Eastman Kodak | Readymatic 500 Model 1 | |
| Elco Optisonics | Mastermatic | 35mm Projector |
| Elco Optisonics | Mastermatic II | |
| Elmo | 650 | |
| Elmo | 642 | |
| Elmo | 652 | |
| Elmo | Rondelle 100 | |
| GAF (Ansco) | Anscomatic 2 | |
| GAF (Ansco) | Anscomatic R | |
| General Photographic Supply | Tutor 500 | |
| Honeywell | 642 | |
| Honeywell | Rondelle 100 | |
| Honeywell | 652 | |
| Honeywell | 650 | |
| JC Penney | 888 | |
| JC Penney | 666 | |
| JC Penney | 777 | |
| JC Penney | 1000 | |
| JC Penney | 999 | |
| Kalart Victor | Soundstrip BU-2 | |
| Keystone Camera Co. Inc. | K-880 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | 900 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | 770 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-770 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-660 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | Targetronic 990 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | 880 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-900 | Projector Slide / Filmstrip |
| Leitz | Pradovit Color 31-058-530 | |
| Mansfield Industries | Skylark 500 (newer model) | |
| Mansfield Industries | Midway 500 (newer model) | 8mm Projector Movie |
| Mansfield Industries | Holiday 500 (newer model) | |
| Mansfield Industries | Deluxe 500 (newer model) | 8mm Projector Movie |
| Mansfield Industries | Hi-Fi (newer model) | Viewer/Editing |
| Mansfield Industries | Deluxe (newer model) | Viewer/Editing |
| Mansfield Industries | Hi-Fi Deluxe (newer model) | Viewer/Editing |
| Mansfield Industries | Holiday 500 | |
| Mast Development | Random Access 136-ST | |
| Miranda | Auto-Sensor | |
| Ozalid | Porta-Lite 10 | Projector Opaque / Transparency |
| Ozalid | Porta-Lite 7 | Projector Opaque / Transparency |
| Quick-Set | 505 | |
| Realist | 990 | |
| Revere Camera Co. | 435 Sound Slide | Projector Slide / Filmstrip |
| Revere Camera Co. | 835 Wollensak | Projector Slide / Filmstrip |
| Sawyer's Inc. | Rotomatic | Projector |
| Sawyer's Inc. | Deluxe | Projector |
| Sawyer's Inc. | Special | Projector |
| Sears Roebuck | 9865 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 1860 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 9885 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9847 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9880 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 1850 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 500 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 1850 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9890 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9888 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9870 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 9872 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9870 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 1860 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9895 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9880 TOWER | Projector Slide / Filmstrip |
| Singer Corporation | School Master 100 | |
| Singer Corporation | School Master 102 | |
| Singer Corporation | School Master 500 | |
| Spindler & Sauppe | Selectroslide 96 | Projector Slide / Filmstrip |
| Spindler & Sauppe | Selectroslide Spectrum 96 | Projector Slide / Filmstrip |
| Spindler & Sauppe | Spectrum 96 | Projector Slide / Filmstrip |
| Standard Projector & Equipment | 55-RR-2A | |
| Standard Projector & Equipment | 500-RR-2-A | Projector Slide / Filmstrip |
| Viewlex | V-852 | |
| Viewlex | VHA-27R | |
| Viewlex | V-853 | |
| Viewlex | V-27 | |
| Viewlex | Cine Sound | Projector Slide / Filmstrip |
| Viewlex | Lumen Master V-25 | Viewer/Editing |
| Viewlex | VH-27 | |
| Viewlex | Sight & Sound | Projector Slide / Filmstrip |
| Wollensak Optical | Wollensak 835 | Slide / Filmstrip Projector |
CZA may also be listed as: | |||
| 01100 EIKO | 01100 UPC | 01100 WIKO | 01110 WIKO |
| 031293011008 EIKO | 031293412041 EIKO | 048777110294 UPC | 1000156 BLV |
| 1000156 USHIO | 11362 STANDARDPRO | 29664 GENERAL-ELECTRIC | 29664-1 GENERAL-ELECTRIC |
| 29664-9 GENERAL-ELECTRIC | 3129301100 WIKO | 4123510 | 43168991407 |
| 43168991407UPC STANDARDPRO | 500WATT-T10-G17Q-1 SYLVANIA | 6294-C PHILIPS | 6294-C-CZA-CZB PHILIPS |
| 6294C | 6294C-120V PHILIPS | 6294C-CZA/CZB BULBDIRECT | 705673 BELL-HOWELL |
| 73420 OSRAM | 78-8006-3170 3M | 78-8454-3457 3M | 78-8454-3457-6 3M |
| 8693 TOWER | A1-205-115V-500W-G17Q LIF | A1-205-120 VOLT ATLAS | A1-205-120 VOLT LIF |
| A1-205-120 VOLT THORN | A1-205/115V/500W | A1-205/115V/500W ATLAS | A1-205/115V/500W LIF |
| A1-205/115V/500W THORN | A1/205 THORN | A1/205-115V-500W-G17Q-T38-C13D-OBSCURED-TOP-25H-VBD-103MMMOL-39.7MMLCL-I-PROXIMITY-REFLECTOR-FORCED-COOLING-NECESSARY | A1/205-120 VOLT |
| BW-CZA-CZB | BW-CZA-CZB-GE | CZA ANSI | CZA ASA |
| CZA DAMAR | CZA FUJI-OPTICAL-SYSTEMS | CZA GENERAL-ELECTRIC | CZA HIDSI |
| CZA INTERLIGHT | CZA MICROLAMP | CZA PHILIPS | CZA SYLVANIA |
| CZA USHIO | CZA WESTINGHOUSE | CZA WIKO | CZA-115V/115V/500W/G17Q ANSI |
| CZA-120 VOLT ANSI | CZA-120 VOLT ASA | CZA-120V ANSI | CZA-120V ASA |
| CZA-120V-500W | CZA-120V-500W ANSI | CZA-120V-500W ASA | CZA-120V-500W-G17Q-7 USHIO |
| CZA-120V-500W-G17Q-T-10-C-13D-GOLD/BLUE-TOP-11900L-3250K-25H-BD-4MOL-1-9/16LCL-I-SLIDE-PROJECTOR-PROXIMITY-REFL.-CLEAR-LUMENS-HIGH | CZA-120V-500W-G17Q-T10-C13D-GOLD/BLUE-TOP-11900L-3250K-25H-BD-4MOL-1-9/16LCL-I-SLIDE-PROJECTOR-PROXIMITY-REFL-CLEAR-LUMENS-HIGH | CZA-120V/120V/500W/G17Q ANSI | CZA-125V ANSI |
| CZA-125V ASA | CZA-125V-500W ANSI | CZA-125V-500W ASA | CZA-125V/125V/500W/G17Q ANSI |
| CZA-125VOLT ANSI | CZA-125VOLT ASA | CZA-25HOURS SYLVANIA | CZA-5 ANSI |
| CZA-5 ASA | CZA-5-CZB-5 ANSI | CZA-5-CZB-5 ASA | CZA-500W-120V-G17Q-7 USHIO |
| CZA-500WATT GENERAL-ELECTRIC | CZA-CZB ANSI | CZA-CZB ASA | CZA-CZB EIKO |
| CZA-CZB SYLVANIA | CZA-CZB WESTINGHOUSE | CZA-CZB WIKO | CZA-CZB-5 |
| CZA-CZB-LONG-LIFE | CZA-CZB/T10-120V-500W-TRUFOCUS LAMPTECH | CZA-LONG-LIFE | CZA/115V/500W/G17Q ANSI |
| CZA/120V GENERAL-ELECTRIC | CZA/120V/500W/G17Q ANSI | CZA/125V GENERAL-ELECTRIC | CZA/125V/500W/G17Q ANSI |
| CZA/CZB BULB-DIRECT | CZA/CZB INTERLIGHT | CZA/CZB LAMPTECH | CZA/CZB MICROLAMP |
| CZA/CZB OSRAM | CZA/CZB PHILIPS | CZA/CZB STANDARDPRO | CZA/CZB USHIO |
| CZA/CZB-120V ANSI | CZA/CZB-120V GENERAL-ELECTRIC | CZA/CZB-120V-500W-G17Q-7 USHIO | CZA/CZB-125V ANSI |
| CZA/CZB-125V GENERAL-ELECTRIC | CZA/CZB-5 INTERLIGHT | CZA/CZB-5 WIKO | CZA/CZB-500W-120V-G17Q-7 USHIO |
| CZA/CZB-GE | CZA/CZB-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13D-3300K-25H-BD-1000156 BLV | CZA/CZB-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13D-3300K-25H-BD-1000156 USHIO | CZA5/125V/500W/G17Q ANSI |
| G17Q7-500W-CZA/CZB-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13D-3300K-25H-BD-1000156 BLV | G17Q7-500W-CZA/CZB-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13D-3300K-25H-BD-1000156 USHIO | I/115V/500W/G17Q-A2A/T10/C13D/OT/25H | I/115V/500W/G17Q-A2A/T10/C13D/OT/25H/CZA-115V |
| I/115V/500W/G17Q-A2A/T10/OT/25H | I/115V/500W/G17Q-A2A/T10/OT/25H/CZA-115V | I/115V/500W/G17Q/T10/C13D/39MMLCL/OT/25H/SP500T10G17QC13DOT115V | I/115V/500W/G17Q/T10/C13D/OT/25H/CZA-115V |
| I/115V/500W/G17Q/T10/OT/25H/CZA-115V | I/115V/500W/G17Q/T12/C13D/OT/25H | I/115V/500W/G17Q/T12/C13D/OT/25H/A1-205-115V-500W-G17Q LIF | I/120V/500W/G17Q-A2A/T10/C13D/OT/25H/CZA-120V |
| I/120V/500W/G17Q-A2A/T10/OT/25H/CZA-120V | I/120V/500W/G17Q/T10/C13D/OT/25H/CZA-120V | I/120V/500W/G17Q/T10/OT/25H/CZA-120V | I/120V/500W/G17Q/T10/PHOTO |
| I/125V/500W/G17Q-A2A/T10/C13D/OT/25H/CZA-125V | I/125V/500W/G17Q-A2A/T10/OT/25H/CZA-125V | I/125V/500W/G17Q/T10/C13D/OT/25H/CZA-125V | I/125V/500W/G17Q/T10/OT/25H/CZA-125V |
| INC-120V-500W-C13D-25HR/120V/500W/G17Q-7/CZA/CZB USHIO | INC-120V-500W-C13D-25HR/CZA/CZB USHIO | KP-TFM-10-100-120 VOLT-500WATT | KP-TFM-10-CZA-CZB KONDO |
| SP500T10G17Q-A2AC13DOT115V | SP500T10G17Q-A2AOT115V | SP500T10G17QA2AC13DOT115V-CZA-115V | SP500T10G17QA2AC13DOT120V-CZA-120V |
| SP500T10G17QA2AC13DOT125V-CZA-125V | SP500T10G17QA2AOT115V-CZA-115V | SP500T10G17QA2AOT120V-CZA-120V | SP500T10G17QA2AOT125V-CZA-125V |
| SP500T10G17QC13DOT115V | SP500T10G17QC13DOT115V-CZA-115V | SP500T10G17QC13DOT120V-CZA-120V | SP500T10G17QC13DOT125V-CZA-125V |
| SP500T10G17QOT115V | SP500T10G17QOT115V-CZA-115V | SP500T10G17QOT120V-CZA-120V | SP500T10G17QOT125V-CZA-125V |
| T-10/500W/120V/G17Q/CZA/CZB STANDARDPRO | |||
