CZG ANSI Code

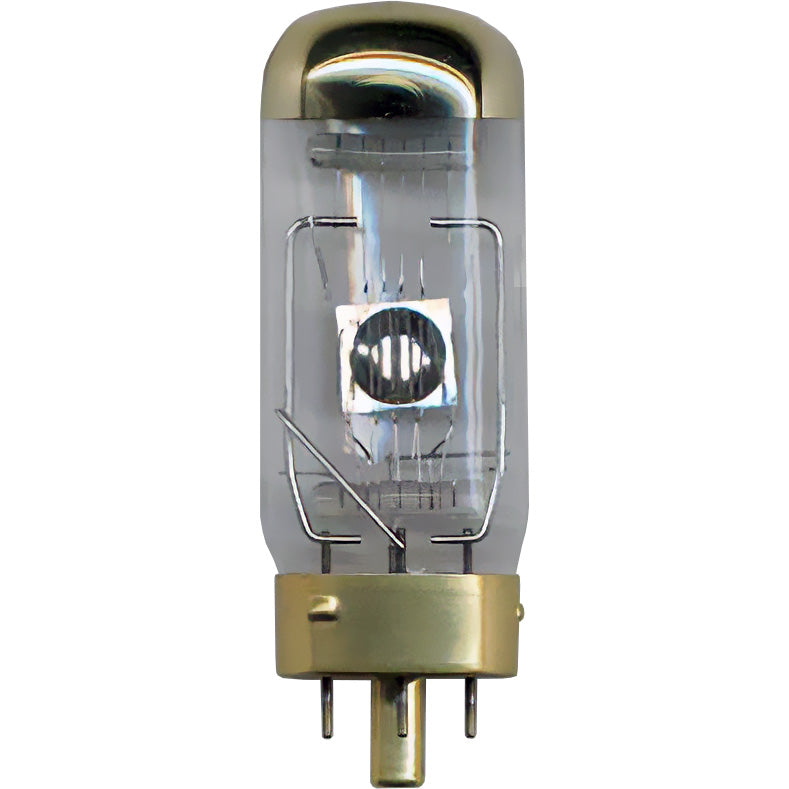

CZG ANSI is a T10 lamp with a G17q-A2A base operating at 500 watts and 230 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CZG lamps.

Electrical Specifications

Amps2.17
Volts230
Watts500

Photometrics

Candlepower910
Color Temperature3250
Light Center Length (LCL)1 9/16
Lumens14500

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT10
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCZG
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 120V Use CZA/120V/500W

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites230-500-31-S
Canimpex230-500-31-S

Equipment Used In

BrandModelType
Eastman Kodak Brightlight Modules 500BX
Eastman Kodak 500 (230 Volt)
Eastman Kodak Brightlight Modules Model BX
Eastman Kodak 502BX (230 Volt)
Eastman Kodak Supermatic 500 AR (230 Volt)
Eastman Kodak Brightlight Modules 502BX
Eastman Kodak 500BX (230 Volt)
Eastman Kodak 502 (230 Volt)
Eastman Kodak 502BX
Eastman Kodak 500BX
Leitz 043-144
Nikon 84125
Olympus OL8-C406
Sawyer's Inc. Rotomatic 600-A Projector
Sawyer's Inc. Rotomatic 737-AQ Projector
Sawyer's Inc. Rotomatic 717-A Projector
Sawyer's Inc. 500-R Projector
Sawyer's Inc. 500-S Projector
Sawyer's Inc. RF Projector
Sawyer's Inc. Crestline 550-R Projector
Sawyer's Inc. Rotodisc 500-XM Projector
Sawyer's Inc. Grand Prix 570-R-1 Projector
Sawyer's Inc. Viceroy M-1 Projector
Sawyer's Inc. ER Projector
Sawyer's Inc. S Projector
Sawyer's Inc. Rotomatic 600 Projector
Sawyer's Inc. Viceroy M-3 Projector
Sawyer's Inc. EE Projector
Sawyer's Inc. Rotodisc 500-XR Projector
Sawyer's Inc. 500-EE Projector
Sawyer's Inc. Crestline 501 Projector
Sawyer's Inc. 500-T Projector
Sawyer's Inc. R Projector
Sawyer's Inc. Rotomatic 707-AQZ Projector
Sawyer's Inc. Crestline AF-8 Projector
Sawyer's Inc. Crestline 505 Projector
Sawyer's Inc. 500-700-A-1 Projector
Sawyer's Inc. Crestline 503 Projector
Sawyer's Inc. Rotoshow 701 Projector
Sawyer's Inc. Crestline 550-RF Projector
Sawyer's Inc. 700-A-1 Projector
Sawyer's Inc. T Projector
Sawyer's Inc. Grand Prix 570-M Projector
Sawyer's Inc. 500-ER Projector
Sawyer's Inc. 700-AL Projector
Sawyer's Inc. Crestline 550-R-1 Projector
Sawyer's Inc. Crestline A Projector
Sawyer's Inc. Deluxe Projector
Sawyer's Inc. RI Projector
Sawyer's Inc. Rotomatic 707-AQ Projector
Sawyer's Inc. Crestline Deluxe Projector
Sawyer's Inc. Rotomatic 700 Projector
Sawyer's Inc. Rotomatic 700-A Projector
Sawyer's Inc. 500-R-1 Projector
Sawyer's Inc. 500-A Projector
Sawyer's Inc. Crestline 550-A Projector
Sawyer's Inc. Special Projector
Sawyer's Inc. Crestline 550-ER Projector
Sawyer's Inc. 500-RF Projector
Sawyer's Inc. Grand Prix 570-AF Projector
Sawyer's Inc. Crestline Special Projector
Sawyer's Inc. Grand Prix 570-R Projector
Sawyer's Inc. Crestline R-6 Projector
Sawyer's Inc. Viceroy M-4 Projector
Sawyer's Inc. Rotomatic 727-AQ Projector
Sawyer's Inc. Crestline C Projector

CZG may also be listed as:
3043-1440 LEITZ/LEICA500-T10-G17Q-1-HIGH-VOLTAGE SYLVANIA500-T10-TF-1-HIGH-VOLTAGE SYLVANIA500-T10-TRUE-FOCUS-1-HIGH-VOLTAGE SYLVANIA
500T10G17Q/OT/230V500T10TF/OT/230V500W/T10/G17Q/OT/230V500WATT-T10-G17Q-1-HIGH-VOLTAGE SYLVANIA
512719-A BELL-HOWELL6282-C-230 PHILIPS6282-C-230V PHILIPS6282-C-CZG PHILIPS
6282C/05 PHILIPS6294C-240 PHILIPS6294C-240/240V/500W/G17Q/T33MM/39.7MMLCL/PR/OT/103MMMOL/25H PHILIPS6294C-240V PHILIPS
6294C/240V/500W/G17Q/T10/39.7MMLCL/PR/OT/103MMMOL/25H PHILIPS6294C/240V/500W/G17Q/T33MM/39.7MMLCL/PR/OT/103MMMOL/25H PHILIPS6294C/CZG-ANSI PHILIPS78-8006-3139 3M
A1-205 ATLASA1-205 LIFA1-205 THORNA1-205-230V LIF
A1-205-240V-500W-G17Q LIFA1-205/240V/500WA1-205/240V/500W ATLASA1-205/240V/500W LIF
A1-205/240V/500W THORNA1/205A1/205-240V-500W-G17Q-T38-C13D-OBSCURED-TOP-25H-VBD-103MMMOL-39.7MMLCL-I-PROXIMITY-REFLECTOR-FORCED-COOLING-NECESSARYCZG ANSI
CZG ASACZG GENERAL-ELECTRICCZG SYLVANIACZG USHIO
CZG WESTINGHOUSECZG-230 ANSICZG-230 ASACZG-230V ANSI
CZG-230V ASACZG-230V-500WCZG-230V-500W ANSICZG-230V-500W ASA
CZG-230V-500W-G17Q-T-10-C-13D-OBSCURED-TOP-14500L-3250K-25H-BD-4MOL-1-9/16LCL-I-PROXIMITY-REFL.-CLEAR-LUMENS-HIGHCZG-230V-500W-G17Q-T10-C13D-OBSCURED-TOP-14500L-3250K-25H-BD-4MOL-1-9/16LCL-I-PROXIMITY-REFL-CLEAR-LUMENS-HIGHCZG-230V/230V/500W/G17Q ANSICZG-230VOLT ANSI
CZG-230VOLT ASACZG-240V/240V/500W/G17Q ANSICZG-DBS ANSICZG-DBS ASA
CZG-DBS SYLVANIACZG/230VCZG/230V/500W/G17Q ANSICZG/240V/500W/G17Q ANSI
CZG/6294C-PHILIPS ANSICZG/DBS INTERLIGHTDBS/CZG ANSII/230V/500W/G17Q-A2A/T10/C13D/OT/25H
I/230V/500W/G17Q-A2A/T10/C13D/OT/25H/CZG-230VI/230V/500W/G17Q-A2A/T10/CC13-OR-C13D/OT/25HI/230V/500W/G17Q-A2A/T10/CC13-OR-C13D/OT/25H/CZG-230VI/230V/500W/G17Q-A2A/T10/CC13/OT/25H
I/230V/500W/G17Q-A2A/T10/CC13/OT/25H/CZG-230VI/230V/500W/G17Q-A2A/T10/OT/25HI/230V/500W/G17Q-A2A/T10/OT/25H/CZG-230VI/230V/500W/G17Q/T10/C13D/OT/25H
I/230V/500W/G17Q/T10/C13D/OT/25H/CZG-230VI/230V/500W/G17Q/T10/CC13-OR-C13D/OT/25HI/230V/500W/G17Q/T10/CC13-OR-C13D/OT/25H/CZG-230VI/230V/500W/G17Q/T10/CC13/OT/25H
I/230V/500W/G17Q/T10/CC13/OT/25H/CZG-230VI/230V/500W/G17Q/T10/OT/25HI/230V/500W/G17Q/T10/OT/25H/CZG-230VI/240V/500W/G17Q-A2A/T10/C13D/OT/25H
I/240V/500W/G17Q-A2A/T10/C13D/OT/25H/CZG-240VI/240V/500W/G17Q-A2A/T10/CC13-OR-C13D/OT/25HI/240V/500W/G17Q-A2A/T10/CC13-OR-C13D/OT/25H/CZG-240VI/240V/500W/G17Q-A2A/T10/CC13/OT/25H
I/240V/500W/G17Q-A2A/T10/CC13/OT/25H/CZG-240VI/240V/500W/G17Q-A2A/T10/OT/25HI/240V/500W/G17Q-A2A/T10/OT/25H/CZG-240VI/240V/500W/G17Q/T10/C13D/OT/25H
I/240V/500W/G17Q/T10/C13D/OT/25H/CZG-240VI/240V/500W/G17Q/T10/CC13-OR-C13D/OT/25HI/240V/500W/G17Q/T10/CC13-OR-C13D/OT/25H/CZG-240VI/240V/500W/G17Q/T10/CC13/OT/25H
I/240V/500W/G17Q/T10/CC13/OT/25H/CZG-240VI/240V/500W/G17Q/T10/OT/25HI/240V/500W/G17Q/T10/OT/25H/CZG-240VI/240V/500W/G17Q/T12/C13D/OT/25H
I/240V/500W/G17Q/T12/C13D/OT/25H/A1-205-240V-500W-G17Q LIFKP-CVG-10-CZG-DBS KONDOKP-S-10-CZG-DBS KONDOKP-SL-10-CZG-DBS KONDO
KP-STG-10-CZG-DBS KONDOKP-TC-10-230VOLT-500WATTKP-TC-10-CZG-DBS KONDOKP-TF-10-CZG-DBS KONDO
KP-TS-10-CZG-DBS KONDOKPCVG10-230-500KPCVG10-230-500WKPCVG10-230V500
KPCVG10-230V500WKPS10-230-500KPS10-230-500WKPS10-230V500
KPS10-230V500WKPSL10-230-500KPSL10-230-500WKPSL10-230V500
KPSL10-230V500WKPSTG10-230-500KPSTG10-230-500WKPSTG10-230V500
KPSTG10-230V500WKPTC10-230-500KPTC10-230-500WKPTC10-230V500
KPTC10-230V500WKPTF10-230-500KPTF10-230-500WKPTF10-230V500
KPTF10-230V500WKPTFM10A1-205 KONDOKPTS10-230-500KPTS10-230-500W
KPTS10-230V500KPTS10-230V500WSP500T10G17Q-A2ACC13DOT230VSP500T10G17Q-A2ACC13DOT240V
SP500T10G17Q-A2ACC13OT230VSP500T10G17Q-A2ACC13OT240VSP500T10G17Q-A2ACLOT230VSP500T10G17Q-A2ACLOT240V
SP500T10G17Q-A2ACOT230VSP500T10G17Q-A2ACOT240VSP500T10G17Q-A2AOT230VSP500T10G17Q-A2AOT240V
SP500T10G17QA2ACC13-OR-C13DOT230VSP500T10G17QA2ACC13-OR-C13DOT230V-CZG-230VSP500T10G17QA2ACC13-OR-C13DOT240VSP500T10G17QA2ACC13-OR-C13DOT240V-CZG-240V
SP500T10G17QA2ACC13-OR-OT230VSP500T10G17QA2ACC13-OR-OT230V-CZG-230VSP500T10G17QA2ACC13-OR-OT240VSP500T10G17QA2ACC13-OR-OT240V-CZG-240V
SP500T10G17QA2ACC13DOT230V-CZG-230VSP500T10G17QA2ACC13DOT240V-CZG-240VSP500T10G17QA2ACC13OT230V-CZG-230VSP500T10G17QA2ACC13OT240V-CZG-240V
SP500T10G17QA2ACLOT230V-CZG-230VSP500T10G17QA2ACLOT240V-CZG-240VSP500T10G17QA2ACOT230V-CZG-230VSP500T10G17QA2ACOT240V-CZG-240V
SP500T10G17QA2AOT230V-CZG-230VSP500T10G17QA2AOT240V-CZG-240VSP500T10G17QCC13-OR-C13DOT230V-CZG-230VSP500T10G17QCC13-OR-C13DOT240V-CZG-240V
SP500T10G17QCC13-OR-OT230V-CZG-230VSP500T10G17QCC13-OR-OT240V-CZG-240VSP500T10G17QCC13DOT230V-CZG-230VSP500T10G17QCC13DOT240V-CZG-240V
SP500T10G17QCC13OT230V-CZG-230VSP500T10G17QCC13OT240V-CZG-240VSP500T10G17QCLOT230V-CZG-230VSP500T10G17QCLOT240V-CZG-240V
SP500T10G17QCOT230V-CZG-230VSP500T10G17QCOT240V-CZG-240VSP500T10G17QOT230V-CZG-230VSP500T10G17QOT240V-CZG-240V
