CZS ANSI Code
CZS ANSI is a T10 lamp with a E26 base operating at 500 watts and 115-120 volts. It has a color temperature of 3200 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CZS lamps.

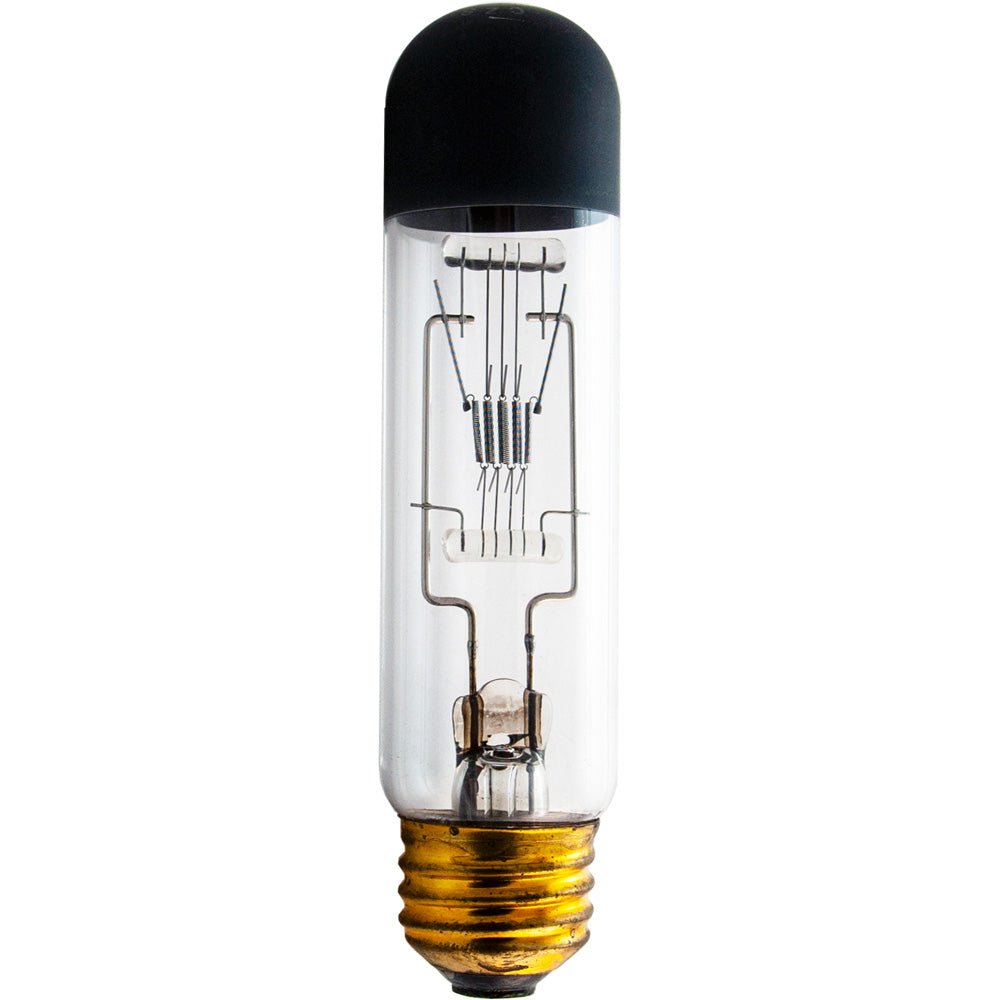

CZS Photograph |
 |
Electrical Specifications | |
| Volts | 115-120 |
|---|---|
| Watts | 500 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 3 |
| Lumens | 12500 |
Physical Characteristics | |
| Base | E26 |
|---|---|
| Bulb Shape | T10 |
| Filament | C-13D |
| Finish | Obscured top |
| Max Overall Length (MOL) | 5 1/2 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CZS |
|---|---|
| Code Type | ANSI |
Substitution Notes | |
| Possible Substitution | CZY |
|---|---|
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
E26 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | CZS | 500W, 115-120V | |
