CZY ANSI Code
CZY ANSI is a T10 lamp with a E26 base operating at 500 watts and 120 volts. It has a Clear finish. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CZY lamps.

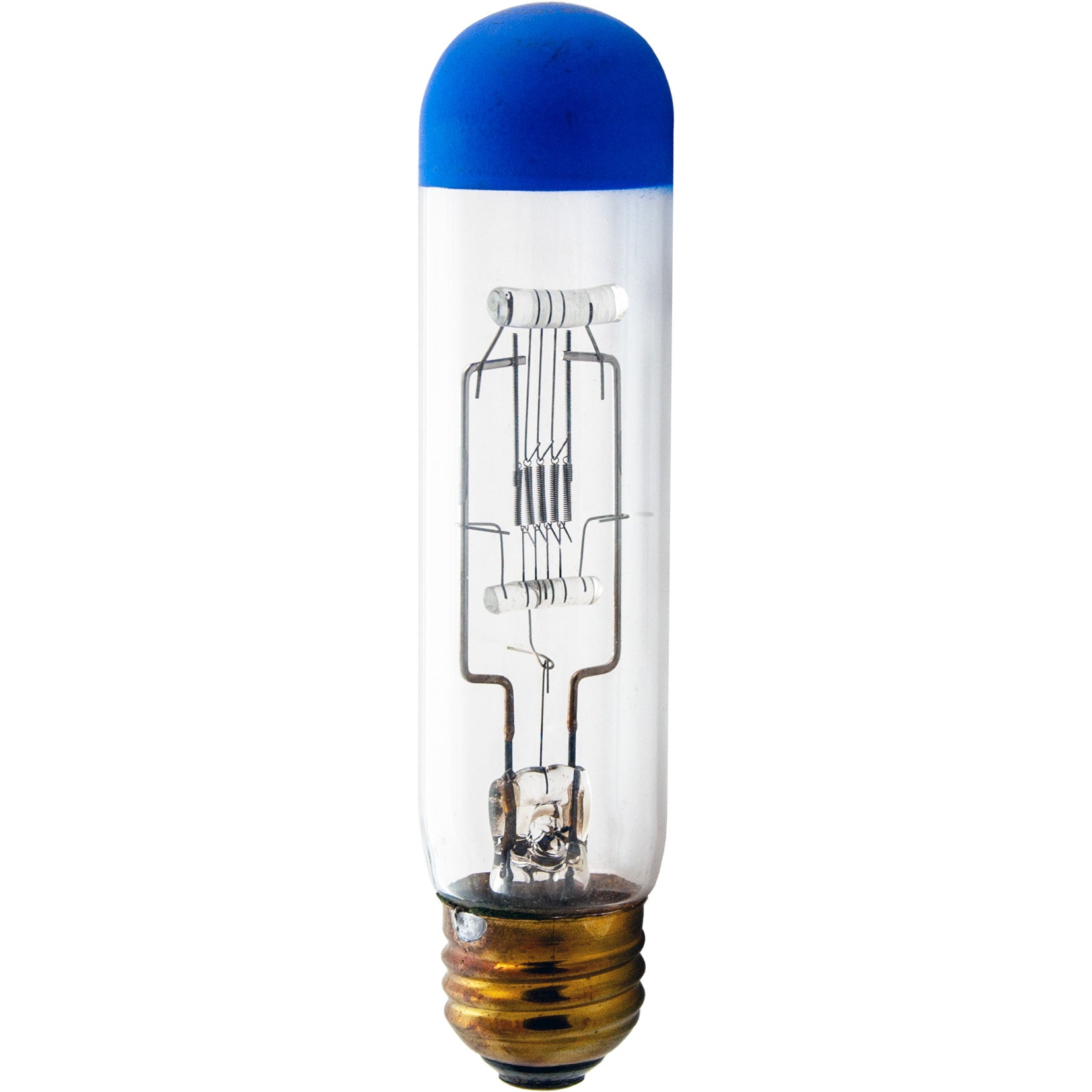

CZY Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 500 |
Photometrics | |
| Lumens | 12500 |
|---|---|
Physical Characteristics | |
| Base | E26 |
|---|---|
| Bulb Shape | T10 |
| Finish | Clear |
| Max Overall Length (MOL) | 5.28" |
| Diameter | 1.25" |
Operating Characteristics |
General Information | |
| Lamp Code | CZY |
|---|---|
| Code Type | ANSI |
Substitution Notes | |
| Less light, more life, less heat | CZS |
|---|---|
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
E26 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CZY | ||
