DFE ANSI Code
DFE ANSI is a T12 lamp with a G17q-B34 base operating at 80 watts and 30 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DFE lamps.

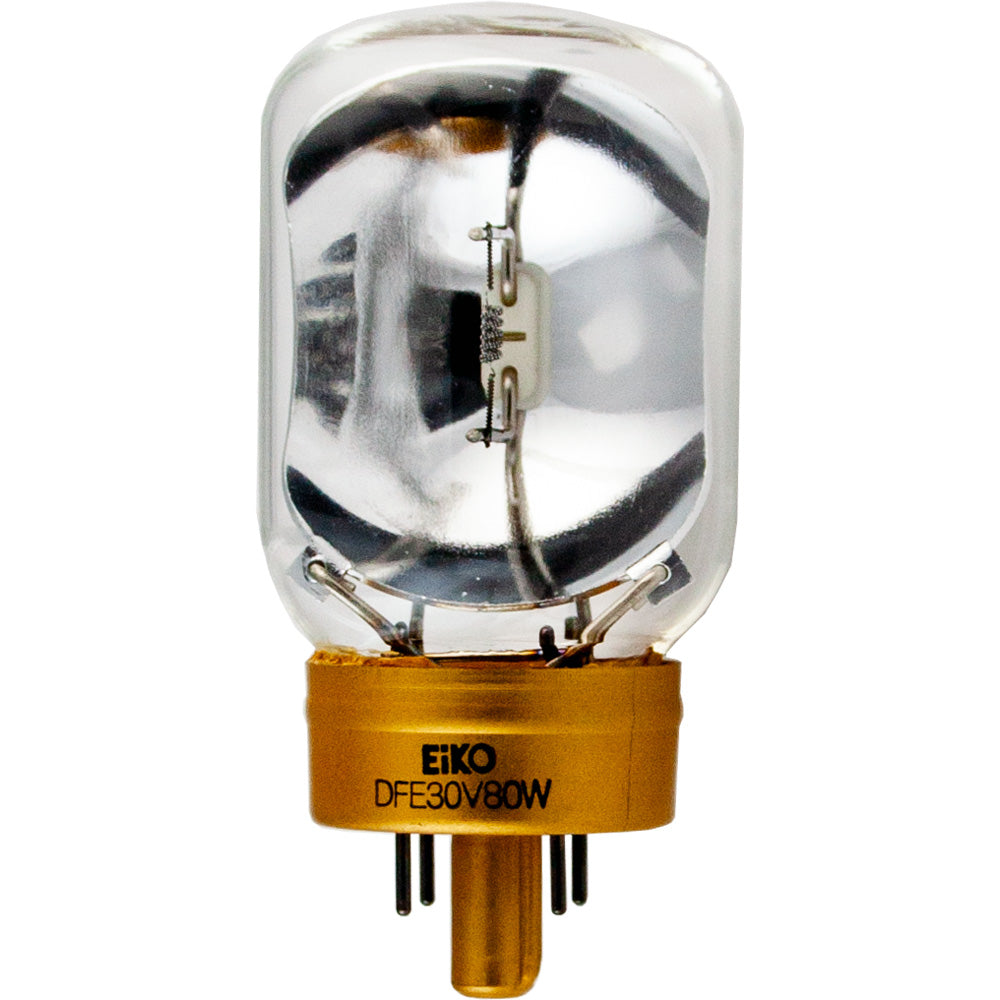

DFE Photograph |
 |
Electrical Specifications | |
| Amps | 2.67 |
|---|---|
| Volts | 30 |
| Watts | 80 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 1 9/16 |
Physical Characteristics | |
| Base | G17q-B34 |
|---|---|
| Bulb Shape | T12 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 3/16 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | DFE |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
Substitution Notes | |
| Possible Substitution | DMD |
|---|---|
| Possible Substitution | DGB |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
G17q-B34 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Standard Products | 11359 | T-12/80W/30V/4-PIN/GX17Q/DFE | |
| Microlites | 30-080-31E | ||
| Canimpex | 30-080-31E | ||
Equipment Used In | ||
| Brand | Model | Type |
| Argus | 844 | |
| Argus | 844-P | |
| Argus | 833 | |
| Argus | 877-ZR | |
| Argus | 877 | |
| Eastman Kodak | Chevron Instamatic M10 | |
| Eastman Kodak | Chevron Instamatic M105K | |
| Eastman Kodak | Instamatic M-68-A | |
| Eastman Kodak | Instamatic M-110 | |
| Eastman Kodak | Ektasound Eight 245 | |
| Eastman Kodak | Chevron Ektasound 235-K | |
| Eastman Kodak | Chevron Instamatic M10K | |
| Eastman Kodak | Chevron Instamatic M109K | |
| Eastman Kodak | Chevron Instamatic M67 | |
| Eastman Kodak | Chevron 120 | |
| Eastman Kodak | Chevron Ektasound 235 | |
| Eastman Kodak | Chevron Ektasound 245 | |
| Eastman Kodak | Chevron Instamatic M68A | |
| Eastman Kodak | Instamatic M-10 | |
| Eastman Kodak | Chevron Instamatic M109 | |
| Eastman Kodak | Chevron Instamatic M67K | |
| Eastman Kodak | Instamatic M-109 | |
| Eastman Kodak | Instamatic M-67 | |
| Eastman Kodak | Instamatic M-77 | |
| Eastman Kodak | Instamatic M-109-K | |
| Eastman Kodak | Ektasound Eight 235 | |
| Eastman Kodak | Ektagraphic 120 | |
| Eastman Kodak | Chevron Instamatic M77 | |
| Eastman Kodak | Instamatic M-60 | |
| Eastman Kodak | Chevron Instamatic M105 | |
| Eastman Kodak | Instamatic M-105 | |
| Eastman Kodak | Instamatic M-105-K | |
| Eastman Kodak | Chevron Instamatic M60K | |
| Eastman Kodak | Instamatic M-67-K | |
| Eastman Kodak | Chevron Instamatic M110 | |
| Eastman Kodak | Ektagraphic Eight 120 | |
| GAF (Ansco) | 2388Z | |
| GAF (Ansco) | Anscorama 1010 | |
| GAF (Ansco) | 1488 | |
| GAF (Ansco) | Anscorama 188-Z | 8mm Projector Movie |
| GAF (Ansco) | 1372 | 8mm Projector Movie |
| GAF (Ansco) | 1564Z | 8mm Projector Movie |
| GAF (Ansco) | 1333 | 8mm Projector Movie |
| GAF (Ansco) | 2588Z | |
| GAF (Ansco) | Anscorama 101 | |
| GAF (Ansco) | 1388 | 8mm Projector Movie |
| GAF (Ansco) | 1588Z | |
| GAF (Ansco) | 1555DZ | 8mm Projector Movie |
| GAF (Ansco) | 2388 | |
| GAF (Ansco) | Anscorama 1010-Z | |
| GAF (Ansco) | 1688Z (newer) | 8mm Projector Movie |
| GAF (Ansco) | 2488 | |
| GAF (Ansco) | Anscovision 188-Z | 8mm Projector Movie |
| JC Penney | 6440 | |
| JC Penney | 2550 | |
| JC Penney | 6442 | |
| Keystone Camera Co. Inc. | 560 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-560 | Projector Slide / Filmstrip |
DFE may also be listed as: | |||
| 01372 EIKO | 01372 UPC | 01372 WIKO | 031293013729 EIKO |
| 1000186 BLV | 1000186 USHIO | 3129301372 WIKO | 43168991322 |
| 99132 GENERAL-ELECTRIC | BW-DFE | DFE ANSI | DFE ASA |
| DFE BULB-DIRECT | DFE EIKO | DFE GENERAL-ELECTRIC | DFE HIDSI |
| DFE INTERLIGHT | DFE LAMPTECH | DFE MICROLAMP | DFE SYLVANIA |
| DFE USHIO | DFE WESTINGHOUSE | DFE WIKO | DFE-30 ANSI |
| DFE-30 ASA | DFE-30V ANSI | DFE-30V ASA | DFE-30V-80W |
| DFE-30V-80W ANSI | DFE-30V-80W ASA | DFE-30V-80W-G17Q-T-12-CC-8-CLEAR-3400K-15H-BDTH-3-3/16MOL-1-9/16LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-REFLECTOR-FOCAL-DIST.-2-1/4 | DFE-30V-80W-G17Q-T12-CC8-CLEAR-3400K-15H-BDTH-3-3/16MOL-1-9/16LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-REFLECTOR-FOCAL-DIST-2-1/4 |
| DFE-30V/30V/80W/G17Q ANSI | DFE-30VOLT ANSI | DFE-30VOLT ASA | DFE-80W-30 SYLVANIA |
| DFE-80W-30V GENERAL-ELECTRIC | DFE-80W-30V SYLVANIA | DFE-80WATT-30VOLT SYLVANIA | DFE-DFZ EIKO |
| DFE-REFLECTOR-CLEAR-TOP-30V-T38MM-82MMMOL-39.7MMLCL-CC-8-3200K-15H-BD-HOR-1000186 BLV | DFE-REFLECTOR-CLEAR-TOP-30V-T38MM-82MMMOL-39.7MMLCL-CC-8-3200K-15H-BD-HOR-1000186 USHIO | DFE/30V GENERAL-ELECTRIC | DFE/30V/80W/G17Q ANSI |
| DFE/T12-30V-80W-4-PIN LAMPTECH | DFE80-30 SYLVANIA | DFE80-30V SYLVANIA | EQ-DFE ELECTROQUIP |
| G17Q-30V-80W-PROJECTION ELECTROQUIP | G17Q7-80W-DFE-REFLECTOR-CLEAR-TOP-30V-T38MM-82MMMOL-39.7MMLCL-CC-8-3200K-15H-BD-HOR-1000186 BLV | G17Q7-80W-DFE-REFLECTOR-CLEAR-TOP-30V-T38MM-82MMMOL-39.7MMLCL-CC-8-3200K-15H-BD-HOR-1000186 USHIO | I/30V/80W/G17Q-B34/T12/CC8/OT/15H |
| I/30V/80W/G17Q-B34/T12/CC8/OT/15H/DFE | I/30V/80W/G17Q-B34/T12/OT/15H/DFE | I/30V/80W/G17Q/T12/CC8/OT/15H | I/30V/80W/G17Q/T12/CC8/OT/15H/DFE |
| I/30V/80W/G17Q/T12/OT/15H/DFE | I/30V/80W/GX17Q/T12/PHOTO | PROJECTION/30V/80W/G17Q/15H ELECTROQUIP | SP80T12G17Q-B34AXOT30V |
| SP80T12G17Q-B34CC8OT30V | SP80T12G17QAXOT30V | SP80T12G17QAXOT30V-DFE | SP80T12G17QB34AXOT30V-DFE |
| SP80T12G17QB34CC8OT30V-DFE | SP80T12G17QB34OT30V-DFE | SP80T12G17QCC8OT30V | SP80T12G17QCC8OT30V-DFE |
| SP80T12G17QOT30V-DFE | |||
