DMD ANSI Code
DMD ANSI is a T12 lamp with a G17q-B34 base operating at 80 watts and 30 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DMD lamps.

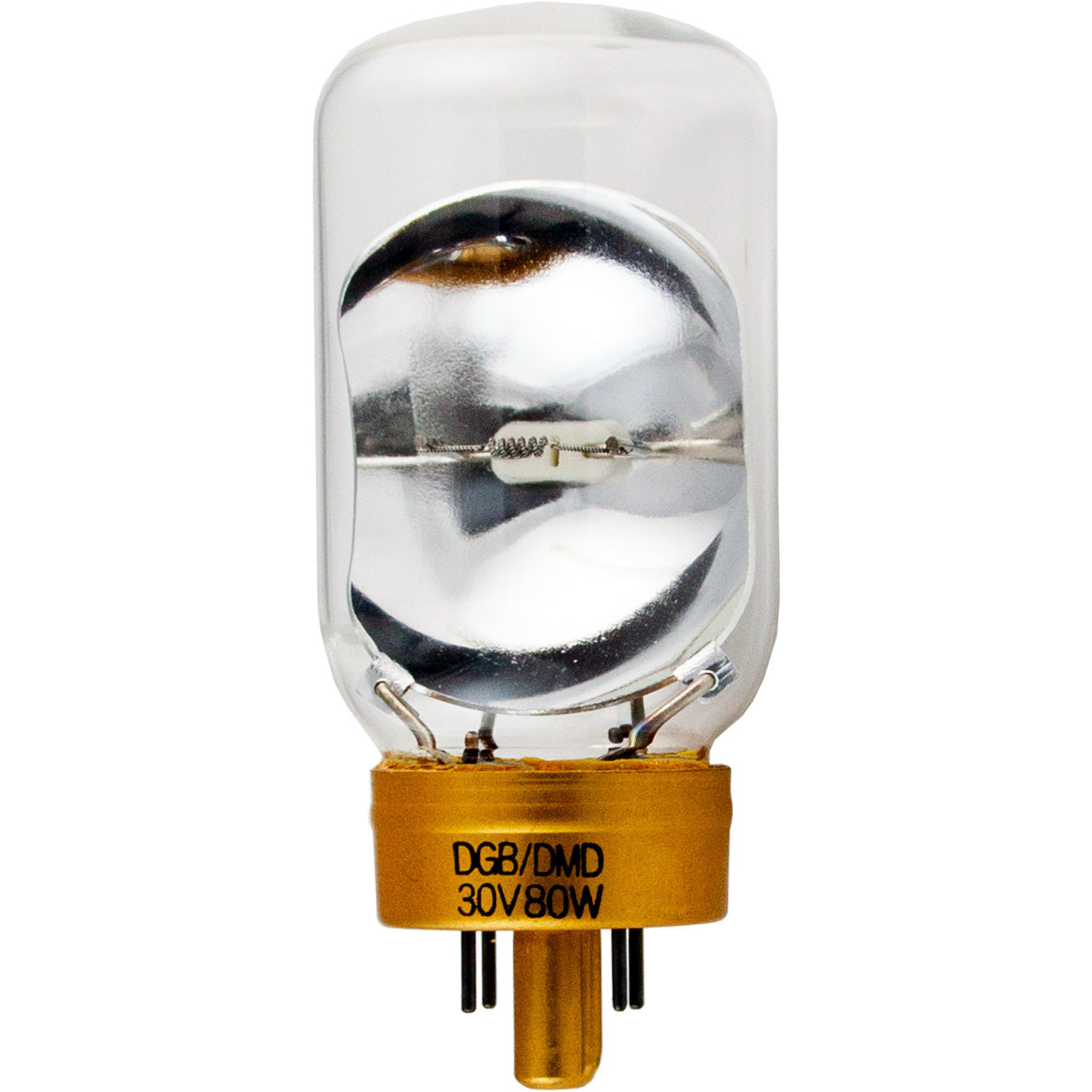

DMD Photograph |
 |
Electrical Specifications | |
| Amps | 2.67 |
|---|---|
| Volts | 30 |
| Watts | 80 |
Photometrics | |
| Color Temperature | 3400 |
|---|---|
| Light Center Length (LCL) | 1 9/16 |
Physical Characteristics | |
| Base | G17q-B34 |
|---|---|
| Bulb Shape | T12 |
| Filament | CC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 9/16 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | DMD |
|---|---|
| Code Type | ANSI |
Substitution Notes | |
| Possible Substitution | DGB |
|---|---|
| Possible Substitution | DFE |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
G17q-B34 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | DMD | ||
Equipment Used In | ||
| Brand | Model | Type |
| A.R. Bernard (GAF) | Viceroy 813 | 8mm Projector Movie |
| GAF (Ansco) | Anscovision 188-Z (August 1973) | 8mm Projector Movie |
| GAF (Ansco) | 2588Z | |
| GAF (Ansco) | 1388Z | 8mm Projector Movie |
| GAF (Ansco) | 1333 (December 1972) | 8mm Projector Movie |
| GAF (Ansco) | 2488 | |
| GAF (Ansco) | 1388 (August 1973) | 8mm Projector Movie |
| GAF (Ansco) | 1488 | |
| GAF (Ansco) | Memory Master II | |
| GAF (Ansco) | 2388Z | |
| GAF (Ansco) | 2388 | |
| GAF (Ansco) | 1588Z | |
| GAF (Ansco) | 1688Z | 8mm Projector Movie |
| GAF (Ansco) | 1555DZ | 8mm Projector Movie |
| GAF (Ansco) | 1564Z | 8mm Projector Movie |
| Sears Roebuck | 9232 SEARS | Projector Slide / Filmstrip |
| Technicolor | 520 | 8mm Projector Movie |
DMD may also be listed as: | |||
| DMB WESTINGHOUSE | DMD ANSI | DMD ASA | DMD-30 ANSI |
| DMD-30 ASA | DMD-30V ANSI | DMD-30V ASA | DMD-30V-80W |
| DMD-30V-80W ANSI | DMD-30V-80W ASA | DMD-30V-80W-G17Q-T-12-CC-6-CLEAR-3400K-15H-BD-3-9/16MOL-1-9/16LCL-I-8MM-PROJECTOR-PROXIMITY-REFL.-FOCAL-DISTANCE-2-1/4 | DMD-30V-80W-G17Q-T12-CC6-CLEAR-3400K-15H-BD-3-9/16MOL-1-9/16LCL-I-8MM-PROJECTOR-PROXIMITY-REFL-FOCAL-DISTANCE-2-1/4 |
| DMD-30V/30V/80W/G17Q ANSI | DMD-30VOLT ANSI | DMD-30VOLT ASA | DMD-DGB ANSI |
| DMD-DGB ASA | DMD/30V GENERAL-ELECTRIC | DMD/30V/80W/G17Q ANSI | I/30V/80W/G17Q-B34/T12/CC6/15H |
| I/30V/80W/G17Q-B34/T12/CC6/15H/DMD | I/30V/80W/G17Q-B34/T12/CL/15H/DMD | I/30V/80W/G17Q/T12/CC6/15H | I/30V/80W/G17Q/T12/CC6/15H/DMD |
| I/30V/80W/G17Q/T12/CL/15H/DMD | SP80T12G17Q-B34CC630V | SP80T12G17Q-B34CL30V | SP80T12G17QB34CC630V-DMD |
| SP80T12G17QB34CL30V-DMD | SP80T12G17QCC6-30V | SP80T12G17QCC630V-DMD | SP80T12G17QCL-30V |
| SP80T12G17QCL30V-DMD | |||
