DRB ANSI Code

DRB ANSI is a T20 lamp with a P28s base operating at 1000 watts and 115 volts. It has a color temperature of 3350 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DRB lamps.

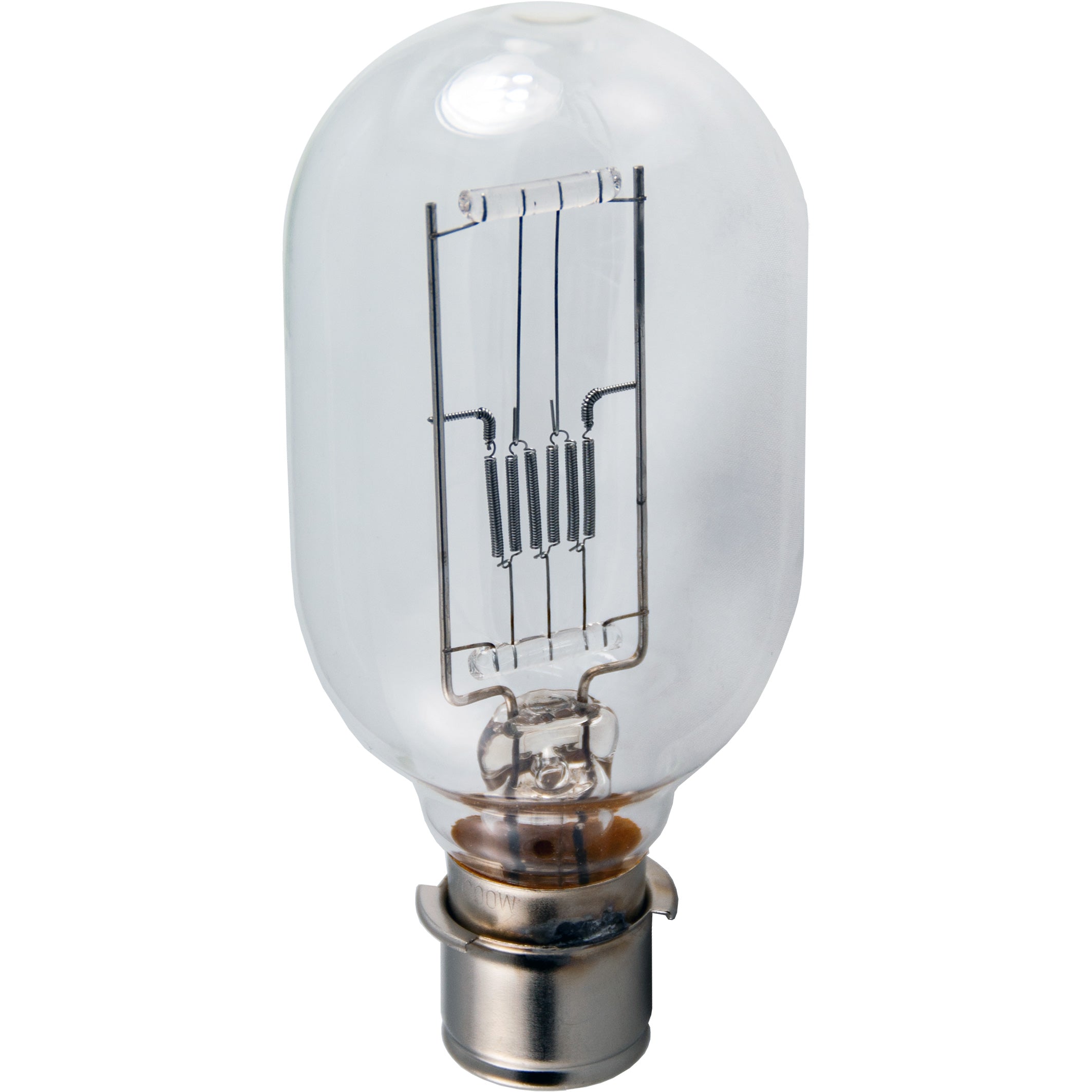

DRB Photograph

DRB

Electrical Specifications

Amps8.7
Volts115
Watts1000

Photometrics

Candlepower2500
Color Temperature3350
Light Center Length (LCL)2 3/16
Lumens32000

Physical Characteristics

BaseP28s
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionBD ± 30°
Life Hours25

General Information
Lamp CodeDRB
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-538-8880, 6240-00-995-9262

Substitution Notes
For 230V Use DWK
For Longer Life Use DRC

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

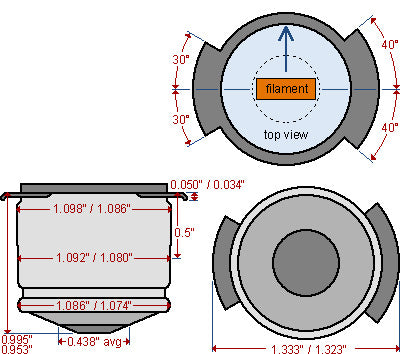

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDRB1000W, 120V
Microlites115-1000-63B
Microlites120-1000-63B
Microlites125-1000-63B
Canimpex115-1000-63B
Canimpex120-1000-63B
Canimpex125-1000-63B

Equipment Used In

BrandModelType
3M Thermofax 42CA
3M Thermofax BA
3M Thermofax 42A
3M Thermofax 42C
3M Thermofax CG
3M Thermofax 42BA
3M Thermofax 42CG
3M Thermofax CA
AO Reichert 3527
AO Reichert Opaque 3525
AO Reichert 3550
AO Reichert Opaque 3550
AO Reichert Opaque 3527
AO Reichert Delineascope 3525
AO Reichert Opaque 3540
AO Reichert 3540
Beseler Photo Marketing (Charles Beseler) Vu-Lyte III Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Opaque Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Opa-Scope II Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master 7750-THF Overhead Projector
Beseler Photo Marketing (Charles Beseler) Vu-Lyte IV Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Transpaque-Opaque II Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-all Transparency Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master Satellite 6600 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Satellite 7750-THF Overhead Projector
Beseler Photo Marketing (Charles Beseler) Vu-all Opaque Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Transpaque Jr. Overhead Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Transpaque III Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Lyte II Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Lyte I Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler) Vu-Graph Master 6600 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Opa-Scope II 20008 Projector Opaque / Transparency
Buhl Mark IV Pointer
Buhl 4-005
Buhl Koolite 7000
Buhl 4-008
Buhl Mark IV
Buhl Koolite 6000
Buhl 4-006
Buhl AG-336 Opaque
Da-Lite (Bessler) Vu-Lyte IV
F&B / Ceco Incorporated Redlake 35mm Movie Projector
J.Y. Taylor Company TS-3 Spotlight Projector Opaque / Transparency
J.Y. Taylor Company TS-4 Spotlight Projector Opaque / Transparency
J.Y. Taylor Company TS-7 Spotlight Projector Opaque / Transparency
J.Y. Taylor Company TS-1 Spotlight Projector Opaque / Transparency
J.Y. Taylor Company TS-5 Spotlight Projector Opaque / Transparency
J.Y. Taylor Company TS-6 Spotlight Projector Opaque / Transparency
Kalart Victor 3526 Projector Opaque / Transparency
Kalart Victor 3525 Projector Opaque / Transparency
Kalart Victor 93525
Neumade 3526-GH
Projection Optics Co. Opascope Projector
Projection Optics Co. Transpaque Auto-Level Projector
Projection Optics Co. Transpaque Jr. Projector
Projection Optics Co. Transpaque 2 Projector
Projection Optics Co. Projex 1010 Projector
Squibb Taylor Spotlight TS-5 Projector Opaque / Transparency
Squibb Taylor Spotlight TS-1 Projector Opaque / Transparency
Squibb Taylor Spotlight TS-3 Projector Opaque / Transparency
Squibb Taylor Spotlight TS-4 Projector Opaque / Transparency
Squibb Taylor Spotlight TS-6 Projector Opaque / Transparency
Squibb Taylor Spotlight TS-7 Projector Opaque / Transparency
Teleprompter Corp. Translator 5
