DRS ANSI Code

DRS ANSI is a T20 lamp with a P28s base operating at 1000 watts and 110 volts. It has a color temperature of 3325 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DRS lamps.

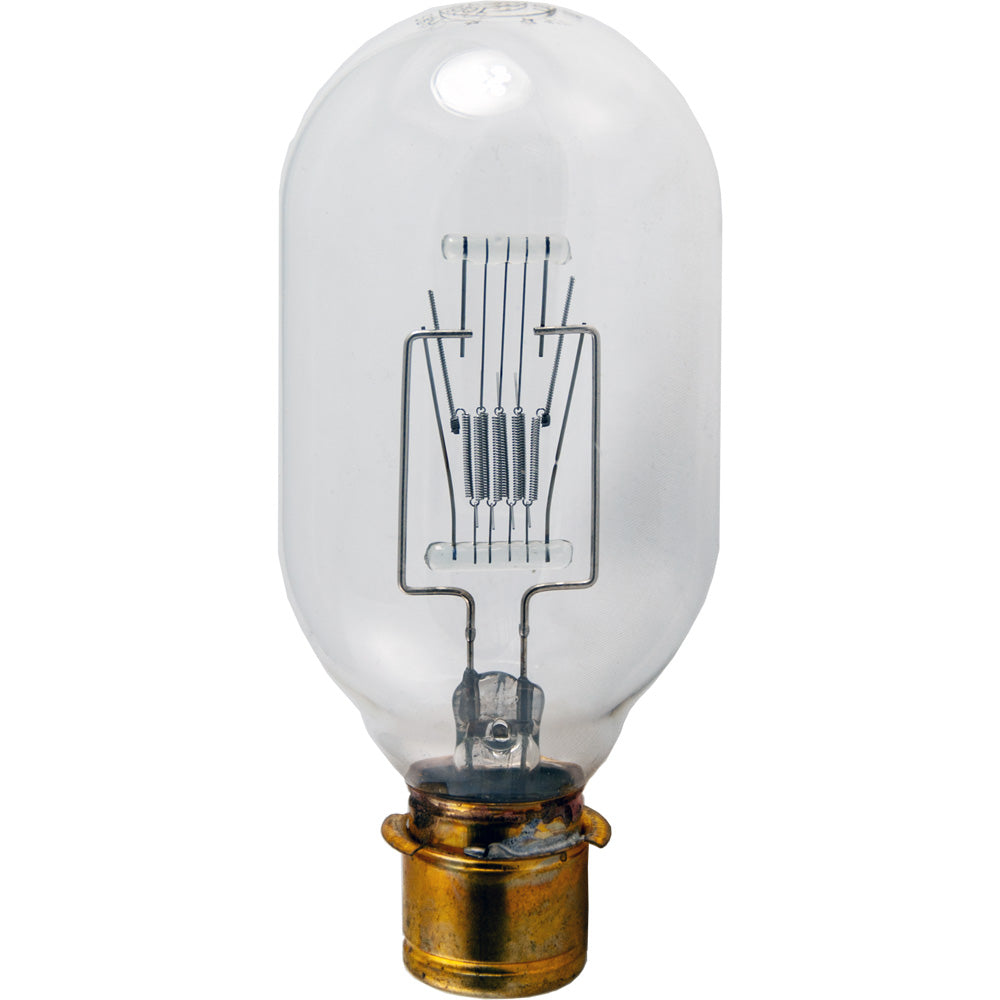

DRS Photograph

Electrical Specifications
Amps	9.09
Volts	110
Watts	1000

Photometrics
Candlepower	2300
Color Temperature	3325
Light Center Length (LCL)	2 3/16
Lumens	28500

Physical Characteristics
Base	P28s
Bulb Shape	T20
Filament	C-13D
Finish	Clear
Max Overall Length (MOL)	5 3/4

Operating Characteristics
Burn Position	BD ± 30°
Life Hours	25

General Information
Lamp Code	DRS
Code Type	ANSI
Specification Reference	ANSI-SR24F2002
Equivalents	A1/58 115V

Substitution Notes
For 230V Use	DWK

T20 Shape

Diameter Designation	20/8"
Glass Diameter	2 1/2" (2.5")
Shape Code	T
Shape Classification	Tubular

C-13D Filament

Coil Type	C - Single Coil

P28s Base

Cross Reference Part Numbers
Brand	MPN	Description	Availability
Norman Lamps	DRS	DRS
Microlites	115-1000-63S
Microlites	120-1000-63S
Microlites	125-1000-63S
Canimpex	115-1000-63S
Canimpex	120-1000-63S
Canimpex	125-1000-63S

Equipment Used In
Brand	Model	Type
3M	Thermofax CG
3M	Thermofax 42BA
3M	Thermofax CA
3M	Thermofax 42A
3M	Thermofax BA
3M	Thermofax 42C
3M	Thermofax 42CG
3M	Thermofax 42CA
AO Reichert	Delineascope 3525
AO Reichert	Opaque 3525
AO Reichert	Opaque 3550
AO Reichert	3550
AO Reichert	3540
AO Reichert	Opaque 3527
AO Reichert	3527
AO Reichert	Opaque 3540
Aldis Brothers Limited	Aldiscope 1000	Projector
Beseler Photo Marketing (Charles Beseler)	Opa-Scope	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master 6600	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master Satellite 6600	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Transpaque-Opaque II	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master X-Ray	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Opa-Scope II	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	OA-3 (new)	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Lyte II	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Transpaque II	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Lyte Opor-Slide	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Opor-Slide	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Century	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	OA-4 (new)	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-all Opaque	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Lyte I	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Lyte IV	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-all Transparency	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Opa-Scope II 20008	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Transpaque III	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master 7750-THF	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Opaque	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	LN-1700	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master Satellite 88	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Vu-Lyte III	Projector Opaque / Transparency
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master 88	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Satellite 7750-THF	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Royal	Overhead Projector
Beseler Photo Marketing (Charles Beseler)	Vu-Graph Master Royal	Overhead Projector
Buhl	Koolite 600
Buhl	Koolite 700
Camera Equipment Company	CECO-REDLAKE
DeVry	Paromel 3500 (w/ old condenser system)	35mm Sound Movie Projector
DeVry	EU	35mm Sound Movie Projector
DeVry	Paromel 2802 (w/ #1000 condenser system)	35mm Sound Movie Projector
DeVry	Paromel 3500 (w/ #1000 condenser system)	35mm Sound Movie Projector
DeVry	ESF	35mm Sound Movie Projector
DeVry	Paromel 2810 (w/ #1000 condenser system)	35mm Sound Movie Projector
DeVry	E	35mm Sound Movie Projector
DeVry	Paromel 2800 (w/ old condenser system)	35mm Sound Movie Projector
Elmo	Master 1048
Elmo	Master 1047
Elmo	Master 447
Elmo	Master C-61
Elmo	Master C-58
F&B / Ceco Incorporated	Redlake	35mm Movie Projector
Frederick Post Company	Microfiche	Microfilm Reader
General Photographic Supply	Aldiscope
GoldE Manufacturing Co.	All Purpose 1048
GoldE Manufacturing Co.	Superslide 1035	Projector Slide / Filmstrip
GoldE Manufacturing Co.	Air Flo 1043	8mm Projector Movie Sound
GoldE Manufacturing Co.	Superslide 535
GoldE Manufacturing Co.	Combination 1047	Projector Slide / Filmstrip
GoldE Manufacturing Co.	Superslide 1935	Projector Slide / Filmstrip
GoldE Manufacturing Co.	Master 1049	8mm Projector Movie Sound
GoldE Manufacturing Co.	Master 1035	8mm Projector Movie Sound
Good-All Electric Company	Sound On Film	35mm Sound Movie Projector
Holmes Projector Company	Tutor
Honeywell	Master C-61
Honeywell	Heiland 1048
Honeywell	Master C-58
Honeywell	Master 1048
Honeywell	Heiland 1047
Honeywell	Master 1047
Honeywell	Heiland Air-Flo C-61
Honeywell	Heiland Master 447
J.Y. Taylor Company	TS-3 Spotlight	Projector Opaque / Transparency
J.Y. Taylor Company	TS-4 Spotlight	Projector Opaque / Transparency
J.Y. Taylor Company	TS-1 Spotlight	Projector Opaque / Transparency
J.Y. Taylor Company	TS-7 Spotlight	Projector Opaque / Transparency
J.Y. Taylor Company	TS-6 Spotlight	Projector Opaque / Transparency
J.Y. Taylor Company	TS-5 Spotlight	Projector Opaque / Transparency
Kalart Victor	3526	Projector Opaque / Transparency
Kalart Victor	93525
Kalart Victor	3525	Projector Opaque / Transparency
Keystone Camera Co. Inc.	Overhead	Projector Slide / Filmstrip
Kolograph Corp.	1615-49
Kolograph Corp.	47
Leitz	8-S-1000
Naren Industries	Pro-Spot N-103	Graphic Arts
Projection Optics Co.	Transpaque Auto-Level	Projector
Projection Optics Co.	Transpaque Jr.	Projector
Projection Optics Co.	Projex 1010	Projector
Projection Optics Co.	Opascope	Projector
Projection Optics Co.	Transpaque 2	Projector
SOS Photo Cine Optics	Cinemaphone 35-T	35mm Movie Projector
Scott Education	Technifax 10 X 10	Overhead Projector
Sentry Safety Control Corp.	Universal 10	35mm Movie Projector
Sentry Safety Control Corp.	Universal 33	35mm Movie Projector
Sentry Safety Control Corp.	Universal 66	35mm Movie Projector
Squibb Taylor	Spotlight TS-5	Projector Opaque / Transparency
Squibb Taylor	Spotlight TS-3	Projector Opaque / Transparency
Squibb Taylor	Spotlight TS-1	Projector Opaque / Transparency
Squibb Taylor	Spotlight TS-4	Projector Opaque / Transparency
Squibb Taylor	Spotlight TS-7	Projector Opaque / Transparency
Squibb Taylor	Spotlight TS-6	Projector Opaque / Transparency
Taylor Industries	Stereo D-52
Taylor Industries	TS-7
Teaching Technology Corp.	1055
Teledyne / Post	Microfiche
Victorlite Industries	Visualcast 4000	Projector Opaque / Transparency
Victorlite Industries	Visualcast 3000	Projector Opaque / Transparency

DRS may also be listed as:
01620 EIKO	01620 UPC	01620 WIKO	01630 EIKO
01630 UPC	01630 WIKO	031293016201 EIKO	031293016300 EIKO
048777113936 UPC	1000-T20-P-115 GENERAL-ELECTRIC	1000-T20-P-115 MAZDA	1000-T20-P-115V GENERAL-ELECTRIC
1000-T20-P-115V MAZDA	1000-T20-P-125 GENERAL-ELECTRIC	1000-T20-P-125 MAZDA	1000-T20-P-125V GENERAL-ELECTRIC
1000-T20-P-125V MAZDA	1000-T20-P28S-115 GENERAL-ELECTRIC	1000-T20-P28S-115 MAZDA	1000-T20-P28S-115V GENERAL-ELECTRIC
1000-T20-P28S-115V MAZDA	1000-T20-P28S-125 GENERAL-ELECTRIC	1000-T20-P28S-125 MAZDA	1000-T20-P28S-125V GENERAL-ELECTRIC
1000-T20-P28S-125V MAZDA	1000-T20-PF-115 GENERAL-ELECTRIC	1000-T20-PF-115 MAZDA	1000-T20-PF-115V GENERAL-ELECTRIC
1000-T20-PF-115V MAZDA	1000-T20-PF-125 GENERAL-ELECTRIC	1000-T20-PF-125 MAZDA	1000-T20-PF-125V GENERAL-ELECTRIC
1000-T20-PF-125V MAZDA	1000-T20-PREFOCUS-115 GENERAL-ELECTRIC	1000-T20-PREFOCUS-115 MAZDA	1000-T20-PREFOCUS-115V GENERAL-ELECTRIC
1000-T20-PREFOCUS-115V MAZDA	1000-T20-PREFOCUS-125 GENERAL-ELECTRIC	1000-T20-PREFOCUS-125 MAZDA	1000-T20-PREFOCUS-125V GENERAL-ELECTRIC
1000-T20-PREFOCUS-125V MAZDA	1000218 USHIO	1000W/T20/MP	1000WATT-T20-P28S SYLVANIA
1000WATT-T20-P28S WESTINGHOUSE	1000WATT-T20-P28S-115VOLT GENERAL-ELECTRIC	1000WATT-T20-P28S-115VOLT MAZDA	1000WATT-T20-P28S-120 VOLT GENERAL-ELECTRIC
1000WATT-T20-P28S-120 VOLT MAZDA	1000WATT-T20-P28S-120 VOLT WESTINGHOUSE	1000WATT-T20-P28S-125VOLT GENERAL-ELECTRIC	1000WATT-T20-P28S-125VOLT MAZDA
1000WATT-T20-P28S-CLEAR	115V-1000W-MED-PREF ATLAS	115V-1000W-MED-PREF-A1-58 MAZDA	115V-1000W-MED.PREF ATLAS
115V-1000W-MED.PREF-A1/58 ATLAS	1M/T20MP GENERAL-ELECTRIC	2590-0070 LEITZ-LEICA	29947 STANDARDPRO
3129301620 WIKO	43168299473	43168299473UPC STANDARDPRO	57-7891E-120V OSRAM
57-7891E/7401C-120V-PHILIPS OSRAM	57.7891E-120V OSRAM	57.7891E/7401C-120V-PHILIPS OSRAM	58-8997E-120V OSRAM
58-8997E/6185C-120V-PHILIPS OSRAM	58.8987-E OSRAM	58.8997E-120V OSRAM	58.8997E/6185C-120V-PHILIPS OSRAM
6158-C PHILIPS	6185-C-110VOLT	6185-C-115 PHILIPS	6185-C-115V PHILIPS
6185-C-115VOLT PHILIPS	6185-C-120 VOLT PHILIPS	6185-C-125 PHILIPS	6185-C-125V PHILIPS
6185-C-125VOLT PHILIPS	6185C-120V PHILIPS	6185C/58-8997E-120V-OSRAM PHILIPS	6185C/58.8997E-120V-OSRAM PHILIPS
6185C/A1-58-120V-LIF PHILIPS	6185C/DRS PHILIPS	6185C/DRS-ANSI PHILIPS	72.02.200 LOHUIS
7401C-120V PHILIPS	7401C/57-7891E-120V-OSRAM PHILIPS	7401C/57.7891E-120V-OSRAM PHILIPS	7401C/T6-120V-LIF PHILIPS
762095 BULBRITE	78-8454-3456-8 3M	78-8454-3464-2 3M	8-E-87 GENERAL-ELECTRIC
8-E-87 MAZDA	810 PERKO-MARINE	A1-58 115	A1-58 115V
A1-58 125	A1-58 125V	A1-58 ATLAS	A1-58 THORN
A1-58-115 ATLAS	A1-58-115 LIF	A1-58-115 THORN	A1-58-115V ATLAS
A1-58-115V LIF	A1-58-115V MAZDA	A1-58-115V THORN	A1-58-115V-1000W-MED-PREF ATLAS
A1-58-115V-1000W-MED.PREF. ATLAS	A1-58-115V-1000W-P28S LIF	A1-58-115VOLT ATLAS	A1-58-115VOLT LIF
A1-58-115VOLT THORN	A1-58-120 VOLT ATLAS	A1-58-120 VOLT LIF	A1-58-120 VOLT THORN
A1-58-120V LIF	A1-58-125 ATLAS	A1-58-125 LIF	A1-58-125 THORN
A1-58-125V ATLAS	A1-58-125V LIF	A1-58-125V THORN	A1-58-125VOLT ATLAS
A1-58-125VOLT LIF	A1-58-125VOLT THORN	A1-58/110V	A1-58/110V/1000W LIF
A1-58/115V/1000W	A1-58/115V/1000W ATLAS	A1-58/115V/1000W LIF	A1-58/115V/1000W THORN
A1-58/120V	A1-58/6185C-120V-PHILIPS LIF	A1/58-115V-1000W-P28S-T64-C13D-CLEAR-25000L-25H-VBD-133MMMOL-55.5MMLCL-I-27000LM-AT-115V-FORCED-COOLING-NECESSARY	A1/58-115VOLT
A1/58-125VOLT	BW-DRS	DRS ANSI	DRS ASA
DRS BULB-DIRECT	DRS BULBRITE	DRS EIKO	DRS GENERAL-ELECTRIC
DRS HIDSI	DRS INTERLIGHT	DRS LAMPTECH	DRS MICROLAMP
DRS RADIANT	DRS STANDARDPRO	DRS SYLVANIA	DRS USHIO
DRS WESTINGHOUSE	DRS WIKO	DRS-1000W-120V-P28S USHIO	DRS-110V/110V/1000W/P28S ANSI
DRS-115 ANSI	DRS-115 ASA	DRS-115V ANSI	DRS-115V ASA
DRS-115V-1000W ANSI	DRS-115V-1000W ASA	DRS-115V/115V/1000W/P28S ANSI	DRS-115VOLT ANSI
DRS-115VOLT ASA	DRS-120 VOLT ANSI	DRS-120 VOLT ASA	DRS-120V ANSI
DRS-120V ASA	DRS-120V-1000W	DRS-120V-1000W ANSI	DRS-120V-1000W ASA
DRS-120V-1000W-P28S USHIO	DRS-120V-1000W-P28S-T20-C13D-CLEAR-28500L-3325K-25H-BD30-5-3/4MOL-2-3/16LCL-I-OVERHEAD-PROJECTOR-HIGH-DEGREE-OF-FORCED-COOLING	DRS-120V/120V/1000W/P28S ANSI	DRS-125 ANSI
DRS-125 ASA	DRS-125V ANSI	DRS-125V ASA	DRS-125V-1000W ANSI
DRS-125V-1000W ASA	DRS-125V/125V/1000W/P28S ANSI	DRS-125VOLT ANSI	DRS-125VOLT ASA
DRS-5 ANSI	DRS-5 ASA	DRS-5 BULB-DIRECT	DRS-5 EIKO
DRS-5 INTERLIGHT	DRS-5 WIKO	DRS-99	DRS-DL
DRS-ES	DRS-L	DRS-LL	DRS-LONG-LIFE
DRS-X	DRS-XP	DRS-XTRA	DRS/110V/1000W ANSI
DRS/110V/1000W/P28S ANSI	DRS/115V/1000W/P28S ANSI	DRS/120V GENERAL-ELECTRIC	DRS/120V/1000W/P28S ANSI
DRS/125V GENERAL-ELECTRIC	DRS/125V/1000W/P28S ANSI	DRS/6185C-PHILIPS ANSI	DRS/T20-120V-1000W-MED.-PREF LAMPTECH
EQ-A1/58 ELECTROQUIP	I/110V/1000W/P28S/T20/C13D/25H	I/110V/1000W/P28S/T20/C13D/25H/DRS-110V	I/110V/1000W/P28S/T20/CL/25H
I/110V/1000W/P28S/T20/CL/25H/DRS-110V	I/115V/1000W/P28S/T20/C13D/25H	I/115V/1000W/P28S/T20/C13D/25H/A1-58-115V-1000W-P28S LIF	I/115V/1000W/P28S/T20/C13D/25H/DRS-115V
I/115V/1000W/P28S/T20/CL/25H/DRS-115V	I/120V/1000W/P28S/T20/C13D/25H	I/120V/1000W/P28S/T20/C13D/25H/DRS-120V	I/120V/1000W/P28S/T20/C13D/PHOTO
I/120V/1000W/P28S/T20/CL/25H/DRS-120V	I/120V/1000W/P28S/T21/C13D/56MMLCL/25H/6185C-120V PHILIPS	I/120V/1000W/P28S/T21/C13D/56MMLCL/27000L/140MMMOL/25H/6185C-120V PHILIPS	I/120V/1000W/P28S/T65MM/C13D/56MMLCL/27000L/140MMMOL/25H/6185C-120V PHILIPS
I/125V/1000W/P28S/T20/C13D/25H	I/125V/1000W/P28S/T20/C13D/25H/DRS-125V	I/125V/1000W/P28S/T20/CL/25H/DRS-125V	INC-120V-1000W-C13D-25HR/120V/1000W/P28S USHIO
INC-120V-1000W-C13D-25HR/120V/1000W/P28S/DRS USHIO	INC-120V-1000W-C13D-25HR/DRS USHIO	KP-20	KP-20-100VOLT-115VOLT-1000WATT
KP-20-100VOLT-120 VOLT-1000WATT	KP-20-100VOLT-125VOLT-1000WATT	KP-20-115VOLT-1000WATT KONDO	KP-20-120 VOLT-1000WATT KONDO
KP-20-125VOLT-1000WATT KONDO	KP20-100-115-1000	KP20-100-115-1000W	KP20-100-115V1000
KP20-100-115V1000W	KP20-100-125-1000	KP20-100-125-1000W	KP20-100-125V1000
KP20-100-125V1000W	KP20-100V115-1000	KP20-100V115-1000W	KP20-100V115V1000
KP20-100V115V1000W	KP20-100V125-1000	KP20-100V125-1000W	KP20-100V125V1000
KP20-100V125V1000W	KP20-115-1000 KONDO	KP20-115-1000W KONDO	KP20-115V1000 KONDO
KP20-115V1000W KONDO	KP20-125-1000 KONDO	KP20-125-1000W KONDO	KP20-125V1000 KONDO
KP20-125V1000W KONDO	P28S-110V-1000W-PROJECTION ELECTROQUIP	PH-1000-T20-P-115	PH-1000-T20-P-115V
PH-1000-T20-P-125	PH-1000-T20-P-125V	PH-1000-T20-P28S-115	PH-1000-T20-P28S-115V
PH-1000-T20-P28S-125	PH-1000-T20-P28S-125V	PH-1000-T20-PF-115	PH-1000-T20-PF-115V
PH-1000-T20-PF-125	PH-1000-T20-PF-125V	PH-1000-T20-PREFOCUS-115	PH-1000-T20-PREFOCUS-115V
PH-1000-T20-PREFOCUS-125	PH-1000-T20-PREFOCUS-125V	PH-1000W-T20-P-115	PH-1000W-T20-P-115V
PH-1000W-T20-P-125	PH-1000W-T20-P-125V	PH-1000W-T20-P28S-115	PH-1000W-T20-P28S-115V
PH-1000W-T20-P28S-125	PH-1000W-T20-P28S-125V	PH-1000W-T20-PF-115	PH-1000W-T20-PF-115V
PH-1000W-T20-PF-125	PH-1000W-T20-PF-125V	PH-1000W-T20-PREFOCUS-115	PH-1000W-T20-PREFOCUS-115V
PH-1000W-T20-PREFOCUS-125	PH-1000W-T20-PREFOCUS-125V	PH-1000WATT-T20-P28S GENERAL-ELECTRIC	PH-1000WATT-T20-P28S SYLVANIA
PH-1000WATT-T20-P28S WESTINGHOUSE	PH-1000WATT-T20-P28S-115VOLT	PH-1000WATT-T20-P28S-120 VOLT GENERAL-ELECTRIC	PH-1000WATT-T20-P28S-120 VOLT SYLVANIA
PH-1000WATT-T20-P28S-120 VOLT WESTINGHOUSE	PH-1000WATT-T20-P28S-125VOLT	PH/1000W/T20/MP	PH/1M/T20MP GENERAL-ELECTRIC
PROJECTION/110V/1000W/P28S/25H/66X140MM ELECTROQUIP	PXCH-NORELCO	PXCH-RADIANT	SP1000T20P28SC13D-110V
SP1000T20P28SC13D-115V	SP1000T20P28SC13D-120V	SP1000T20P28SC13D-125V	SP1000T20P28SC13D110V-DRS-110V
SP1000T20P28SC13D115V-DRS-115V	SP1000T20P28SC13D120V-DRS-120V	SP1000T20P28SC13D125V-DRS-125V	SP1000T20P28SCL-110V
SP1000T20P28SCL-120V	SP1000T20P28SCL-125V	SP1000T20P28SCL110V-DRS-110V	SP1000T20P28SCL115V-DRS-115V
SP1000T20P28SCL120V-DRS-120V	SP1000T20P28SCL125V-DRS-125V	SP1000T20PC13D-110V	SP1000T20PC13D-115V
SP1000T20PC13D-120V	SP1000T20PC13D-125V	SP1000T20PC13D110V-DRS-110V	SP1000T20PC13D115V-DRS-115V
SP1000T20PC13D120V-DRS-120V	SP1000T20PC13D125V-DRS-125V	SP1000T20PCL-110V	SP1000T20PCL-120V
SP1000T20PCL-125V	SP1000T20PCL110V-DRS-110V	SP1000T20PCL115V-DRS-115V	SP1000T20PCL120V-DRS-120V
SP1000T20PCL125V-DRS-125V	T-20/1000W/120V/P28S/DRS/DRS STANDARDPRO	T6-120V LIF	T6/7401C-120V-PHILIPS LIF

DRS ANSI Code

DRS Photograph

Electrical Specifications

Photometrics

Physical Characteristics

Operating Characteristics

General Information

Substitution Notes

T20 Shape

C-13D Filament

P28s Base

Cross Reference Part Numbers

Equipment Used In

DRS may also be listed as:
