EHT ANSI Code
EHT ANSI is a T4 lamp with a E11 base operating at 250 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHT lamps.

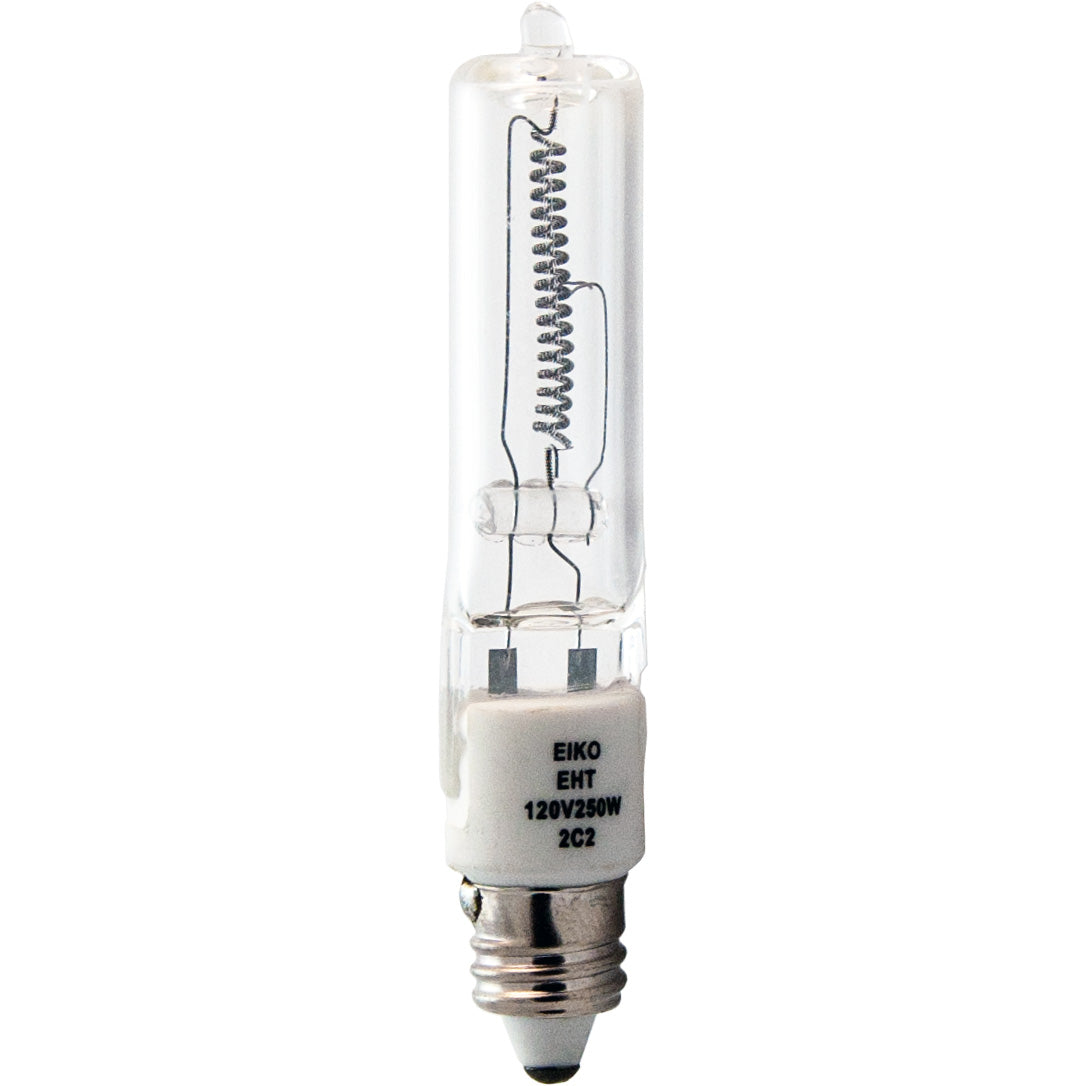

EHT Photograph |
 |
Electrical Specifications | |
| Amps | 1.92 |
|---|---|
| Volts | 120 |
| Watts | 250 |
Photometrics | |
| Candlepower | 400 |
|---|---|
| Color Temperature | 2950 |
| Light Center Length (LCL) | 1 5/8 |
| Lumens | 5000 |
Physical Characteristics | |
| Base | E11 |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 5/32 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | EHT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
Substitution Notes | |
| For Frosted Glass Use | ESM |
|---|---|
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
E11 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Bulbrite | 762240 | EHT | |
| EFOS | 4073 | ||
| Ellman | Q250/MC/CL/120V | ||
| EYE (Iwasaki) | JD120V250W/M2 | 250Q/CL/MC EHT | |
| General Electric | 43699 | Q250CL/MC/EHT | |
| Grainger | 2V265 | ||
| Osram Sylvania | 58762 | 250Q/CL/MC (EHT) | Available |
| Osram Sylvania | 58773 | 250Q/CL/MC/RP-120V HAL-EHT | |
| Philips | 378570 | 250Q/CL EHT 120V | |
| Ushio | 1000294 | EHT, JCV120V-250WGSN | Available |
| Hikari | JD-7223 | JD 120V 250W MC E11 (EHT) | Available |
| Grainger | 1C368 | ||
| Grainger | 4V483 | ||
| Rexim, LLC | RSE-71 | ||
| Microlites | 120-250-45T | ||
| Microlites | 120-250-45T-F | ||
| Microlites | 130-250-45T | ||
| Canimpex | 120-250-45T | ||
| Canimpex | 120-250-45T-F | ||
| Canimpex | 130-250-45T | ||
Equipment Used In | ||
| Brand | Model | Type |
| Altman Lighting | Baby Zoom | Stage / Studio |
| Altman Lighting | Minicam | Stage / Studio |
| Ellman | Opt-Lite | |
| Ellman | Conversion | |
| Ellman | Illuminator | |
| Extek | 1050-B | |
| Hydrotech | 70514 | |
| Sinon | HW2710 | |
| Strand Lighting | 2205-250W | Stage / Studio |
