ESM ANSI Code

ESM ANSI is a T4 lamp with a E11 base operating at 250 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Ext. frosted finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ESM lamps.

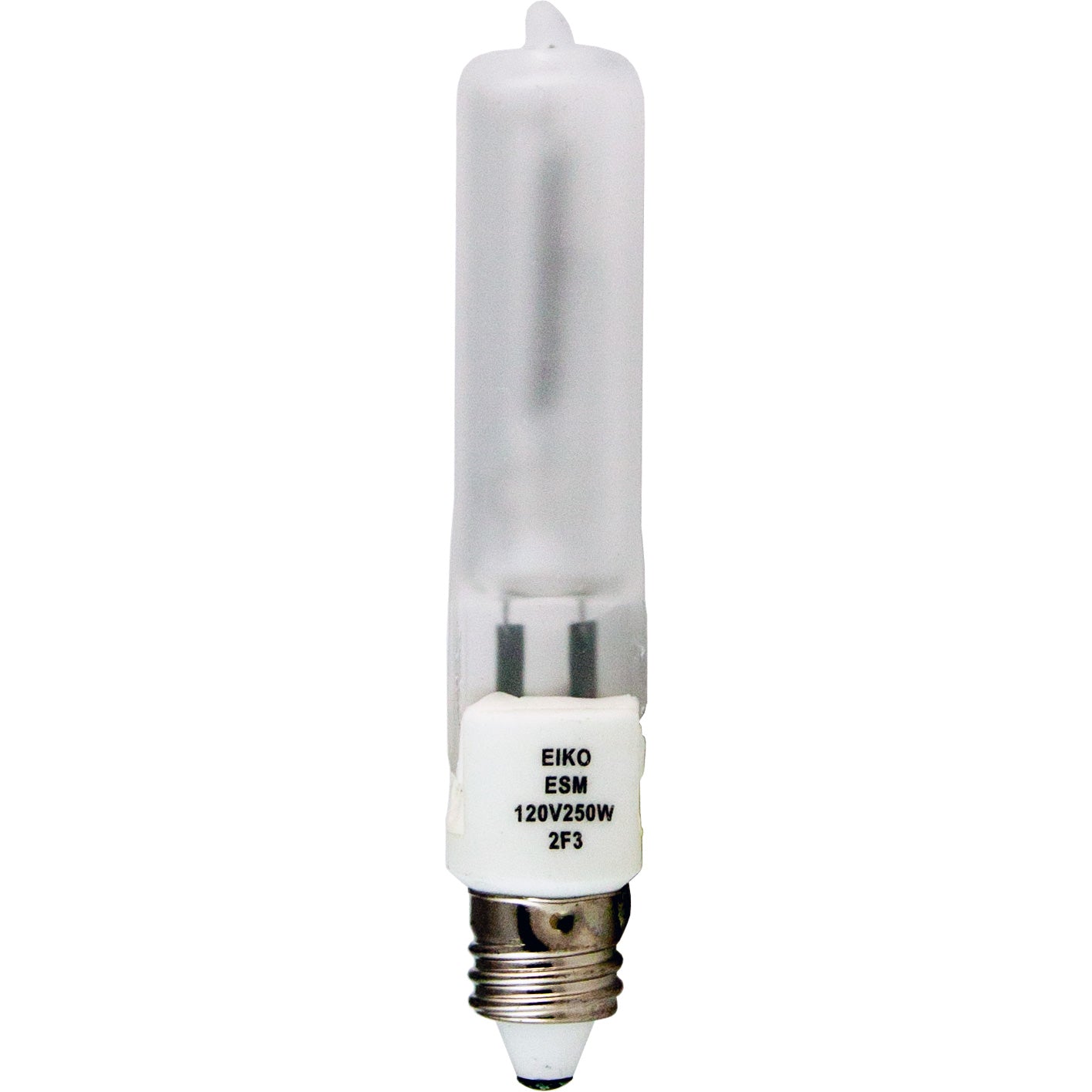

ESM Photograph

ESM

Electrical Specifications

Amps1.92
Volts120
Watts250

Photometrics

Candlepower370
Color Temperature2950
Light Center Length (LCL)1 5/8
Lumens4850

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishExt. frosted
Max Overall Length (MOL)3 5/32

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeESM
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For Clear Glass Use EHT

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
CEW Lighting56034250Q130V
Eiko15258ESM
General Electric43695Q250MC
Halco107030ESM
Osram Sylvania58763ESM 250Q/MC
Ushio1000360ESM, JCV120V-250WGSNF
Grainger1C370
Microlites120-250-45F
Microlites125-250-45TF
Microlites130-250-45F
Canimpex120-250-45F
Canimpex125-250-45TF
Canimpex130-250-45F
