ESS ANSI Code

ESS ANSI is a T4 lamp with a BA15d base operating at 250 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ESS lamps.

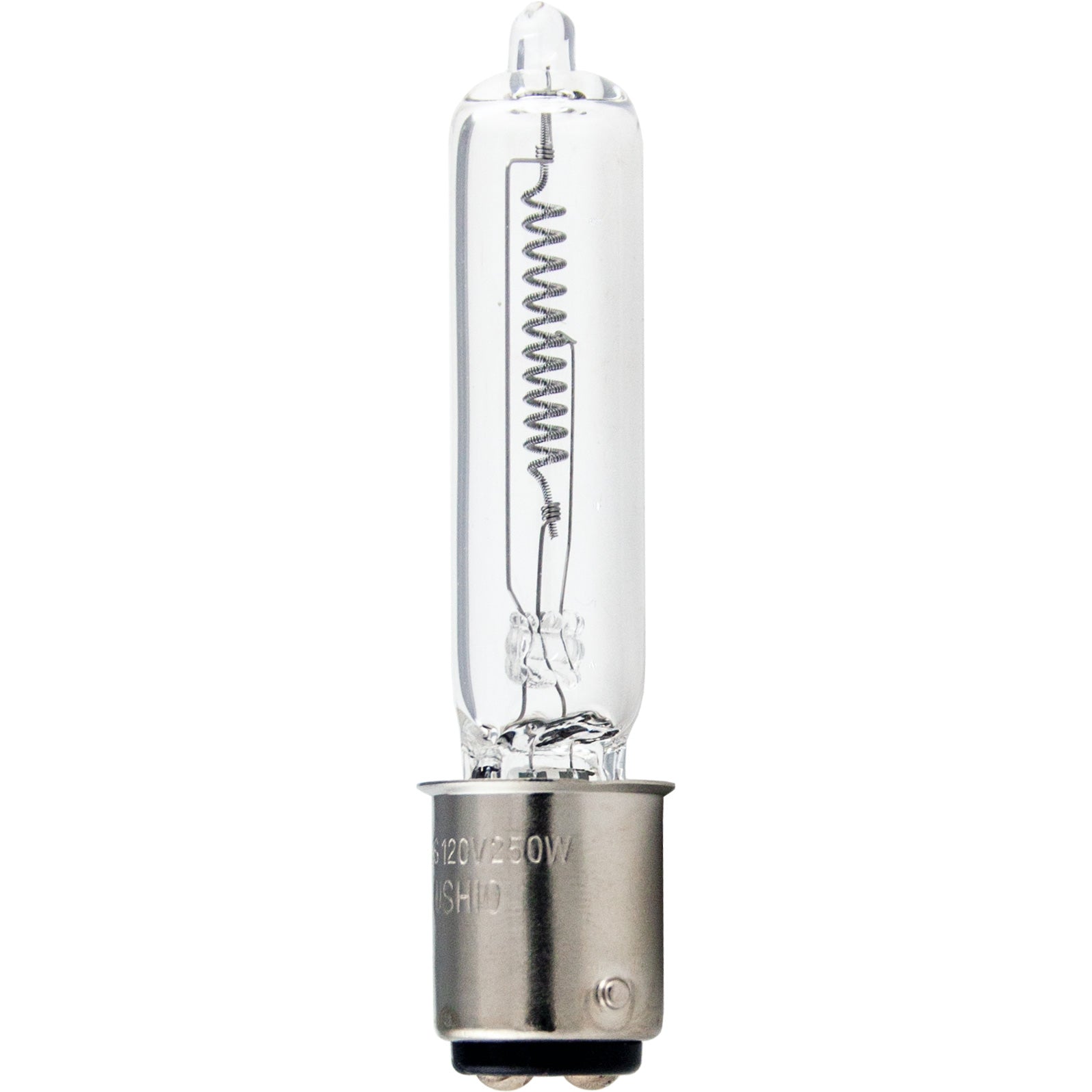

ESS Photograph

ESS

Electrical Specifications

Amps2.08
Volts120
Watts250

Photometrics

Candlepower400
Color Temperature2950
Light Center Length (LCL)1 5/8
Lumens5000

Physical Characteristics

BaseBA15d
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeESS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For Frosted Glass Use ETB-130V

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
EYE (Iwasaki)JD120V250W/BD250Q/CL/DC ESS
General Electric43697Q250CL/DC5
Osram Sylvania58720250Q/CL/DC (ESS)
Philips315846ESS 250Q/CL/DC
Ushio1000365ESS, JCV120V-250WGB
HikariJD-7277JD 120V 250W DC BA15d (ESS)
Grainger2V703
Grainger5V053
Microlites120-250-03
Microlites125-250-03
Microlites130-250-03
Canimpex120-250-03
Canimpex125-250-03
Canimpex130-250-03

Equipment Used In

BrandModelType
Gakken GMR-230
Hydrotech 70518
LTM Pepper 150
LTM Pepper 200
