EXN ANSI Code

EXN ANSI is a MR16 lamp with a GU5.3 base operating at 50 watts and 12 volts. It has a color temperature of 3000 Kelvin. The beam angle is 36°. It has a Open front finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EXN lamps.

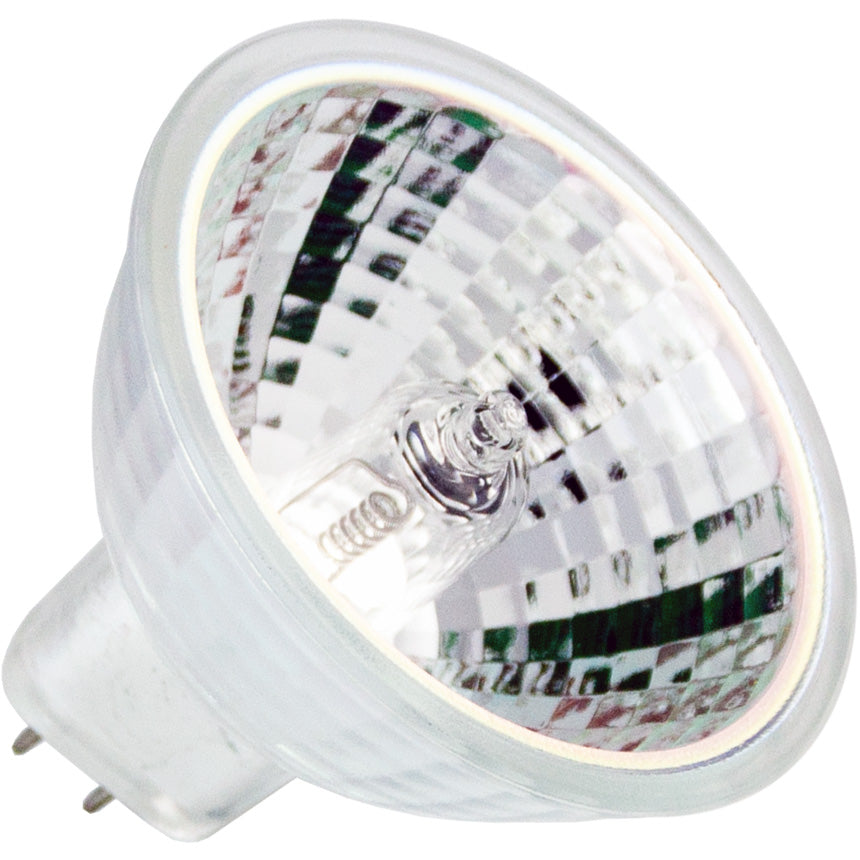

EXN Photograph

EXN

Electrical Specifications

Amps4.17
Volts12
Watts50

Photometrics

Beam Angle36°
Beam SpreadWide Flood
Candlepower1,550cd
Color Temperature3000
Lumens895

Physical Characteristics

BaseGU5.3
Bulb ShapeMR16
FilamentC-6 / C-8
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionAny
Life Hours3500

General Information
Lamp CodeEXN
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsM/58, M/258

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

GU5.3 Base

GU5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
American DJ (ADJ Products)ZB-EXN
Atlas/ThornM/58
Bulbrite641350EXN
CEW Lighting51430EXN
Cool LuxMini-Cool FOS-4
Display LampHalo Z31
Eiko15042EXN
General Electric14788Q50MR16/FL (EXN)
General Electric20833Q50MR16/C/FL40
General Electric20867Q50MR16C/CG40(EXN)
General Electric25482Q50MR16/FL 12 (EXN)
General Electric85296Q50MR16/FL-PQ3/6
Grainger1K325
Grainger1K349
Halco107124MR16EXN/SC
Halco107484MR16EXN
Imported Lamp Code119811
Imported Lamp Code21831-3
Imported Lamp Code41870WFL
Osram Sylvania5420750MR16/FL40-12V-EXN
Osram Sylvania5859650MR16/B/FL/35
Philips37805950MR16/FL36 EXN
Philips37818250MRC16/FL36 PRO EXN 50PK 12V
SatcoS196050MR16/FL
SatcoS346350MR16/FL
SLI Lighting60268Q50MR16/FL EXN
Sunlite03210EXN
Ushio1000398EXN, JR12V-50W/FL36
Westinghouse44560050MR16Q/FL
Westinghouse45860050MR16Q/FL
Imported Lamp Code52360
Imported Lamp Code6461
HikariMR-8041PCMR16 EXN Cover
HikariMR-8041CMR16 EXN
Osram Sylvania5830950MR16/T/FL35/C(EXN) 12V
Green Energy Lighting (GELCO)11350-GELEXN 12V-50W/W
Green Energy Lighting (GELCO)11373-GELEXN 12V-50W/W/FG
Green Energy Lighting (GELCO)11350-PECJEXN 12V-50W/W
Green Energy Lighting (GELCO)11373-PECJEXN/FG 12V-50W/W/FG
Green Energy Lighting (GELCO)11461-PECJEXN 12V-50W/W/3600K
Green Energy Lighting (GELCO)11464EXN 12V-50W/W/FG/3600K
Standard Products50893H50MR16/FL/CG/4M/GX5.3/12V/EXN STD
Standard Products50891H50MR16/FL/4M/GX5.3/12V/EXN STD
Norman LampsEXN-C/EREXN-C/ER
Norman LampsEXN-CEXN Halogen Bulb 12V 50W
Grainger4DA25
Grainger4LV94
Microlites12-050-23R
Microlites12-050-23R/G
Canimpex12-050-23R
Canimpex12-050-23R/G
Biclite11198EXN
Biclite11336EXN
Biclite11337EXN
Biclite11338EXN
Biclite11372EXN
Biclite11373EXN
Biclite11374EXN
Biclite11698EXN
Biclite11720EXN
Biclite11721EXN
Orbitec131985H 63218 C
Orbitec133023H 43218
Orbitec130324H 63218
Orbitec130346H 41870 WFL
Orbitec130651H 63218 ALU
Orbitec133027H 43218 F
Orbitec133018H 10218 F
Orbitec131995H 63218 FC
Orbitec130317H 63218 F
Orbitec130407H 46870 WFL
Orbitec132014H 44870 WFL
Orbitec131759HN 60207
Orbitec130357H 63218 GOLD F

Equipment Used In

BrandModelType
AMBICO V-0181
Airshields 1780741 Exam Light Infant ICU Phototherapy / Warmer
Altman Lighting Zip Strip Stage / Studio
American DJ (ADJ Products) Quatro 2
American DJ (ADJ Products) GOBO Spot 1
American DJ (ADJ Products) CW Spot Stage / Studio
American DJ (ADJ Products) Quatro
Brewer Minor Procedure Light 163003-9
Brewer Minor Procedure Light 163003
Brewer Minor Procedure Light 163002
Brewer Minor Procedure Light 163001
Brewer Minor Procedure Light 163003-10
Cool Lux FOS-4
Frezzolini / Frezzi DMF12C
Frezzolini / Frezzi DMF4X
Frezzolini / Frezzi Mini-Fill Dimmer Control Stage / Studio
Frezzolini / Frezzi DMF12
Frezzolini / Frezzi DMFSV
Frezzolini / Frezzi DMF12V
Frezzolini / Frezzi DMF5X
Luxtec 00-2125 Medical

Sources

  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "General Lighting Products." Catalog. Osram, .
  • "The Philips Lighting Catalogue." Catalogue. Philips, .
