M/58 LIF Code

M/58 LIF is a MR16 lamp with a GU5.3 base operating at 50 watts and 12 volts. It has a Open finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF M/58 lamps.

Electrical Specifications

Volts12
Watts50

Photometrics

Candlepower1,550cd

Physical Characteristics

BaseGU5.3
Bulb ShapeMR16
FilamentC-6
FinishOpen
Max Overall Length (MOL)44.5

Operating Characteristics

Burn PositionAny
Life Hours3000

General Information
Lamp CodeM/58
Code TypeLIF
Specification ReferenceClass M - Miscellaneous Projection
EquivalentsEXN, M/258

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

C-6 Filament

C-6
Coil TypeC - Single Coil

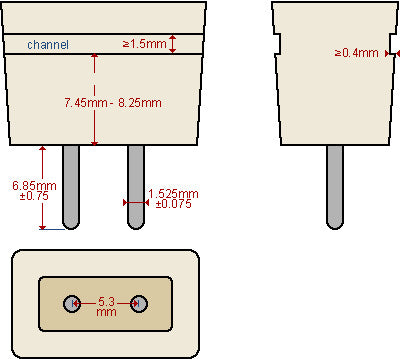

GU5.3 Base

GU5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
American DJ (ADJ Products)ZB-EXN
Atlas/ThornM/58
Bulbrite641350EXN
CEW Lighting51430EXN
Cool LuxMini-Cool FOS-4
Display LampHalo Z31
Eiko15042EXN
General Electric14788Q50MR16/FL (EXN)
General Electric20833Q50MR16/C/FL40
General Electric20867Q50MR16C/CG40(EXN)
General Electric25482Q50MR16/FL 12 (EXN)
General Electric85296Q50MR16/FL-PQ3/6
Grainger1K325
Grainger1K349
Halco107124MR16EXN/SC
Halco107484MR16EXN
Imported Lamp Code119811
Imported Lamp Code21831-3
Imported Lamp Code41870WFL
Osram Sylvania5420750MR16/FL40-12V-EXN
Osram Sylvania5859650MR16/B/FL/35
Philips37805950MR16/FL36 EXN
Philips37818250MRC16/FL36 PRO EXN 50PK 12V
SatcoS196050MR16/FL
SatcoS346350MR16/FL
SLI Lighting60268Q50MR16/FL EXN
Sunlite03210EXN
Ushio1000398EXN, JR12V-50W/FL36
Westinghouse44560050MR16Q/FL
Westinghouse45860050MR16Q/FL
Imported Lamp Code52360
Imported Lamp Code6461
HikariMR-8041PCMR16 EXN Cover
HikariMR-8041CMR16 EXN
Osram Sylvania5830950MR16/T/FL35/C(EXN) 12V
Green Energy Lighting (GELCO)11350-GELEXN 12V-50W/W
Green Energy Lighting (GELCO)11373-GELEXN 12V-50W/W/FG
Green Energy Lighting (GELCO)11350-PECJEXN 12V-50W/W
Green Energy Lighting (GELCO)11373-PECJEXN/FG 12V-50W/W/FG
Green Energy Lighting (GELCO)11461-PECJEXN 12V-50W/W/3600K
Green Energy Lighting (GELCO)11464EXN 12V-50W/W/FG/3600K
Standard Products50893H50MR16/FL/CG/4M/GX5.3/12V/EXN STD
Standard Products50891H50MR16/FL/4M/GX5.3/12V/EXN STD
Norman LampsEXN-C/EREXN-C/ER
Norman LampsEXN-CEXN Halogen Bulb 12V 50W
Grainger4DA25
Grainger4LV94

Equipment Used In

BrandModelType
AMBICO V-0181
Airshields 1780741 Exam Light Infant ICU Phototherapy / Warmer
Altman Lighting Zip Strip Stage / Studio
American DJ (ADJ Products) Quatro 2
American DJ (ADJ Products) GOBO Spot 1
American DJ (ADJ Products) CW Spot Stage / Studio
American DJ (ADJ Products) Quatro
Brewer Minor Procedure Light 163003-9
Brewer Minor Procedure Light 163003
Brewer Minor Procedure Light 163002
Brewer Minor Procedure Light 163001
Brewer Minor Procedure Light 163003-10
Cool Lux FOS-4
Frezzolini / Frezzi DMF12C
Frezzolini / Frezzi DMF4X
Frezzolini / Frezzi Mini-Fill Dimmer Control Stage / Studio
Frezzolini / Frezzi DMF12
Frezzolini / Frezzi DMFSV
Frezzolini / Frezzi DMF12V
Frezzolini / Frezzi DMF5X
Luxtec 00-2125 Medical
