EXZ ANSI Code
EXZ ANSI is a MR16 lamp with a GU5.3 base operating at 50 watts and 12 volts. It has a color temperature of 3000 Kelvin. The beam angle is 24°. It has a Open front finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EXZ lamps.

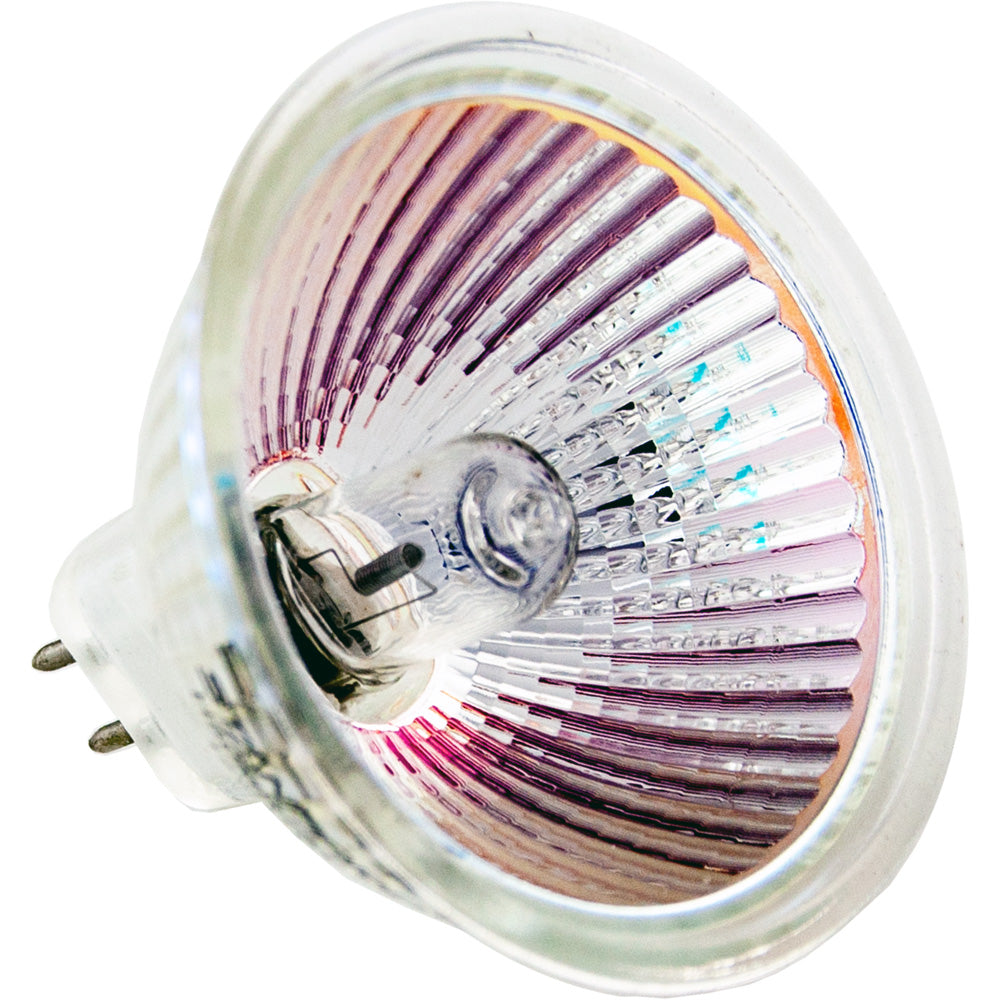

EXZ Photograph |
 |
Electrical Specifications | |
| Amps | 4.17 |
|---|---|
| Volts | 12 |
| Watts | 50 |
Photometrics | |
| Beam Angle | 24° |
|---|---|
| Beam Spread | Narrow Flood |
| Candlepower | 3,700cd |
| Color Temperature | 3000 |
| Lumens | 895 |
Physical Characteristics | |
| Base | GU5.3 |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-6 |
| Finish | Open front |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 3500 |
General Information | |
| Lamp Code | EXZ |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | M/250, M/50 |
| Related Categories | Halogen MR16, LED MR16 |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GU5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Osram Sylvania | 58308 | 50MR16/T/NFL25/C(EXZ) | Available |
| Green Energy Lighting (GELCO) | 11349-GEL | EXZ 12V-50W/M | |
| Green Energy Lighting (GELCO) | 11372-GEL | EXZ 12V-50W/M/FG | |
| Green Energy Lighting (GELCO) | 11349-PECJ | EXZ 12V-50W/M | |
| Green Energy Lighting (GELCO) | 11462-PECJ | EXZ 12V-50W/M 3600K | |
| Green Energy Lighting (GELCO) | 11465 | EXZ 12V-50W/M/FG/3600K | |
| Standard Products | 50890 | H50MR16/NFL/4M/GX5.3/12V/EXZ STD | |
| Norman Lamps | EXZ-C | EXZ Halogen Bulb 12V 50W | |
| Grainger | 1K323 | ||
| Grainger | 1K345 | ||
| Grainger | 4DA24 | ||
| Healthco | EXZ | ||
| Microlites | 12-050-23PR | ||
| Microlites | 12-050-23ZR | ||
| Microlites | 12-050-23ZR/G | ||
| Canimpex | 12-050-23PR | ||
| Canimpex | 12-050-23ZR | ||
| Canimpex | 12-050-23ZR/G | ||
| Biclite | 11342 | EXZ | |
| Biclite | 11343 | EXZ | |
| Biclite | 11344 | EXZ | |
| Biclite | 11378 | EXZ | |
| Biclite | 11379 | EXZ | |
| Biclite | 11380 | EXZ | |
| Orbitec | 133022 | H 43216 | |
| Orbitec | 130328 | H 63216 | |
| Orbitec | 133026 | H 43216 F | |
| Orbitec | 133017 | H 10216 F | |
| Orbitec | 132986 | H 63216 FC | |
| Orbitec | 130315 | H 63216 F | |
| Orbitec | 132268 | H 44870 FL | |
Equipment Used In | ||
| Brand | Model | Type |
| Acme-Lite | 42DC | |
| Acme-Lite | 32 (50W) | |
| Acme-Lite | 32 (100W) | |
| Acme-Lite | 300L | |
| Acme-Lite | 300 | |
| Airshields | PT L 68-1 | Phototherapy |
| Airshields | 1780745 PTM-78-2 | Bili Blanket |
| Airshields | PT 368-1 | Phototherapy |
| Airshields | 1780741 PM-78-1 | Infant ICU Phototherapy / Warmer |
| Airshields | Healthdrive PTM78-2 | |
| Airshields | Healthdrive Intensive Care System | |
| Altman Lighting | Zip Strip | Stage / Studio |
| American DJ (ADJ Products) | Zephyr 2 | |
| American DJ (ADJ Products) | Zephyr | |
| American DJ (ADJ Products) | Roto Gobo | |
| Bogen | M-100 Mini | |
| Cool Lux | FOS-3 | |
| Frezzolini / Frezzi | MF12P | |
| Frezzolini / Frezzi | MFSV | |
| Frezzolini / Frezzi | DMF12P | |
| Frezzolini / Frezzi | MF12V | |
| Frezzolini / Frezzi | MF5X | |
| Frezzolini / Frezzi | DMF4X | |
| Frezzolini / Frezzi | DMF12V | |
| Frezzolini / Frezzi | MF12C | |
| Frezzolini / Frezzi | MF4X | |
| Frezzolini / Frezzi | DMF12 | |
| Frezzolini / Frezzi | DMFSV | |
| Frezzolini / Frezzi | DMF5X | |
| Frezzolini / Frezzi | DMF12C | |
| Kenco | T/100B | |
| Kenco | T/112 | |
| Kenco | T920 | |
