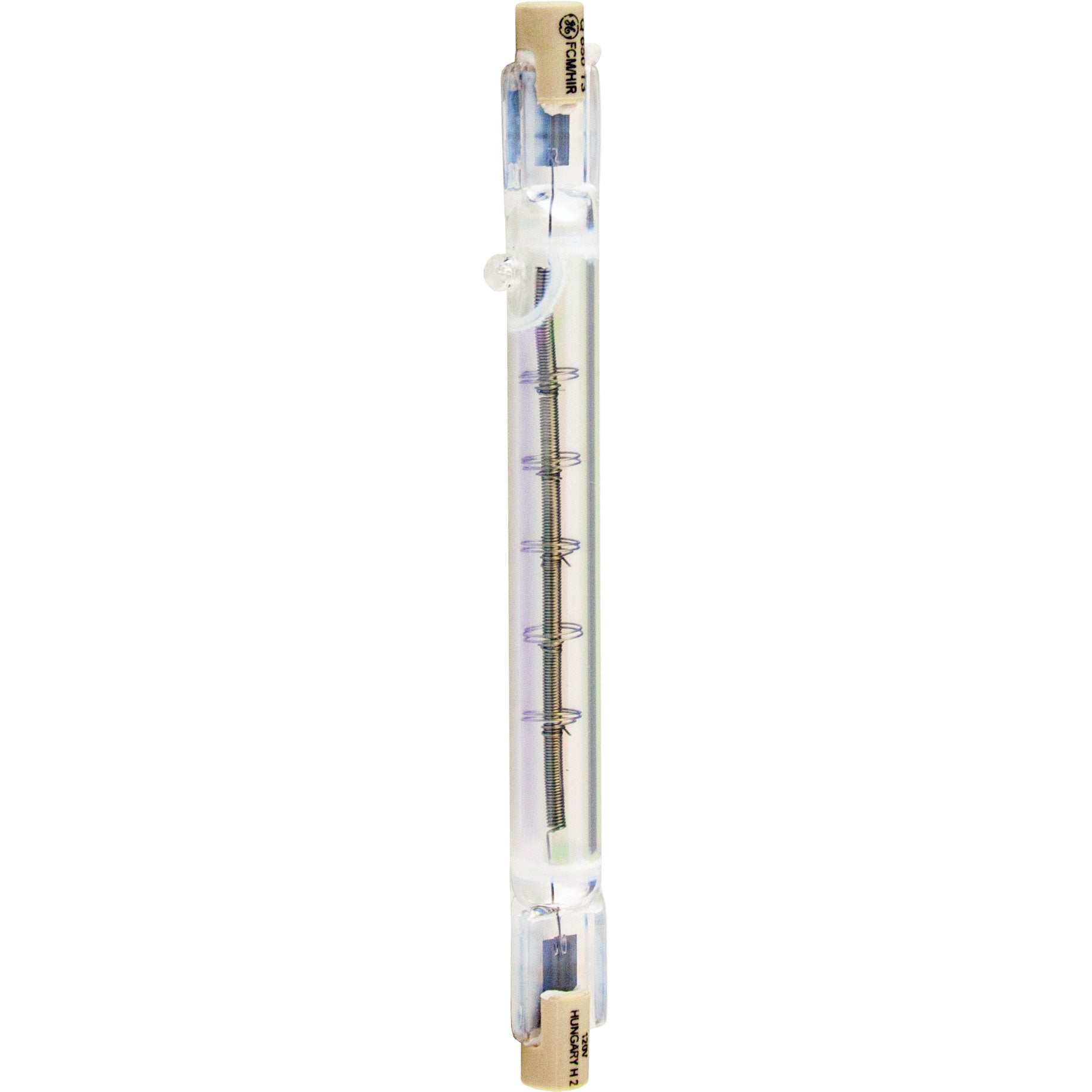

FCM ANSI Code

Electrical Specifications
Amps	4
Volts	120
Watts	1000

Photometrics
Color Temperature	3200
Lumens	28000

Physical Characteristics
Base	R7S-12
Bulb Shape	T4
Filament	C-8
Finish	Clear
Light Center Length (LCL)	117.6
Max Overall Length (MOL)	4 11/16

Operating Characteristics
Burn Position	H ± 4°
Life Hours	400

General Information
Lamp Code	FCM
Code Type	ANSI
Specification Reference	ANSI-SR24F2002
