FHD ANSI Code
FHD ANSI is a T2.5 lamp with a G4 base operating at 10 watts and 6 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FHD lamps.

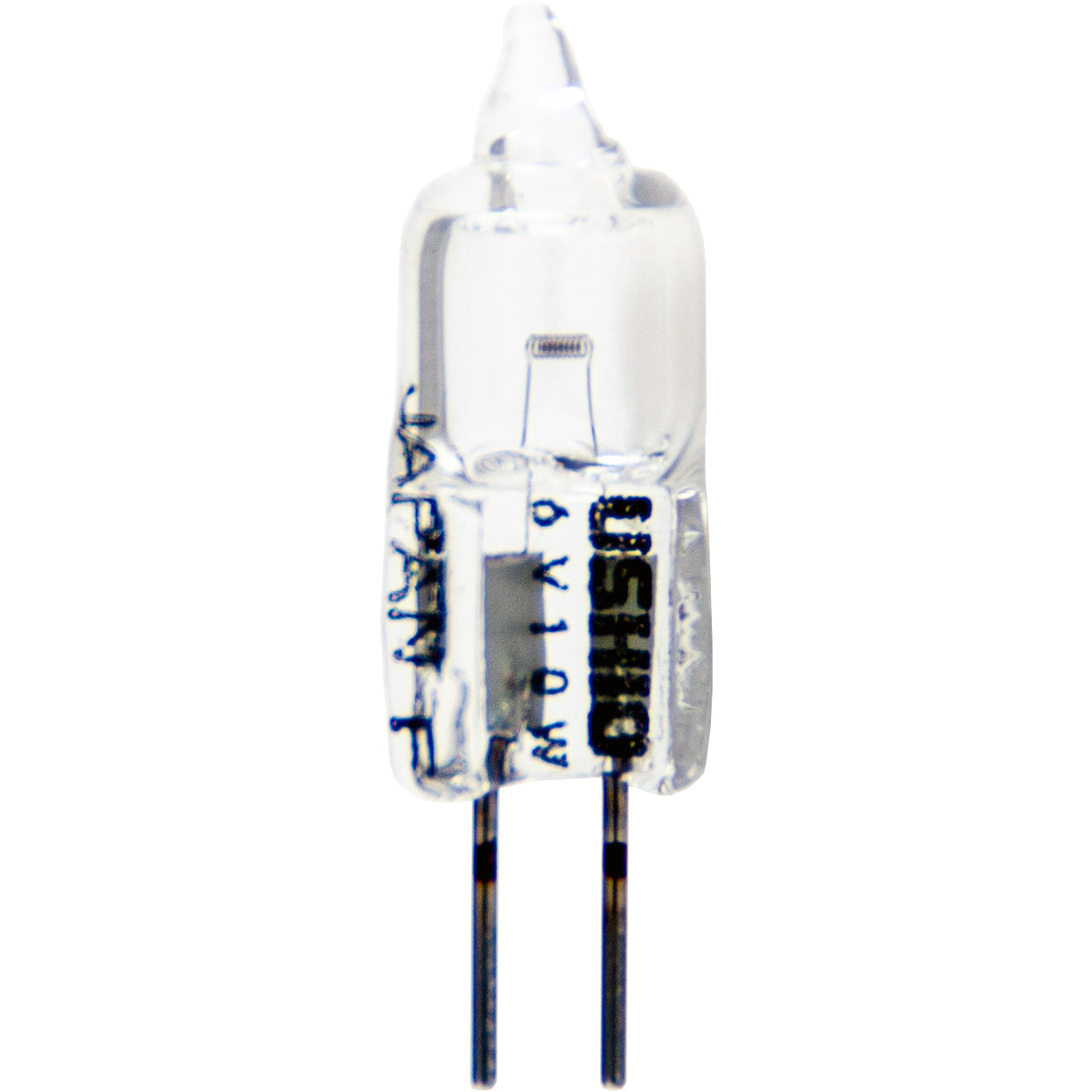

FHD Photograph |
 |
Electrical Specifications | |
| Amps | 1.67 |
|---|---|
| Volts | 6 |
| Watts | 10 |
Photometrics | |
| Candlepower | 12 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 19.5mm |
| Lumens | 200 |
Physical Characteristics | |
| Base | G4 |
|---|---|
| Bulb Shape | T2.5 |
| Filament | C-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 30mm |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 100 |
General Information | |
| Lamp Code | FHD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | ESA, M/29 |
T2.5 Shape | |
 | |
| Diameter Designation | 2.5/8" |
|---|---|
| Glass Diameter | 5/16" (0.3125") |
| Shape Code | T |
| Shape Classification | Tubular |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
G4 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| AMBICO | V-0882 | ||
| American Optical | 624 | ||
| AO Reichert | 624/AO | ||
| AO Reichert | 655C | ||
| ARC (Ashahi Research) | 6V 10W | ||
| Atlas/Thorn | M/29 | ||
| Bulbrite | 761170 | FHD/ESA | |
| Leitz | 050-550 | ||
| Leitz | 050-556 | ||
| Leitz | 400-065 | ||
| Leitz | 700-065 | ||
| Leitz | 907-090 | ||
| Nikon | 76342 | ||
| Olympus | 8-C403 | ||
| Osram Sylvania | 54025 | ESA/FHD 64225 | |
| Panasonic | 10W Color Enhancement Light | ||
| Philips | 261263 | ESA/FHD | Available |
| Philips | 7387 | ||
| Sunlite | 70297 | ESA/FHD | |
| Ushio | 1000531 | FHD/ESA, JC6V-10W | Available |
| NARVA | 55909 | ESA/FHD 7387 6V 10W G4 | Available |
| Osram Sylvania | 54260 | ESA/FHD 64225 | Available |
| Green Energy Lighting (GELCO) | 63065-WB | ESA/FHD | |
| Zeiss | 467253 | Stereomicroscopes (Red & Black) | |
| Rexim, LLC | RSE-41 | ||
| Microlites | 06-010-20 | ||
| Microlites | 06-010-20Z | ||
| Canimpex | 06-010-20 | ||
| Canimpex | 06-010-20Z | ||
| Orbitec | 130202 | H 164225 | |
| Orbitec | 130203 | H 64225 PH | |
Equipment Used In | ||
| Brand | Model | Type |
| AO Reichert | 655C | |
| AO Reichert | Lensometer | |
| AO Reichert | L150 | |
| AO Reichert | Microscope | |
| AO Reichert | 623 | |
| AO Reichert | Series 150 | |
| AO Reichert | 624 Lensometer | |
| AO Reichert | Lensometer | |
| ARC (Ashahi Research) | ARC 3000 (2 lamps) | |
| ARC/Satter | PC-50 | |
| ARC/Satter | ARC-3000 | |
| American Optical | L150 | |
| American Optical | 624 | |
| American Optical | Microscope | |
| American Optical | Series 150 | |
| American Optical | 623 | |
| BFW | Halogen-3 Headlight | |
| Eichner | KL-2020 | |
| Goko | TC-301 Telecine-Player | |
| Goko | TC-302 Telecine-Player | |
| Kyocera | Firepower 3000 | |
| Leitz Wild | WS | Stereo-Microscope |
| Microform Technology | GIZMO | |
| Microscot | Portavue | |
| Microscot | Pentabox | |
| Motion Tech | Executive | Microfilm |
| Motion Tech | Agent | Microfilm |
| Motion Tech | Portable 79 | Microfilm |
| Nikon | 76342 | |
| OCE Industries | 3529 | |
| OCE Industries | 3529 Microfilm | |
| Olympus | CHA | |
| Olympus | OL8-C403 | |
| Olympus | 624 | Medical |
| Olympus | LSH | |
| Oriel | 6318 | |
| Pacemark | VL/1020 | |
| Pacemark | VL/2100 | |
| Realist | Executive | Microfilm |
| Realist | Viking | Microfilm |
| Realist | FE 100 | Microfilm |
| Realist | Technician | Microfilm |
| Realist | Educator | Microfilm |
| Realist | Agent | Microfilm |
| Zeiss | 3800-75-7880 | |
| Zeiss | 91-01-54 | |
| Zeiss | SR | |
| Zeiss | 1000 | |
| Zeiss | 14 Standard | |
| Zeiss | Stemi ID-02 | |
| Zeiss | SV-8 | Stereomicroscope |
| Zeiss | 18 Standard | |
| Zeiss | KF Standard | |
| Zeiss | DR | |
| Zeiss | 2000 | |
| Zeiss | SV-11 | Stereomicroscope |
| Zeiss | SV-6 | Stereomicroscope |
| Zeiss | 16 Standard | |
| Zeiss | Stemi 2000 | |
| Zeiss | Stemi 1000 | |
| Zeiss | D Stereomicroscope | |
| Zeiss | 38-61-08 | |
| Zeiss | DRC | |
| Zeiss | LAB-06 Microscope | |
