G6T5 UVC Germicidal Code

G6T5 UVC Germicidal is a T5 lamp with a G5 base operating at 6 watts . It produces a UVC spectrum output. It has a Clear finish. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for UVC Germicidal G6T5 lamps.

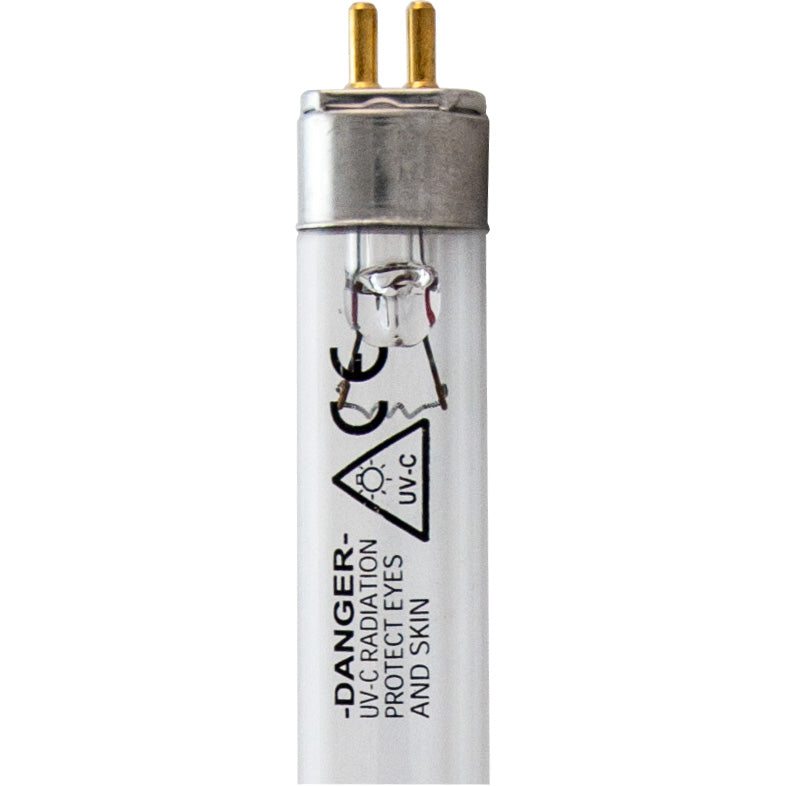

G6T5 Photograph

G6T5

Electrical Specifications

Amps0.16
Watts6

Photometrics

SpectrumUVC

Physical Characteristics

BaseG5
Bulb ShapeT5
FinishClear
Max Overall Length (MOL)9"
Diameter0.63"

Operating Characteristics

Burn PositionAny

General Information
Lamp CodeG6T5
Code TypeUVC Germicidal

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Atlantic Ultraviolet05-1109-RG6T5
EikoG6T5
General Electric15873G6T5
Light SourcesLTC6T5
LightTechLTC6T5
Osram Sylvania23399G6T5/OF
Philips244855TUV 6W
Sankyo DenkiG6T5
Ushio3000015G6T5
HikariGL-G6T5G6T5
American UltravioletGML195G6T5
Norman LampsG6T5
Norman LampsG4T5
Osram Sylvania0002216G6 T5
Hybec Corporation25711G6T5

Equipment Used In

BrandModelType
American Ultraviolet CE-6-2H
American Ultraviolet UFR-6-H
American Ultraviolet UFA-6-H
American Ultraviolet CE-6-H
American Ultraviolet UF-6-H
Aquanetics Systems Aquanetics 6
Aquawinner UV S212T5
Atlantic Ultraviolet Biolux 6 Watt Strip Fixture
Atlantic Ultraviolet Biolux NO6GS Stand Fixture
Atlantic Ultraviolet Biolux NO6G Handheld Fixture
Champ Design CUV6
Charm CUV6
Cole-Parmer UX-09814-27
Crystal Clear CQE-UV-00101
Crystal Clear CQE-UV-03101
Ionic Breeze Desktop Air Purifier w UV Protection
Ionic Breeze Ionic Breeze Car Air Purifier Model GP
Purely UV Products PUVLB506
Sharper Image Desktop Air Purifier w UV Protection
Sharper Image Ionic Breeze Car Air Purifier Model GP
Spectroline BLE-6254S
Spectroline EF-160C
Spectronics BLE-6254S
Tropical Marine Centre Pond Clear Advantage UV6
UVC-Lighting D212T5
UVC-Lighting UV1011
UVC-Lighting S212T5
Ultraviolet Products (UVP LLC) UVAL-58 Mineralight Hand Held Short & Midwave UV
Vecton UV Pond Clear Advantage UV6

G6T5 may also be listed as:
4DA16 GRAINGER34-0013-01-UVP0002216 SYLVANIA6032GL IWASAKI
6032GL STANDARDPRO007856-XG1068-G5-16X226-6W-DANGER-UVC ORBITEC007856/6W ORBITEC007856/42V/6W/G5 ORBITEC
007856/42V/6W ORBITEC007856/XG1068/G5-16X226-6W-DANGER-UVC ORBITEC007856 ORBITEC7856 ORBITEC
8596.76 CGS10809 STANDARDPRO15873-SKU GENERAL-ELECTRIC15873 GENERAL-ELECTRIC
020010 NARVA23375 OSRAM23375 SYLVANIA24485-5 PHILIPS
41302 EIKO41302 UPC89151 IWASAKI244855 PHILIPS
465750U MICROLAMP3000015 USHIO62364527 PHILIPS302364527 SPECIAL-INDUSTRIAL-LIGHTING
04613523375 SYLVANIA031293413024 EIKO048777247006 UPC69549108097
69549108097UPC STANDARDPRO8711500623645 PHILIPSBLE-6254-S SPECTRONICSBLE-6254S SPECTRONICS
BLE6254S SPECTRONICSCF/LT/6W/UV/C NARVACF/LT/6W/UVC NARVAF/9INCH/T5/G5/6W/UVC
F6T5-GL-G6T5/6W/0.160A/15.5X211MM/G5/4000H KEOSAN-ENTERPRISEF6T5-GL-G6T5 KEOSAN-ENTERPRISEF6T5-GL KEOSAN-ENTERPRISEF6T5GL-G6T5/6W/0.160A/15.5X211MM/G5/4000H KEOSAN-ENTERPRISE
F6T5GL-G6T5 KEOSAN-ENTERPRISEF6T5GL KEOSAN-ENTERPRISEF6T5UV-CF6T5UVC
FL06T5BGER-G5 LUMIACTIONFL06T5BGERG5 LUMIACTIONFT006GERM BAILEYG-6W-GERMICID-G-5-D16X212-UVC-1.7W-253.7NM
G-6W-GERMICID-G-5-D16X212-UVC-1.7W-253.7NM SYLVANIAG-6WATTG-6WATT-T5 EIKOG-6WATT-T5 GUERRA
G/6/T5 CANIMPEXG/6/T5 MICROLITESG/6W/T5G/6W/T5/9-INCH
G/9INCH/T5/G5/6WG/9INCH/T5/G5/6W/42VG/9INCH/T5/G5/6W/G6T5G/9INCH/T5/G5/6W/LOW-OZONE/G6T5
G/9INCH/T5/G5/6W/LOW-OZONE/G6T5L2PG/9INCH/T5/G5/6W/LOW-OZONE G6T5L2PG/9INCH/T5/G5/6W/UVCG/9INCH/T5/G5/6W/UVC/42V
G/226MM/T5/G5/6WG/230V/6W/E27/T10/150MMMOL/TUV6W PHILIPSG/TUV/6W/G6T5 PHILIPSG5-16X212-6W-DANGER-UVC/XG1068/007856 ORBITEC
G5-16X212MM-6W-DANGER-UVC/XG1068/007856 ORBITECG5-16X226-6W-DANGER-UVC ORBITECG6T5-6W-G5 USHIOG6T5-6W GENERAL-ELECTRIC
G6T5-G5G6T5-G6T5G6T5-OFG6T5-OF/23375 SYLVANIA
G6T5-OF/04613523375 SYLVANIAG6T5/1/24G6T5/6W-GERMICIDAL HIKARIG6T5/6W/GERMICIDAL
G6T5/G5 USHIOG6T5/GERMICIDAL-G6-T5 LAMPTECHG6T5/OF/23375 SYLVANIAG6T5/OF/04613523375 SYLVANIA
G6T5/OF OSRAMG6T5/PH/G5/EYE STANDARDPROG6T5/UV-B USHIOG6T5 BULB-DIRECT
G6T5 CANIMPEXG6T5G6T5 EIKOG6T5 GENERAL-ELECTRIC
G6T5 HIKARIG6T5 INTERLIGHTG6T5 IWASAKIG6T5 LAMPTECH
G6T5 MICROLITESG6T5 SANKYOG6T5 USHIOG6T5L2P
G6T5OFGERMICID/T5/6W/6000HGERMICIDAL-6-G6T5-1.7-28-PERCENT-6000-24-15873 GENERAL-ELECTRICGERMICIDAL-6W-G6T5-1.7-28-PERCENT-6000-24-15873 GENERAL-ELECTRIC
GL-G6T5-G6T5/6W-GERMICIDAL HIKARIGL-G6T5 HIKARIGL/G6T5 HIKARIGLG6T5-G6T5/6W-GERMICIDAL HIKARI
GLG6T5 HIKARIGRM-0060 USHIOGRM0060 USHIOLMG6T5 LUMIACTION
LT-6WATT-UV-FILTERED-C NARVALT-6WATT-UV-FILTERED-C ORBITECLT/6W/UV/C NARVALT6W-UV-FILTERED-C NARVA
LT6W/UV-C NARVALT6W/UV/C NARVAMERCURY-DISCHARGE/6W/G5/226MM/UVC254NMK/SB-006 AKKUMERCURY-DISCHARGE/6W/G5/226MM/UVC254NMK/SB006 AKKU
MERCURY-DISCHARGE/6W/G5/226MM/UVC254NMK/TUV6W PHILIPSSB-006/MERCURY-DISCHARGE/6W/G5/226MM/UVC254NMK AKKUSB-006 AKKUSB006/MERCURY-DISCHARGE/6W/G5/226MM/UVC254NMK AKKU
SB006 AKKUT5/GERMICID/6W/G5TUV-6/6W/G5/G6T5 USHIOTUV-6/6W/G5 USHIO
TUV-6/G6T5 USHIOTUV-6 USHIOTUV-6T5-6W-250-PK PHILIPSTUV-6W-T5-G5-D16-X-226/3
TUV-6W-T5-G5-D16-X-226/3 PHILIPSTUV-6W-T5-G5-D16-X-226.3TUV-6W-T5-G5-D16-X-226.3 PHILIPSTUV-6W/6W/G5/G6T5 USHIO
TUV-6W/6W/G5 USHIOTUV-6W/G5/G6T5 USHIOTUV-6W/G5 USHIOTUV-6W/G6T5 PHILIPS
TUV-6W/G6T5 USHIOTUV-6W PHILIPSTUV-6W USHIOTUV-6WATT-G-6-T5 PHILIPS
TUV-6WATT PHILIPSTUV/6/6W/G5/G6T5 USHIOTUV/6/6W/G5 USHIOTUV/6/G6T5 USHIO
TUV/6 USHIOTUV/6T5 PHILIPSTUV/6W/6W/G5/G6T5 USHIOTUV/6W/6W/G5 USHIO
TUV/6W/G5/G6T5 USHIOTUV/6W/G5 USHIOTUV/6W/G6T5 PHILIPSTUV/6W/G6T5 USHIO
TUV/6W PHILIPSTUV/6W USHIOTUV6/6W/G5/G6T5 USHIOTUV6/6W/G5 USHIO
TUV6/G6T5 USHIOTUV6 USHIOTUV6T5 PHILIPSTUV6W-G5 PHILIPS
TUV6W/6W/G5/G6T5 USHIOTUV6W/6W/G5 USHIOTUV6W/G5/G6T5 USHIOTUV6W/G5 PHILIPS
TUV6W/G5 USHIOTUV6W/G6T5 PHILIPSTUV6W/G6T5 USHIOTUV6W PHILIPS
TUV6W USHIOXG-1068-G5-16X226-6W-DANGER-UVC ORBITECXG-1068/G5-16X226-6W-DANGER-UVC ORBITECXG-1068 ORBITEC
XG1068-G5-16X226-6W-DANGER-UVC ORBITECXG1068/6W ORBITECXG1068/42V/6W/G5 ORBITECXG1068/42V/6W ORBITEC
XG1068/G5-16X226-6W-DANGER-UVC ORBITECXG1068 ORBITEC
