Lesco CUREMAX Chamber Lamp Curing System

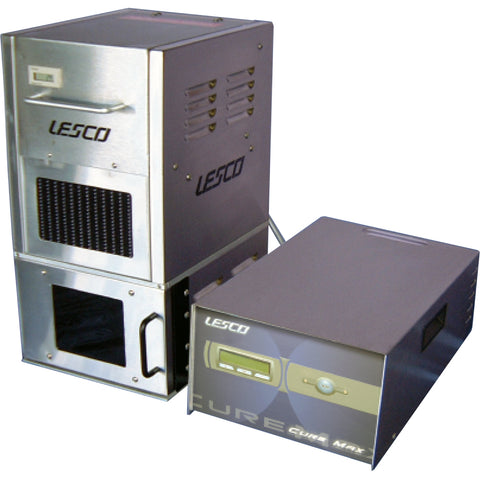

The newly developed LESCO CureMAX system provides the highest intensity UV light for uniformly curing a large area. This precision exposure is achieved by our unique design. Utilizing a shutter, this device can control the dosage of exposure applied to your parts. The maximum part size is 7.75"L x 7.75"W x 6.0"H, for the rugged standard stainless steel curing chamber, and this chamber can be customized to accommodate larger sized parts. Clean room ready, the CureMAX System uses an arc lamp with as reflector to achieve low maintenance costs, and the removable Lamp Module ensures you can always have a spare bulb to prevent critical downtime. Cooling fans are provided to obtain a controlled curing environment for the lamp/reflector assembly and the Power Control Module (PCM). Also available with an optional extra-cooling parts chamber. The shutter can be activated by the provided footswitch or the front panel GO button, in either a timed automatic mode or a manual shutter footswitch mode. A computer can also control the unit via an I/O connection.

Technical Specifications

• Cure chamber: 8"W x 8"L
• Part height: up to 6" standard
• Lamp module: Removable, irradiator built-in
• Lamp type: High intensity UV Arc
• Lamp intensity: to 500W/inch
• Intensity uniformity: +/- 10% (5% typ.) across entire part stage.
• Safety interlocks: Chamber door interlocked to shutter
• Interface. SMEMA compatible
• Controls/indicators: Auto timer control, hour meter, Timer/Manual selector, shutter actuating footswitch, PC I/O
• Electrical: 110-240Vac, 50/60Hz selectable

System includes

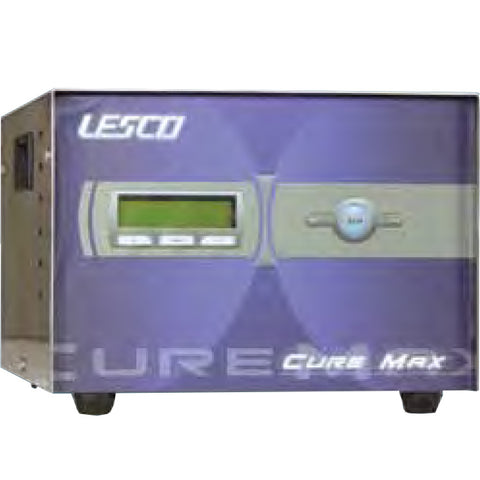

SEM1046-POWER CONTROL MODULE (PCM) includes:

• Digital PCM W/ Solid State Ballast
• Stainless Steel Cabinet with built-in cooling fan with rear exhaust
• Manual or Timed Cure Cycle Mode
• Remote operation using footswitch or I/O interface connector
• Dimensions 15-1/2" L x 10"W x 7-1/2"H

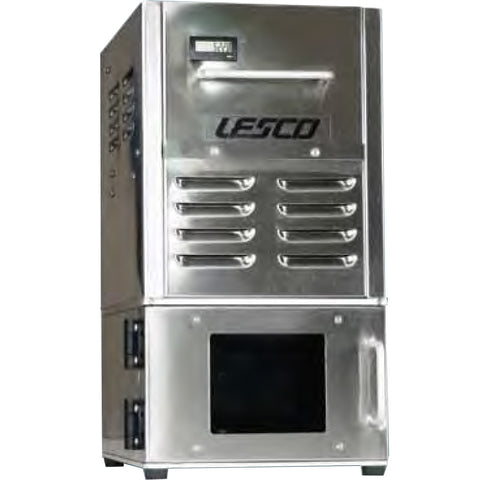

SEM1038-IRRADIATOR includes:

• SEM1044 Cure Chamber with enhanced cooling
• Stainless steel construction
• Modular bulb/reflector for easy bulb access
• Accumulating hour meter to record lamp usage
• Solid Door with UV exposure safety interlock
• Air-cooled bulb and jacketed cure area with ventilation
• Adjustable cure surface to accommodate assemblies up to 5" in height
• 8"x 8" uniform cure area
• Crating
• Dimensions 14" L x 9-3/4"W x 18-1/2"H

About Lesco UV

Based in California, Lesco UV is a manufacturer of ultraviolet curing equipment. The company offers a full line of traditional and LED curing devices, including conveyors, chambers, spot curing, and handheld/surface equipment. Lesco UV is one of the premier names in the ultraviolet curing industry.
