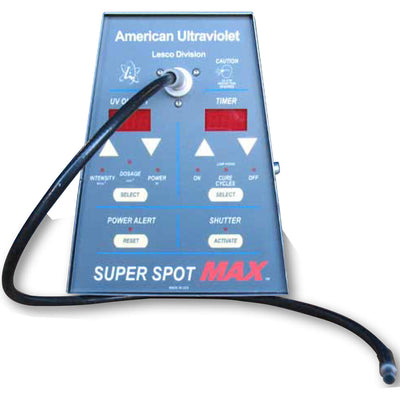

Lesco SuperSpot Max HP
The Super Spot MAX HP (High Power) is built on the same hardware and software platforms as the Super Spot MAX, however, it is designed to deliver the most extreme UV and visible spot area energy and intensity ever achieved. The Super Spot MAX HP is recommended for very high speed process lines and specialty applications that require either extreme intensity or split second cure times with superior cure strength. It is particularly useful for full-automated applications. Because of the extreme intensity, we only recommend the use of FibreFire™ fiber optic UV delivery systems with the Super Spot MAX HP.
To learn more about the Super Spot MAX, including technical specifications, please visit our technical library where you can download and print literature.
Standard Features (Super Spot MAX HP)
- UVA Peak (@315-400nm) 30,000 mW/ cm2; UVA Rates (@315-400nm) 25,000 mW/cm2; Total Intensity (UVA, B, C, V) 45,000+ mW/cm2
- Spectral Output: VIS/UVA/UVB/UVC; major peaks @ 365nm, 254nm, 302nm, 312nm and 405nm; filterable
- 8.5 x 11" x 13.5" deep; 20 lbs.
- 200W DC short arc
- High temperature FO (FibreFire™)
About Lesco UV
Based in California, Lesco UV is a manufacturer of ultraviolet curing equipment. The company offers a full line of traditional and LED curing devices, including conveyors, chambers, spot curing, and handheld/surface equipment. Lesco UV is one of the premier names in the ultraviolet curing industry.
| Dimensions | 8.5" x 11" x 13.5" |
|---|---|
| Expected Bulb Life Hours | 2000 |
| UV Output | 15-25W/cm2 |
| Warranty | 1 Year |
| Brand | Lesco UV |
|---|---|
| MPN | VSM3002-HP |
| Model | SuperSpot Max HP |
