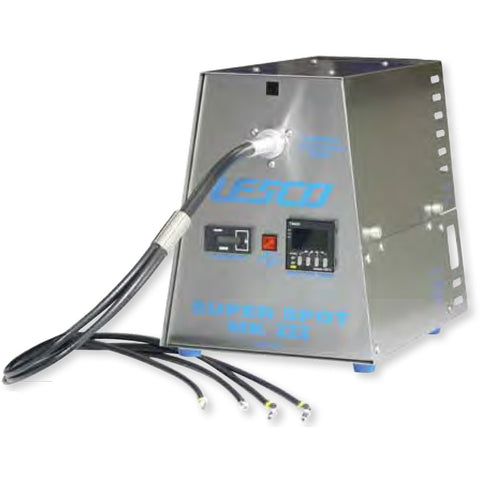

Lesco SuperSpot MKIII

The MKIII from the Lesco division of American Ultraviolet is a precision-built ultraviolet light source designed to deliver an intense, concentrated and regulated spot of UV and visible energy through a light guide. This superior optical package is ideal for those critical curing processes that require the ultimate power from a 100-watt platform and can be used for curing adhesives, coatings, inks and other UV curable materials whose physical location dictates the use of a light wand in the UV delivery system.

To learn more about the SuperSpot MIII, including technical specifications, please visit our technical library where you can download and print literature.

Standard Features

• UV Output: 20,000 mW/cm2, peak (@315 - 400 nm), 15,000 mW/cm2, rated (@315 - 400 nm), over 25,000 mW/cm2 total (UVA, B, Visible)
• Spectral Output: VIS/UVA/UVB/UVC with factory preset centered @ 365 nm. (UVA)
• 12.5" x 8"; Height: 10"; 14 lbs 10 oz.
• 100W DC mercury vapor short-arc lamp

System includes

• Stainless steel enclosure
• Quickset shutter timer with LCD countdown display
• Accumulated lamp usage hour meter
• Manual/Timer shutter operation switch
• Footswitch activated shutter control
• Solid state bi-level power supply
• Air-cooled lamp and power supply with ventilation protection
• IR filter for less heat
• One pair of UV safety eyewear
• Optical Feedback VUM1021
• Selectable 120VAC/ 220VAC 50/60HZ

About Lesco UV

Based in California, Lesco UV is a manufacturer of ultraviolet curing equipment. The company offers a full line of traditional and LED curing devices, including conveyors, chambers, spot curing, and handheld/surface equipment. Lesco UV is one of the premier names in the ultraviolet curing industry.
