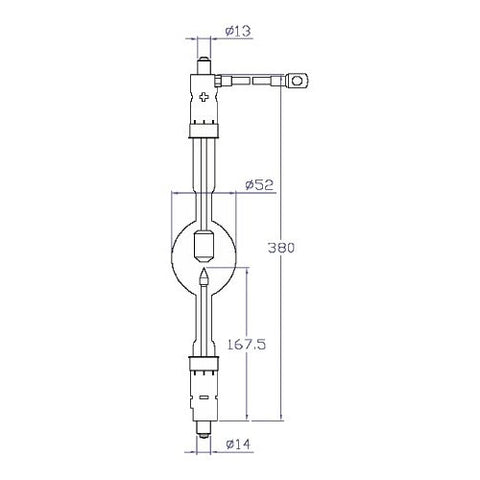

ASL XM3000H/VC/G - 3000W - 29V Short Arc Xenon Lamp
This product is an Advanced Specialty Lighting XM3000H/VC/G short arc xenon bulb.
ASL XM3000H/VC/G is an analog short-arc lamp suitable for use in the following projectors: STRONG INTERNATIONAL Xenon Gladiator III.
Replacement for LTI LTIX-3000W-H LTIX-3000W-HEH, OSRAM XBO 3000W/H OFR, Christie CXL-3000 CXL-30R, USHIO UXL-3000HR, Yumex YXL-30R YXL-30RRG111, Superior Quartz SX30001.
Cross Reference Part Numbers
- LTI LTIX-3000W-H LTIX-3000W-HEH
- OSRAM XBO 3000W/H OFR
- Christie CXL-3000 CXL-30R
- USHIO UXL-3000HR
- Yumex YXL-30R YXL-30RRG111
- Superior Quartz SX30001
Equipment Used In
- Strong International Xenon Gladiator III
About Advanced Specialty Lighting
Founded in 2003, Advanced Specialty Lighting manufactures lighting for a wide range of applications. These include microscopes, medical equipment, graphic scanners, commercial film projectors, skytracker spotlights, and solar simulation, among others. The company is headquartered in Chicago, Illinois, with manufacturing plants in the United States, China, and Poland.
| Anode (+) Base (mm) | 27-13 |
|---|---|
| Burn Position | H±20° V±20° |
| Cathode (-) Base (mm) | 27-14 |
| Current Control Range (A.D.C.) | 80-110 |
| Lamp Type | Short Arc Xenon |
| Lumens | 113000 |
| Rated Current (A.D.C.) | 100 |
| Volts | 29 |
| Warranty Hours | 2050 |
| Watts | 3000 |
| Brand | Advanced Specialty Lighting |
|---|---|
| MPN | XM3000H/VC/G |
| HS Code | 853941 |
There are currently no documents for this product.
There are currently no videos for this product.
