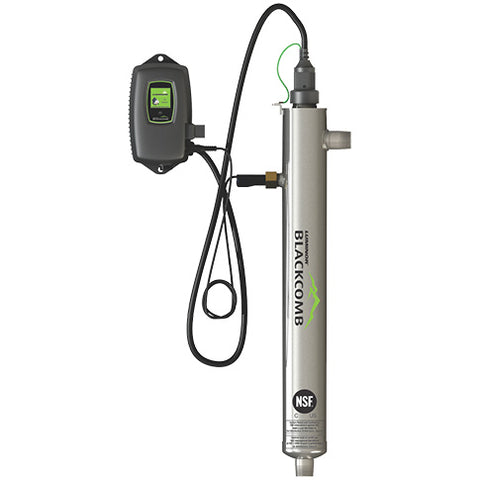

Luminor LB6-02A-12V Blackcomb UVC Water Purifier - 1.6 GPM - 1/2" FNPT Inlet/Outlet - 12 VDC - NSF Class A

Luminor LB6-02A-12V Blackcomb UVC Water Purifier - 1.6 GPM - 1/2" FNPT Inlet/Outlet - 12 VDC - NSF Class A

10 Year Warranty
  • $1,022.95
  • $1,202.60
Usually ships in 3-4 days.

For a comprehensive UV water treatment system, consider LUMINOR's NSF Class A BLACKCOMB 6.1 line.

Incorporating a true 254nm discrete UV monitor, this BLACKCOMB series offers continuous monitoring for 24-hour peace-of-mind. Using Teflon technology for reduced fouling, these systems also allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging.

A color user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The UV system also incorporates QR codes to access lamp change information and videos via web access. The controller is a constant current electronic power source and is housed in a splash-proof case that comes standard with a "future-proof" expandability port for future upgrades or options.

Features

  • Flow rates stated at NSF Class A dose of 40 mJ/cm2 at 70% UVT
  • System includes 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoidready capabilities (optional modules required)
  • Color user interface with full diagnostics and warnings including QR codes
  • IEP (infinite expandability port) for future upgrades and options
  • 304 stainless steel (BLACKCOMB) / 316L stainless (BLACKCOMB-HO), axial flow reactors allow for simple lamp/sleeve service
  • All systems include integral flow restrictor

SPECIAL NOTE: Due to the stringent testing protocol of the NSF Class A standard it is IMPERATIVE that water quality parameters be met before the UV unit is installed. Please refer to Installation Guidelines for specific parameters. A UVT (transmittance) test MUST also be performed on the raw water as this test will provide critical data that could effect system performance. LUMINOR will perform UVT tests at no charge on any water sample that is sent in for analysis (prepaid samples will NOT be accepted). Please contact us for more information.

About Luminor Environmental

Based in Canada, Luminor Environmental specializes in ultraviolet water treatment solutions for residential, light commercial, commercial/industrial, and municipal applications. The company strives to provide its customers with industry-leading service, support, product, and warranty. Luminor distributes UV water purification solutions to over 55 countries with hundreds of thousands of installations.

CertificationsNSF Class A
Construction Material304L Stainless Steel
Dimensions2.5" x 10.3"
GPM1.6
Inlet/Outlet1/2" FNPT
Spectrum254nm
Volts12 VDC
Warranty10 Years

ProLampSales Order Code8044819316990
BrandLuminor
SeriesBlackcomb
MPNLB6-02A-12V
HS Code842121
