Philips 137265 TUV PL-L 35W/4P HO - 35W - 2G11 Base - 225mm - High Output - 25ct

This lamp is a Philips TUV PL-L 35W/4P HO, 2G11 base, high output ultraviolet germicidal lamp.

TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Benefits

• Security of effective disinfection over the useful lifetime of the lamp
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

Features

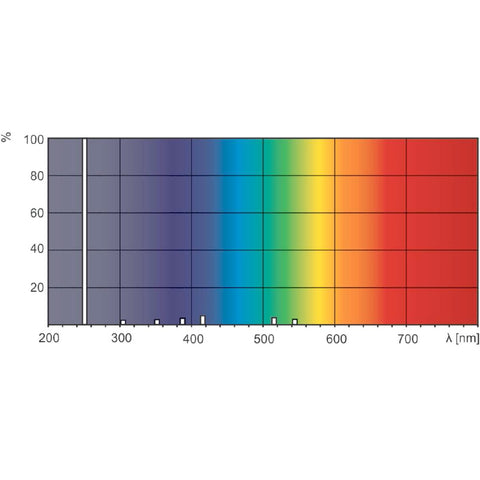

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
• High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC

Applications

• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond and process water units
• In-duct air treatment units
• Stand alone air purifiers
• Air disinfection systems in for example hospitals, universities and laboratories

Warning & Safety

A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

Lamp contains mercury. Manage in Accord with Disposal Laws.

DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.

Cross Reference Part Numbers

• Atlantic Ultraviolet 05-0606 TUV PL-L 35W
• Light Sources LTC35WHO/2G11
• Light Sources LTCQ35WHO/2G11
• LightTech LTC35WHO/2G11
• LightTech LTCQ35WHO/2G11
• Philips 137265 TUV PL-L 35W/4P HO

Equipment Used In

• ClorDiSys Lantern
• Lumalier UV Air Disinfection EDU-435
• PetAirapy 6-Zone360
• PetAirapy Zone360X
