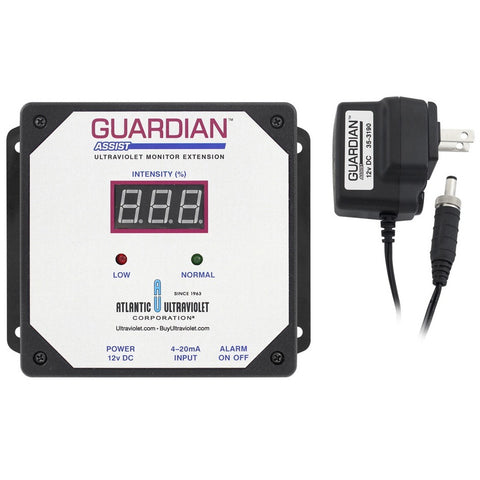

Atlantic UV 30-1014 Guardian Assist Ultraviolet Monitor Extension

This product is an Atlantic Ultraviolet 30-1014 GUARDIAN ASSIST Ultraviolet Monitor Extension.

The GUARDIAN ASSIST is designed to remotely indicate the intensity level displayed on the GUARDIAN Ultraviolet Monitor.

• The GUARDIAN ASSIST converts a 4-20 mA signal from the GUARDIAN Ultraviolet Monitor to an intensity level displayed on the monitor face. A 4 mA signal would read 0 and a 20 mA signal would read 120.
• The GUARDIAN ASSIST intensity reading will be the same as the GUARDIAN Ultraviolet Monitor +/- 2%.

When the GUARDIAN Ultraviolet Monitor detects a germicidal ultraviolet energy level which is acceptable:

• The GUARDIAN ASSIST will light a green LED on the front of the instrument panel with the heading "NORMAL."
• The Display should read between 30 and 120.

When the GUARDIAN Ultraviolet Monitor detects a germicidal ultraviolet energy level which is unacceptable:

• The GUARDIAN ASSIST will light a red LED on the front panel with the heading "LOW."
• The display should have a reading below 30.

Internal Audio Alarm:

• When the GUARDIAN Ultraviolet Monitor detects a germicidal energy level is unacceptable, an audio alarm will sound on the GUARDIAN ASSIST. The alarm can be disabled by an ON/OFF switch on the front of the unit.

About Atlantic Ultraviolet

Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
